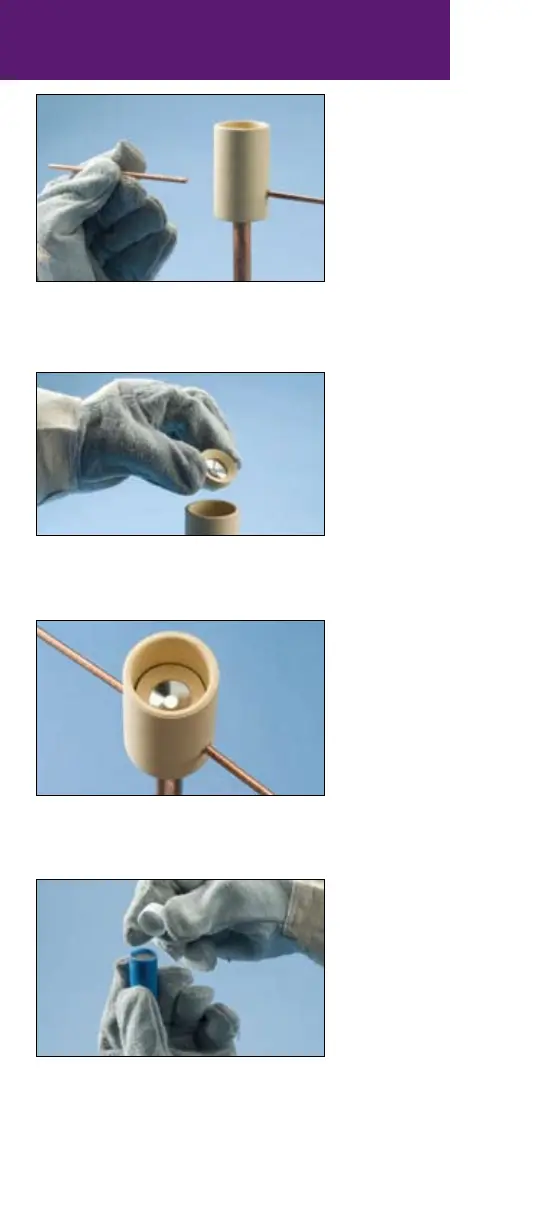

Fig. 7
Insert the conductors and position them for the
connection.
Fig. 8
Place the steel disk into the CADWELD
®
ONE SHOT
with the concave side facing up.
Fig. 9
Ensure that the steel disk is properly seated inside
the CADWELD ONE SHOT.
Fig. 10
Next, take the tube of welding material included in
the CADWELD ONE SHOT package and remove the
lid over the crucible.
30
The CADWELD
®
ONE SHOT Process
