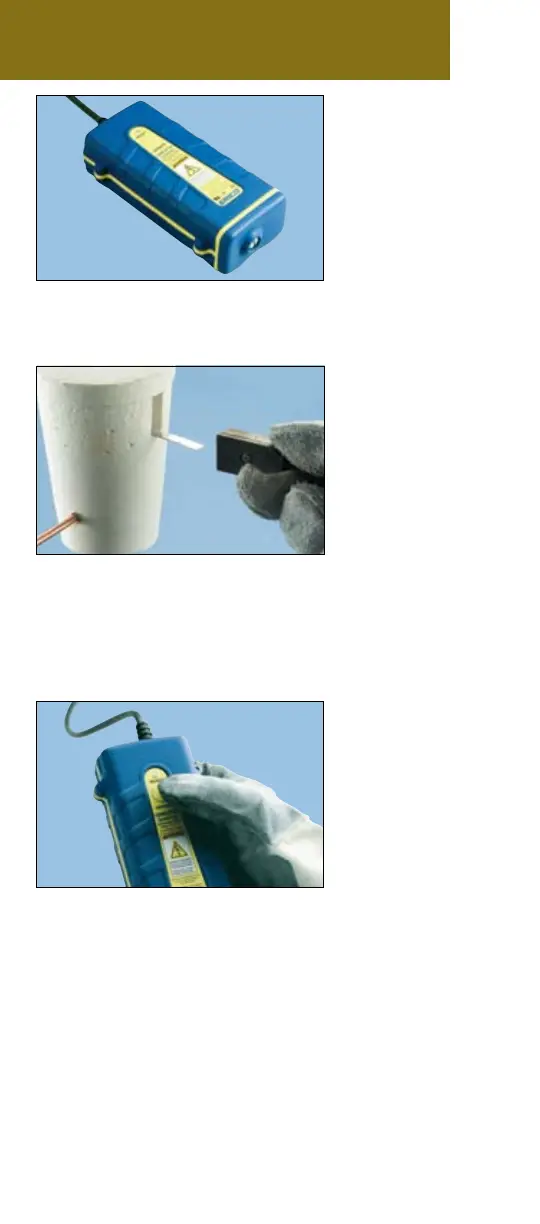

Fig. 11
Battery powered control unit.
Fig. 12
Place the ignition strip into the control unit
connector. Remove or protect fire hazards in
close proximity to the connection. Advise nearby
personnel of welding operations in the area.
Fig. 13
Using the control unit, press the button and hold,
while you observe the “ready” indicator light. A
green light will blink for a few seconds and then
will change to a constant light. At this time, the unit
will send a charge to the ignition strip. The ignition
strip will spark inside the metal cup, activating the
CADWELD
®
PLUS exothermic reaction.
Allow approximately 30 seconds for completion of
the reaction and solidification of the molten
material.
36
The CADWELD
®
PLUS ONE SHOT Process
