The CADWELD

PLUS ONE SHOT Process

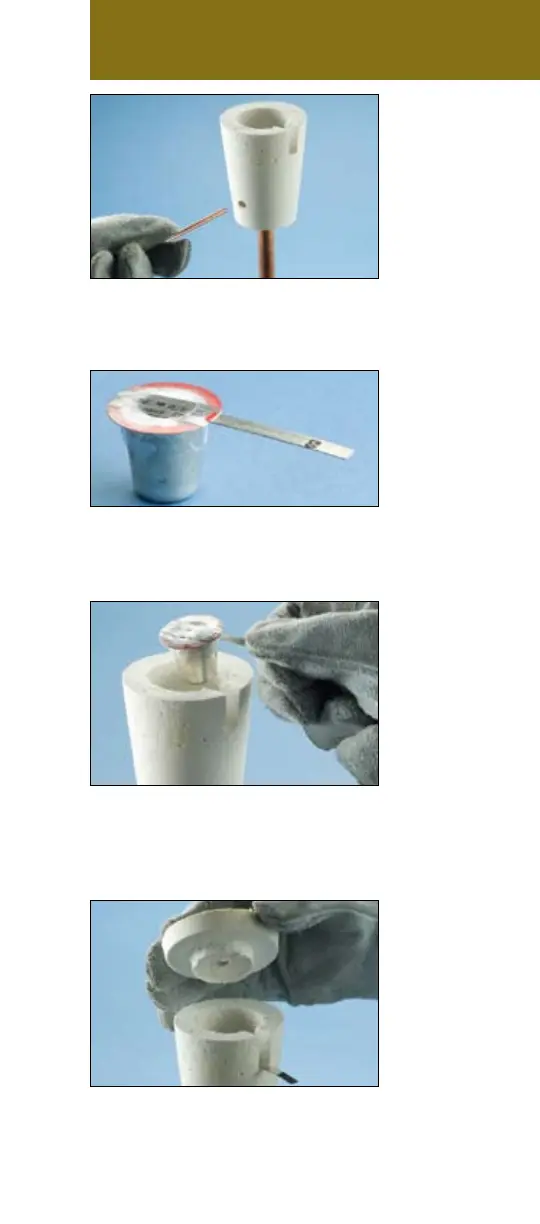

Fig. 7

Insert the conductors and position them for the

connection.

Fig. 8

Inspect the cup to ensure it is tightly sealed and the

ignition strip is securely attached to the seal.

Fig. 9

Place the welding material cup into the top of the

mold. Make sure the ignition strip nests into the

recess on the top edge.

Fig. 10

Place the ceramic lid onto the mold.
