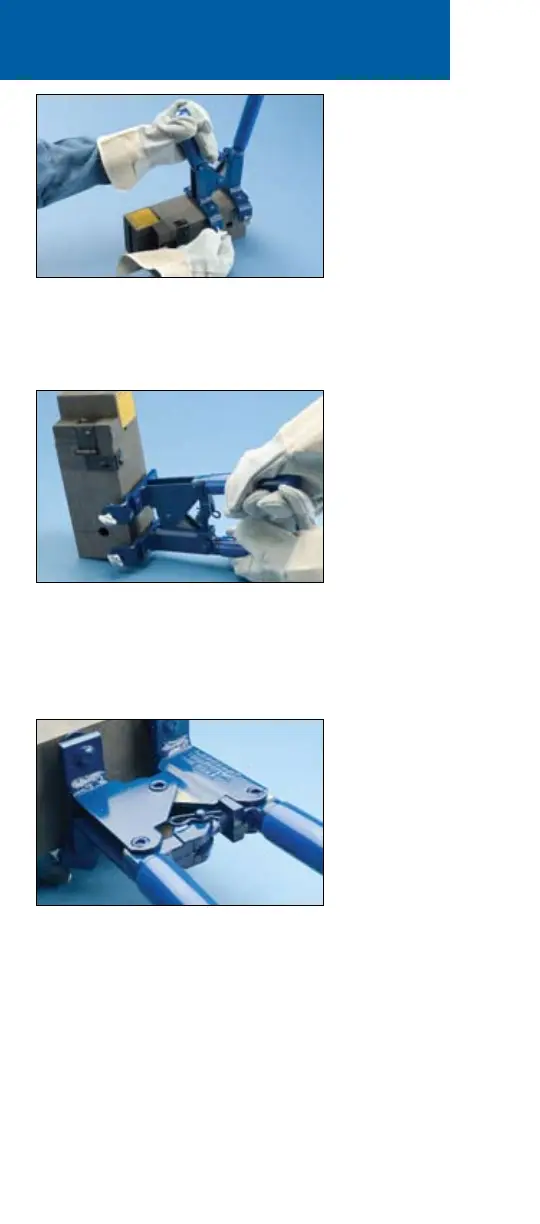

Fig. 7
Tighten the clamp thumbscrews onto the mold.
Fig. 8
Close the grips to tightly lock the mold. Check for
an appropriate seal on the mold.
Fig. 9
If the mold does not seal properly, make adjustments
to tighten/loosen the handle clamp.
4
The CADWELD
®
Process
