Fig. 4

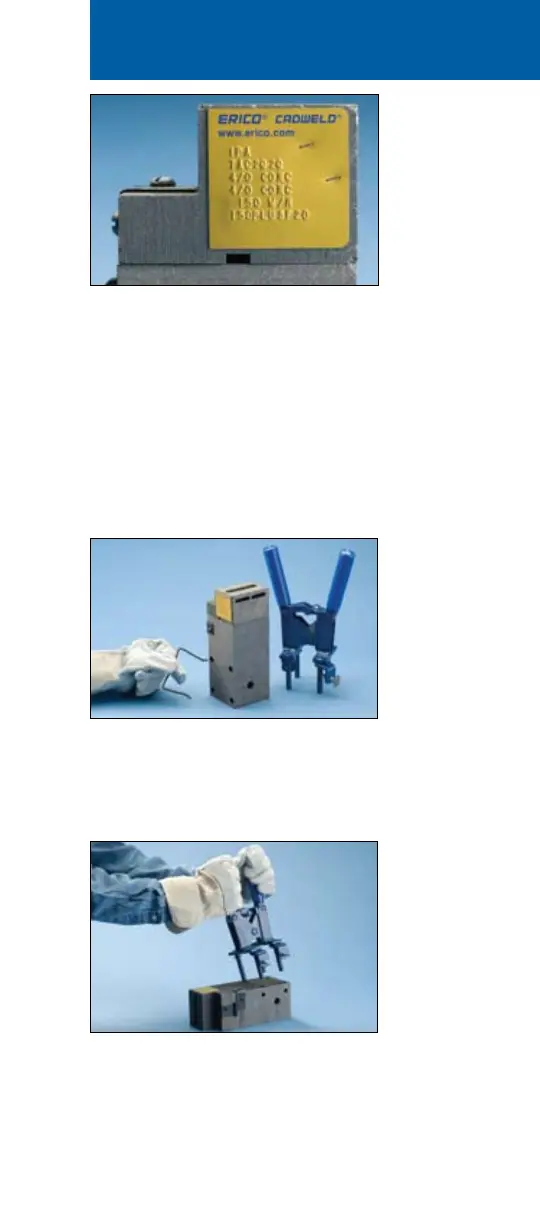

Inspect the mold ID tag to ensure that it corresponds
to the application, indicated by the:
1. mold part number
2. conductor size
3. welding material required
4. other materials required
The mold must be correct for the conductor size and
application. DO NOT MODIFY MOLDS.
Fig. 5
Remove the small wire bracket which is used to
temporarily hold the mold together before using.
Set the bracket aside.
Fig. 6
Slide the handle clamp into the pre-drilled holes with
the proper orientation for the thumbscrews.
The CADWELD
®
Process
3
