CD 7012, ISSUE 2, 08/03/2015 12
Ericsson AIR 21/AIR 32 Mounting Instructions

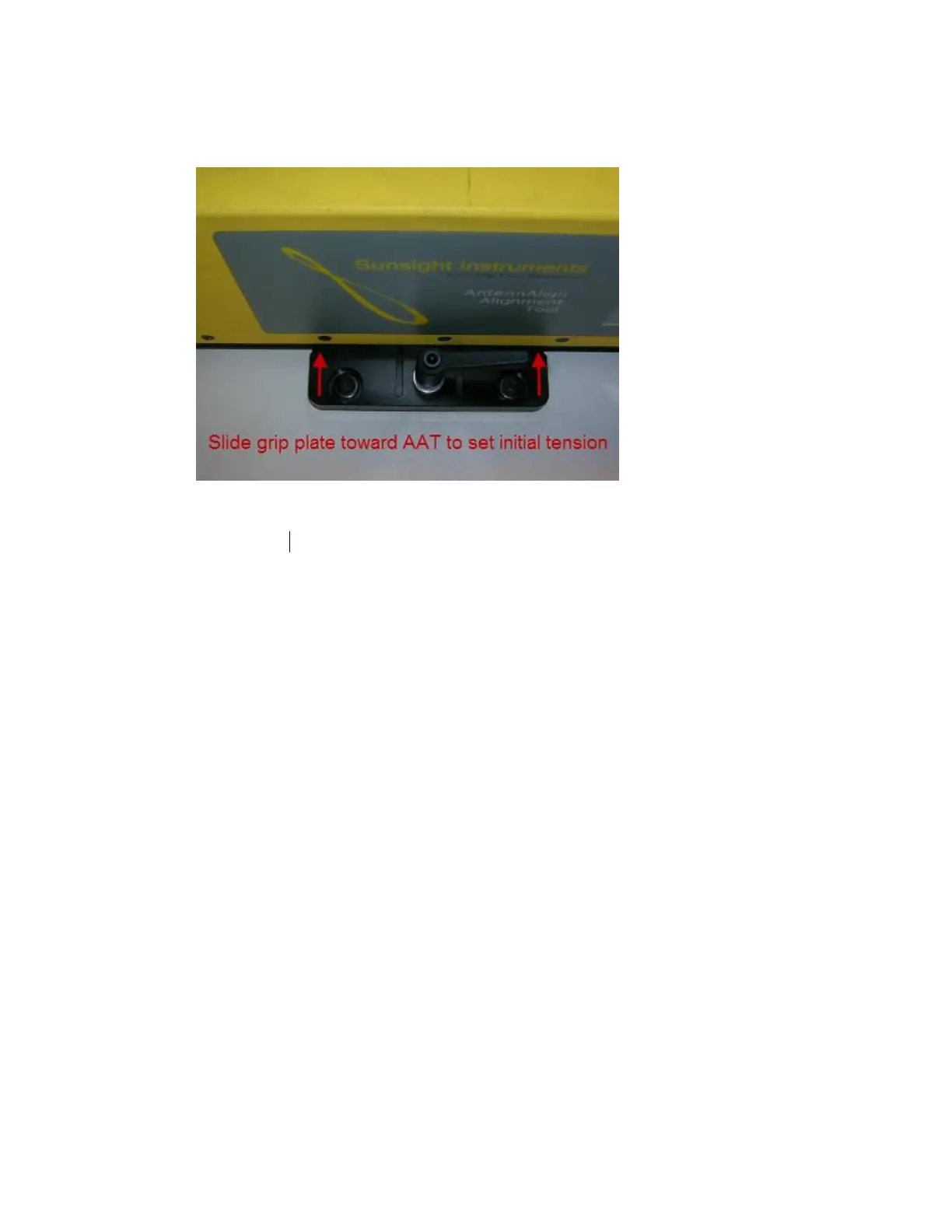

3. Gently slide the grip plate toward the AAT until it makes contact with AAT base. This should
remove any extra clearance or “slop” in the base unit to grip sub-assembly.
4. Slide AAT side-to-side in the grip sub-assembly to determine the grip clamp tension. No play
should be detected between the AAT and the grip clamp and little to no friction should be
felt when the AAT is sliding in the mount.
5. After ensuring that both ends of grip clamp make contact with AAT base, lightly tighten both
hex screws.
6. Carefully slide AAT through grip verifying that -
a. The AAT base and grip do not bind at any point
b. The grip makes full contact with the AAT base and is capable of securely locking the
AAT in place
If the AAT binds in the grip or the lever will not lock the AAT in place, repeat Steps 1-7,
increasing or decreasing the grip clamp tension as necessary.
7. Tighten two hex screws with 1/8” hex key, making sure to not strip hex screws.
8. To “clock” grip lever, lift straight up on lever handle and rotate. Release lever once located
at desired position. The lever can be “re-clocked” to any position desired at any time to
provide necessary clearance.
