Ericsson AIR 21/AIR 32 Mounting Instructions
AAT Grip Adjustment Procedure (first time setup for AIR Mounts)
All top, side and custom mounts for the Sunsight Instruments AntennAlign Alignment Tool are
adjustable. Each mount is initially adjusted to a particular unit prior to shipment. If the AAT becomes
difficult to slide into a mount or new/replacement mounts are purchased, follow these steps to adjust
the mount for proper fit.
Required tool: 1/8” hex key (T-handle is recommended)

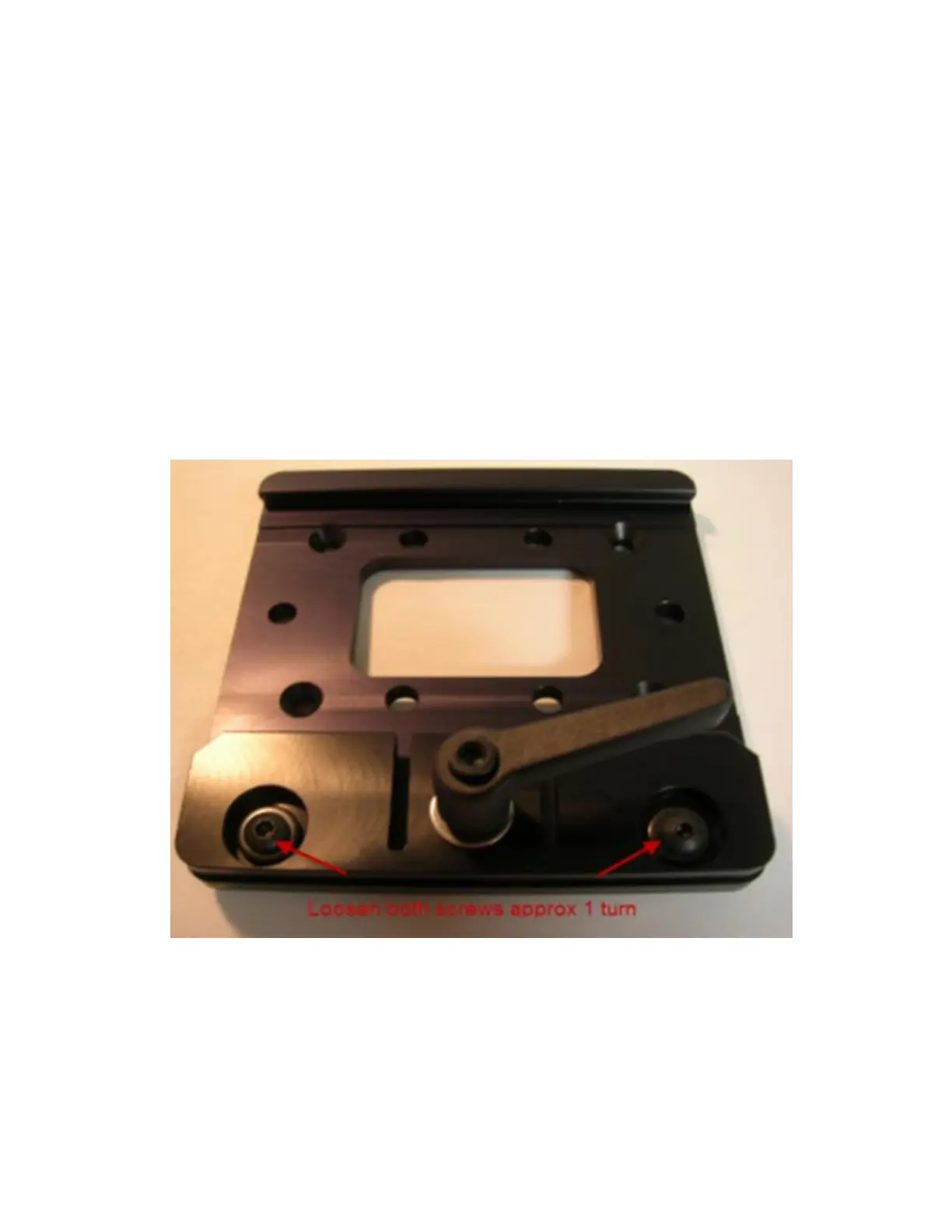

1. Loosen, but do not remove, two hex screws located on either side of the grip lever using a
1/8” hex key. Loosen the grip lever as well.
2. Carefully slide AAT base into grip and make sure that the base is pressed into the fixed side
of the grip (opposite the adjustable grip clamp).
