CD 7012, ISSUE 2, 08/03/2015 10
Ericsson AIR 21/AIR 32 Mounting Instructions
6) Check to see that the mount is on straight and that all the bumpers on both the side
and front of the antenna are touching equally.
7) You can now insert the AAT in the mounting plate and take your measurements with the
AAT in the standard way, making sure the AAT orientation is set correctly (Left, Right, or
Front).

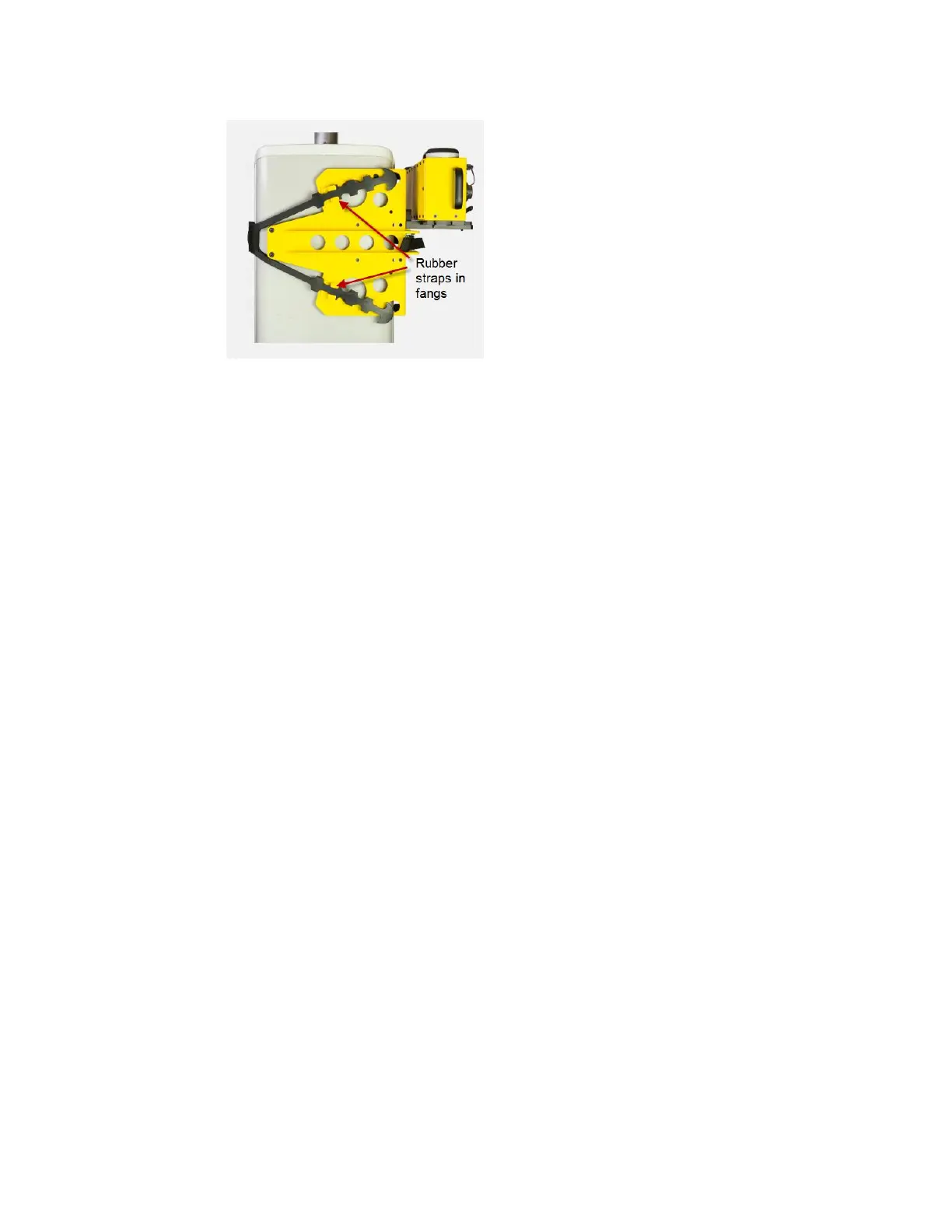

8) Once the measurements have been taken, remove the AAT from the mount and then
the mount can be removed from the antenna by unhooking the teeth from the rubber
strap. Leave the nylon strap in position as it will be set correctly for use on the next
antenna.
