CD 7012, ISSUE 2, 08/03/2015 9
Ericsson AIR 21/AIR 32 Mounting Instructions

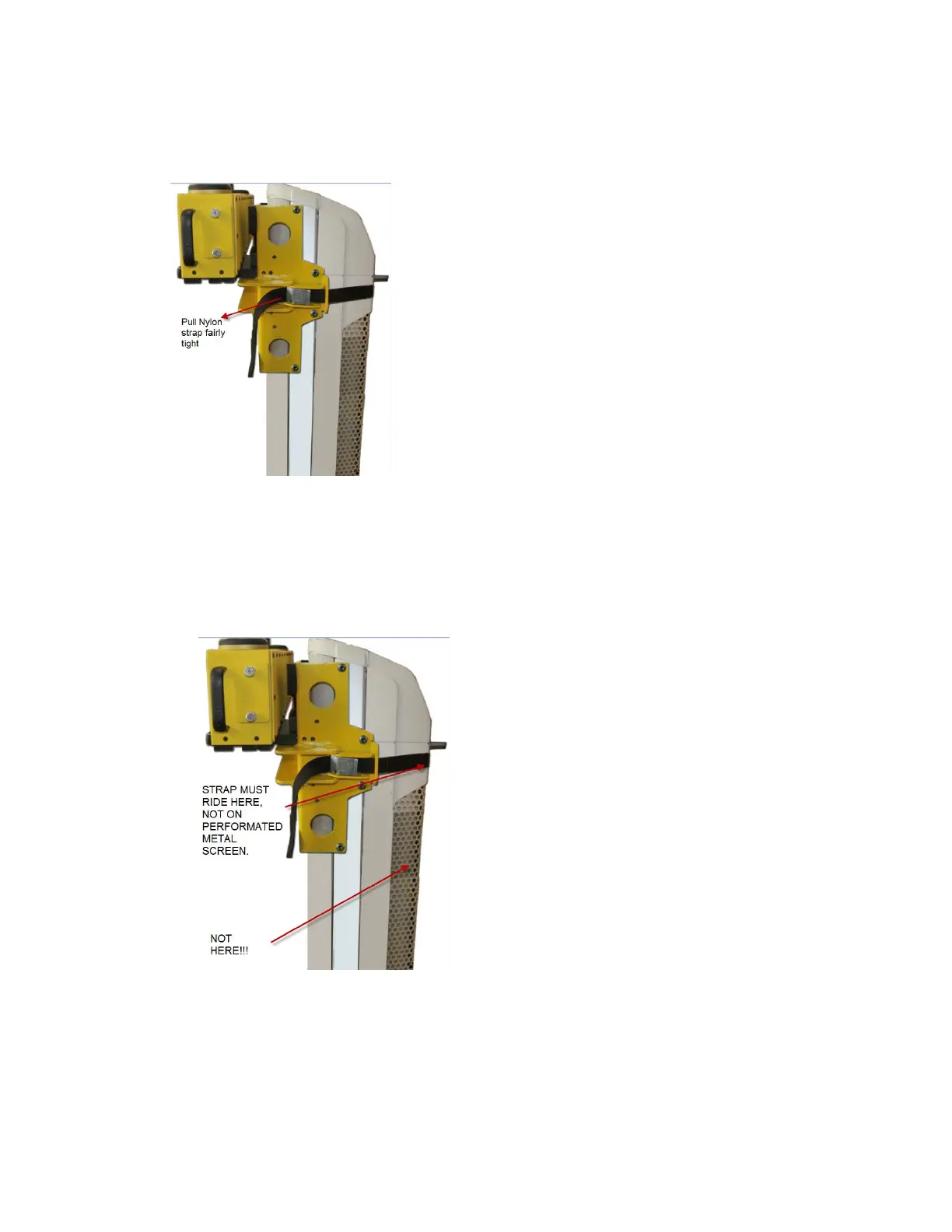

4) Next tighten the nylon strap by pulling it fairly tight through the cam buckle
NOTE: BE SURE THAT THE NYLON PORTION OF THE STRAP DOES NOT REST ON THE
ALUMINUM PLATE ON THE BACK OF THE AIR 21/AIR 32 ANTENNA.
5) Now go back to the rubber straps and tighten the strap one more tooth on each leg so
that there is more tension in the rubber strap.
