CD 7012, ISSUE 2, 08/03/2015 7
Ericsson AIR 21/AIR 32 Mounting Instructions

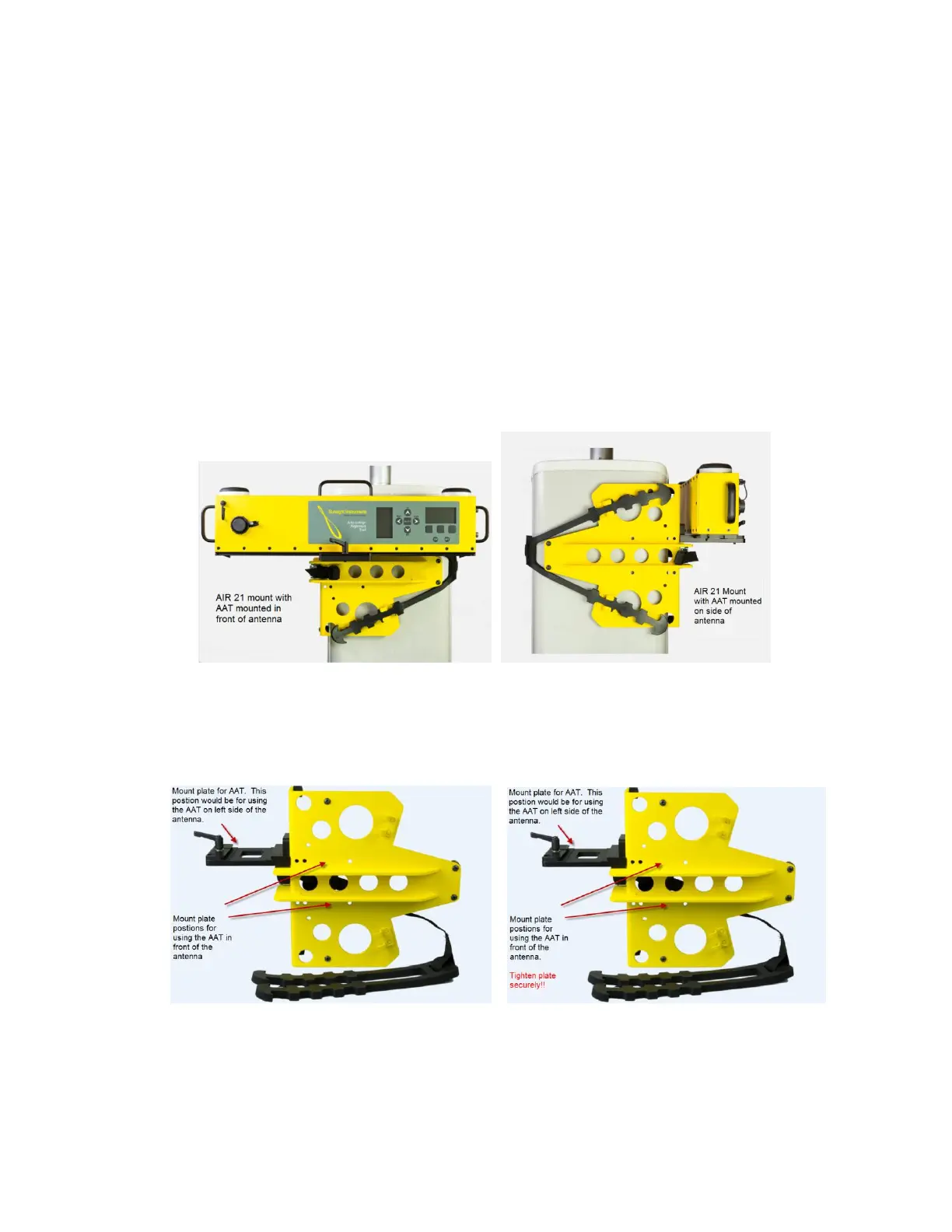

3) The mounting plate on the Ericsson ARI 21 or the AIR 21/AIR 32 mount can be installed so
that the AAT can be positioned on either the left, right or in front of the antenna. The
mounting plate is located by two dowel pins and secured by two thumbscrews. The best
location for the mounting plate should be based on access and safety for the operator.
Make sure the mounting plate is fully seated against the mount when tightening
thumbscrews.
** NOTE: Make sure the mounting plate and thumbscrew are tightened securely. Failure
to align and tighten this plate carefully will result in poor measurement results. Check to
make sure mounting plate fully contacts the mount after the thumbscrews have been
tightened. **
