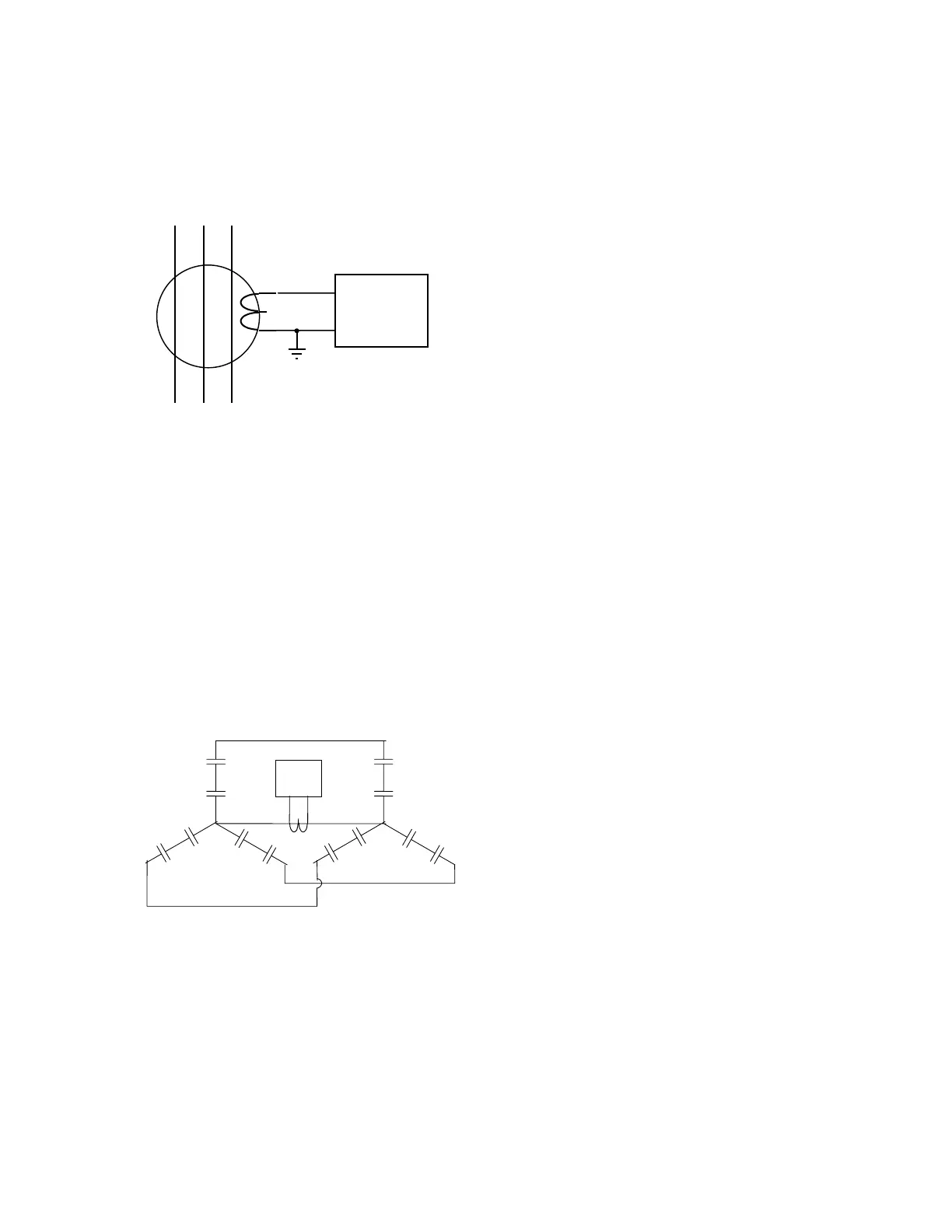

Fig.3 shows core balance CT connection for sensitive earth fault application.
Fig . 3 CBCT Connection
5. CAPACITOR UNBALANCE CURRENT PROTECTION
MVT161 can be used for unbalanced current protection of double star, delta and single-
phase capacitor banks.
INSTALLATION
Fig .4. Double Star Capacitor Bank Neutral Unbalance Protection.
MIT
161
Y
R
B
MIT
161
