Front Panel

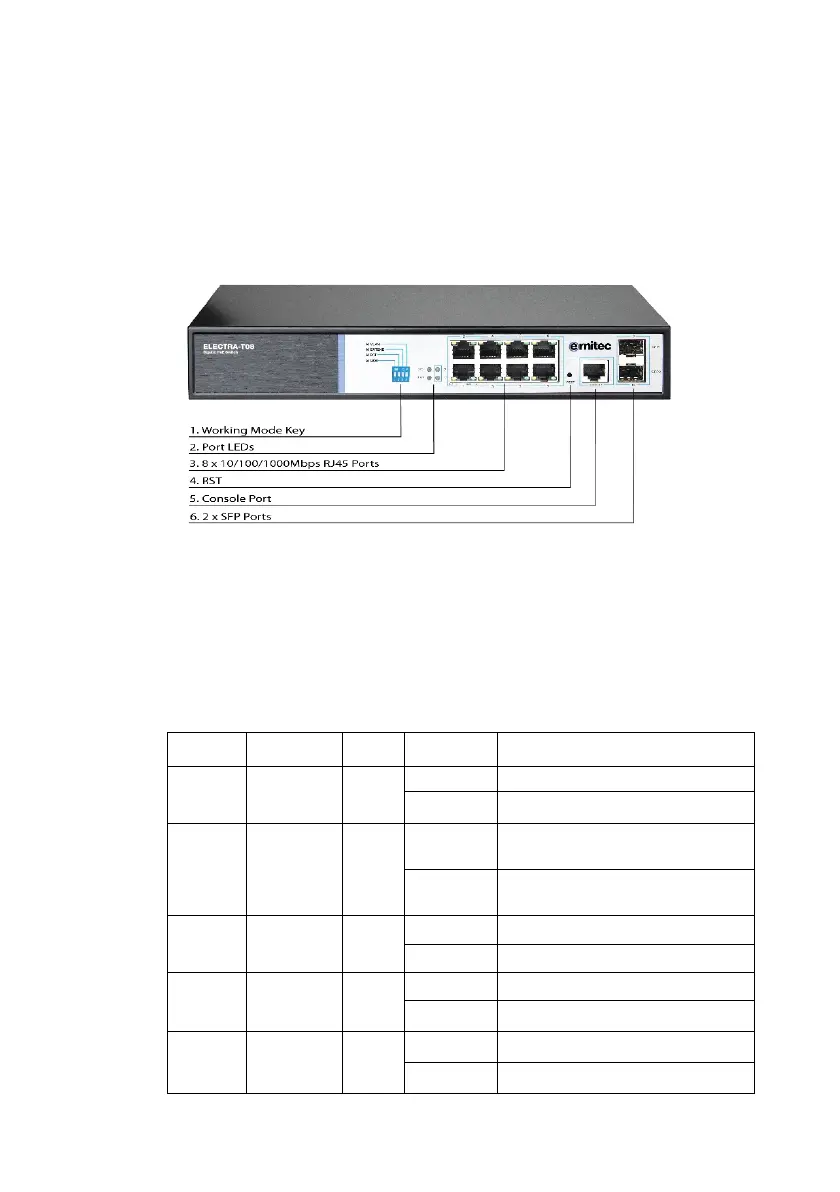

Including indicators, RJ45 port, DIP switch, RST button, SFP port, CONSOLE port, as shown in
Figure 1.1 below
Indicators
ELECTRA-T08 The indicator working status is shown as the following table
Indicators Title Color Work status Description
POWER
Power
indicator
Red
Solid Power is normal
Off
No power, the power switch is not turned
on, power supply is abnormal
POE
POE power
indicator
Yellow
Solid
The corresponding RJ45 port is
connected to the powered device and
the power supply is normal
Off
The corresponding RJ45 port is not
connected to the powered device or the
LINK/AC
T
Connection
indicator
Green
Blinking A valid link is established
Off An invalid link is established
SYS
System
indicator
Green
Blinking System is functioning properly
Off
System is functioning improperly
Software is damaged
9-10
SFP
indicator
Green
Blinking
A valid link is established on the SFP
port
Off
An invalid link is established on the SFP
port
