Installation Instructions
Please consult a professional installer, Elite Screens is not liable for faulty installations.

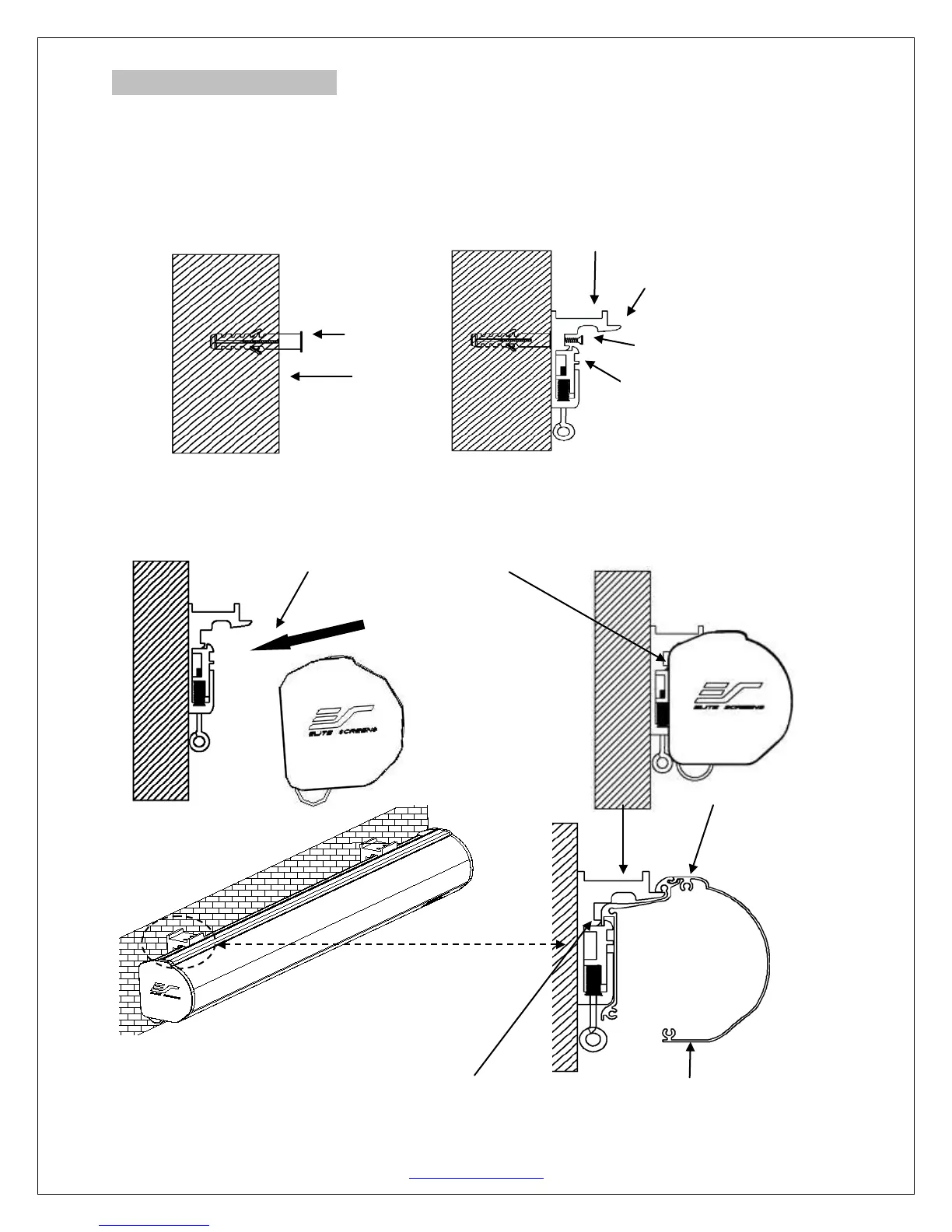

Flush Mount to the Wall
1. Mark the location of where the screen is to be installed, drill your holes and insert the
M10Anchors (B).
2. Install the Mounting Brackets (A) to the wall and secure with the M4x50 Screws (B).
Mounting Bracket
Anchor
3. Attach the screen to the Mounting Brackets (A) by inserting the top of the case to Fix Plate 1 and
securing the back of the case to Fix Plate 2. Make sure the case slots are securely attached to the
mounting brackets.
Mounting Bracket Mounting Bracket
Fix Plate 1 Fix Plate 2
Mounting Bracket Case Slot 1
Case Slot 2 Screen Case
Mounting bracket
Fix Plate 1
Fix Plate 2
To Next Page
