ESA DC - TC Probe Control and Adjustment; Emission Alarm and Sensitivity Settings

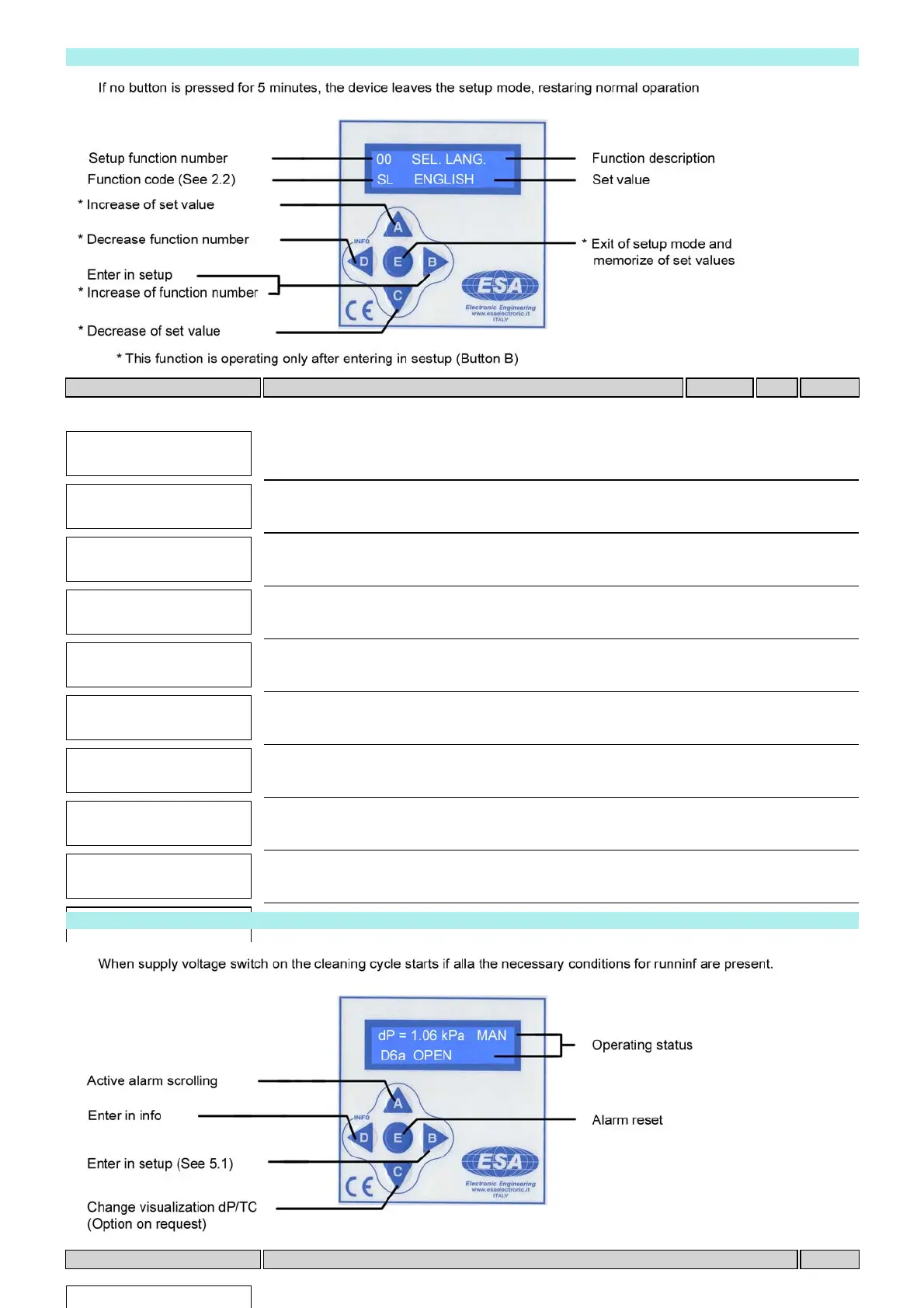

5.1 ENTER DATA IN SET MODE
SETUP / DISPLAY DESCRIPTION Range Code Default
20 TC CONTROL
D11 ON
Inclusion / exclusion TC probe control D11
21 ZERO TC ADJ.
D17 00 mg/m3
TC reading zero adjustment. (TC reading on display) -9 ÷ +9 D17
22 TC ADJUST.
D18 20 mA = 100
TC reading adjustment to get value on display in mg/m3 D18
23 ALL. TC DELAY
D12a1 010 sec.
Delay for the activation of the continuos emission alarm 1 ÷ 250 D12
25 TC ALARM THRES.
D12c 050 mg/m3
Continuous emission alarm threshold 1 ÷ 99 D12b1
24 SENSITIVITY
D21 5 = 06 mA
Sensitivity for broken bag check 0 ÷ 9 D21
26 TC MEAN TIME
D19 010 sec.
TC probe signal readout average time 1 ÷ 60 D19
27 mA TC READING
D20 04.0 mA
TC output current in mA D20
L TC READING
001 mg/m3
TC reading on display during test for mg/m3 adjustment
Press D and B. See D18
1 ÷ 99 D18
A REAL EMISSION
001 mg/m3
Real TC emission during test for adjustment in mg/m3
Press D and B. See D18
1 ÷ 99 D18
6.1 DISPLAY INDICATIONS IN OPERATION
DISPLAY DESCRIPTION Code
dP = 1.06 kPa MAN Differential pressure reading (dP = xxx) and manual running mode (MAN) C3
