ESAB W-17 - PARTS INFORMATION

7
PARTS INFORMATION
All parts which can be replaced without breaking soldered or brazed joints are illustrated and listed below. When
ordering parts, please give both part number and description (including size where appropriate). Parts may be or-
dered from your welding equipment distributor or from ESAB Welding & Cutting Products, Customer Service Depart-
ment, Florence, SC.

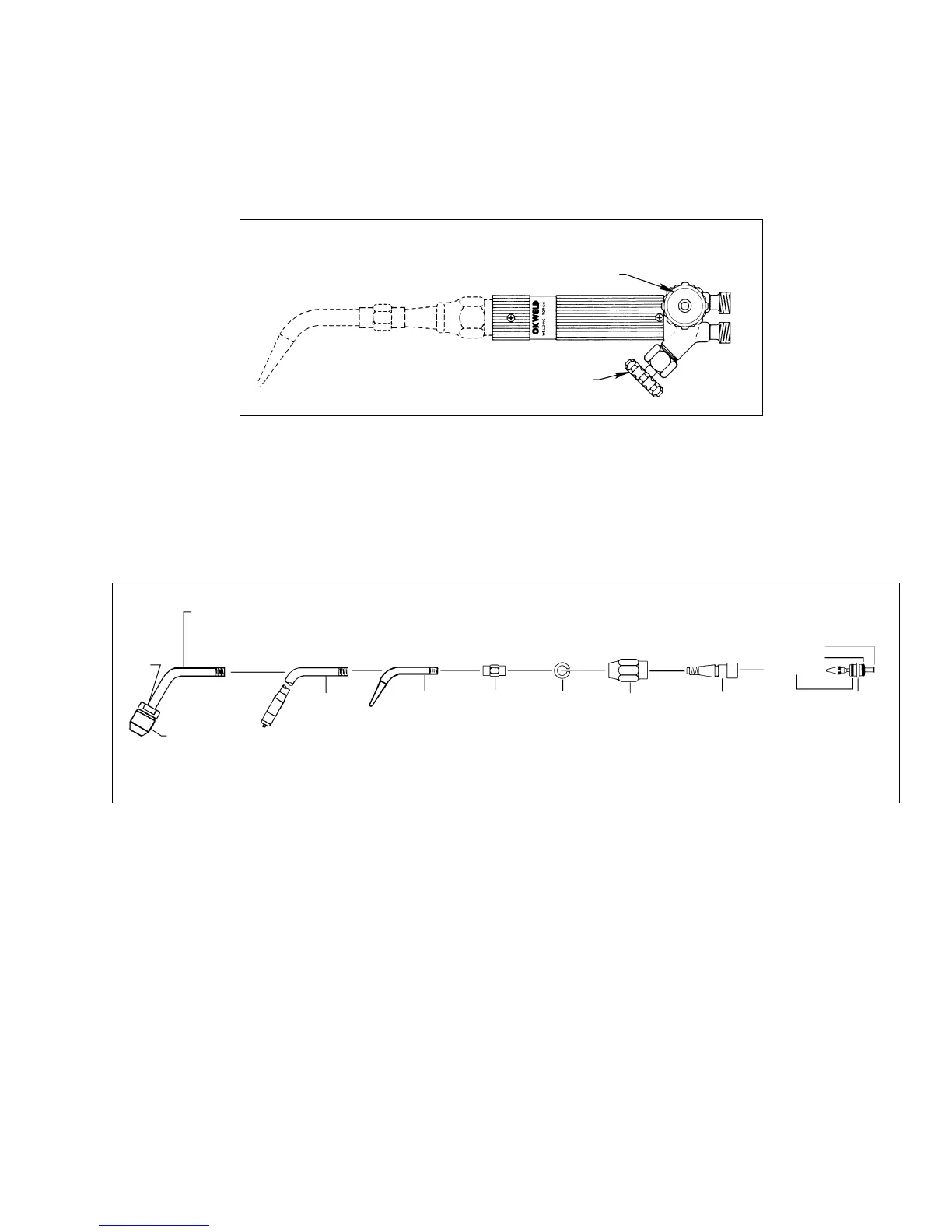

W-17 Welding Torch Handle ...................... P/N 4250
*O-rings included with Injector. **Except rosebud head assemblies 998822, 998823, 998234 use head nut 998787 and retaining ring 998553.
NOTE: If you are having problems inserting the above heads (injector with 3 O-rings) into an old torch handle
made prior to 1978, have the torch handle reseated by an authorized distributor repair service.
THROTTLE VALVE ASSEMBLY (OXY.) - 54A82
THROTTLE VALVE ASSEMBLY (F.G.) - 54A91
See
Note
STEM (ROSEBUD HEAD)
(See Table 3)
TIP (ROSEBUD
HEAD) (See Table 3)
TIP (STD.
MF HEAD)
(See Table 2)
TIP
(WELD HEAD)
(See Table 1)
TIP NUT
(See Tables)
RING
37A41
(For All
Heads**)
HEAD NUT
36Z39
(For All
Heads**)
MIXER TUBE
(See Tables)
INJECTOR
(See Tables)
*O-RING
14K10
2064104
86W51
NOTE: Apply X-pando Compound (7358-5950) on stem threads before assembly.
