Esatto EVD7 - Your Esatto Vented Dryer; Dryer Components Diagram

User Manual
10
1. Top-board 2. Control Panel 3. Door 4. Front Panel
5. Side panel 6. Filter 7. Flex tube (only to rear vent) 8. Power plug
9. Door lock/switch 10. Tumbling Drum 11. Front vent
7. Flex tube (only to rear vent) 8. Power plug
9. Door lock/ switch 10. Tumbling drum 11. Front vent
Your Estto Vented Dryer

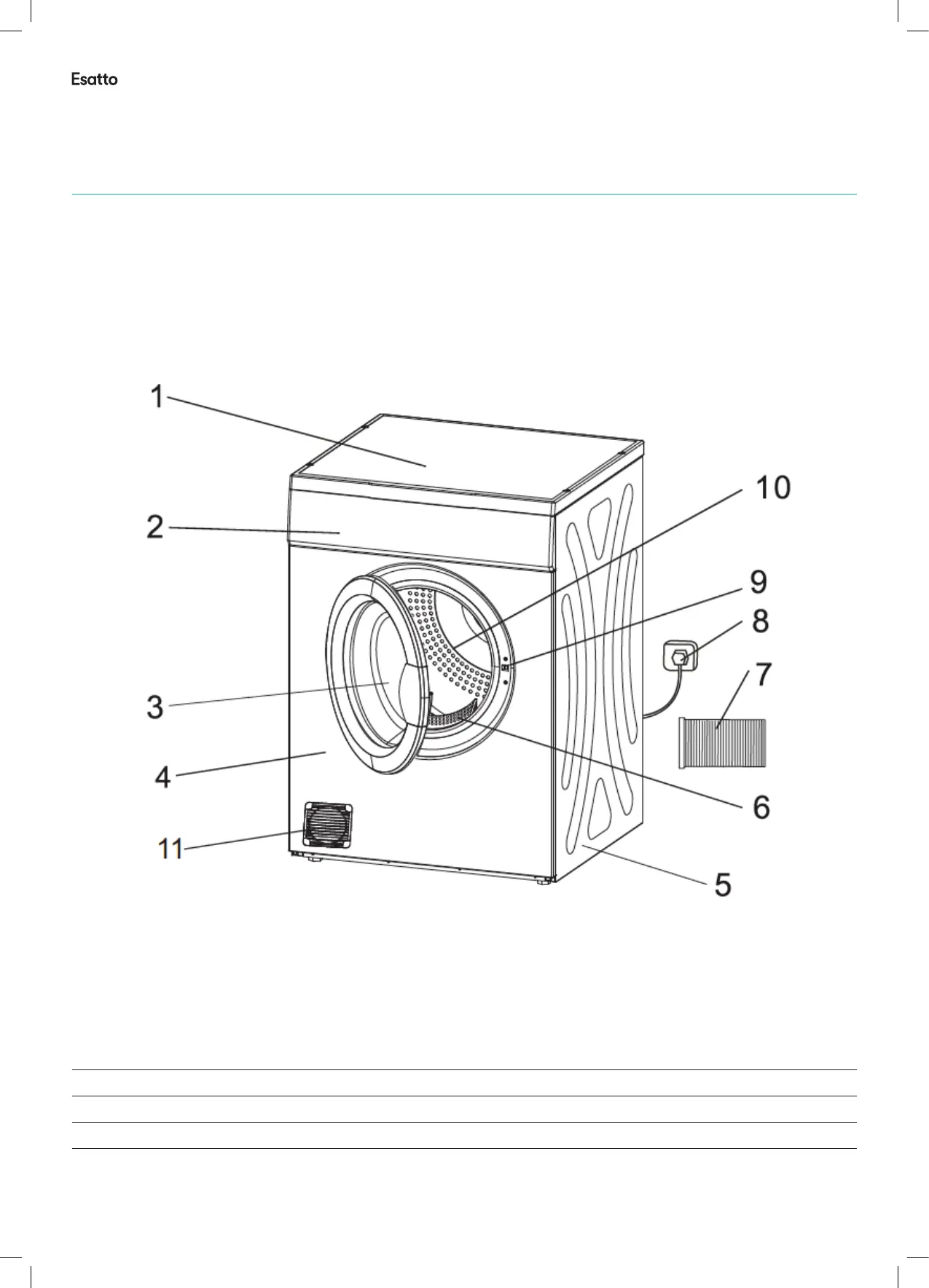

Figure 3 - A diagram showing the main components of your vented dryer.
