ASSEMBLY INSTRUCTIONS
GAME ASSEMBLY
WARNING: TWO ADULTS NEEDED TO ASSEMBLE FOOTBALL GAME

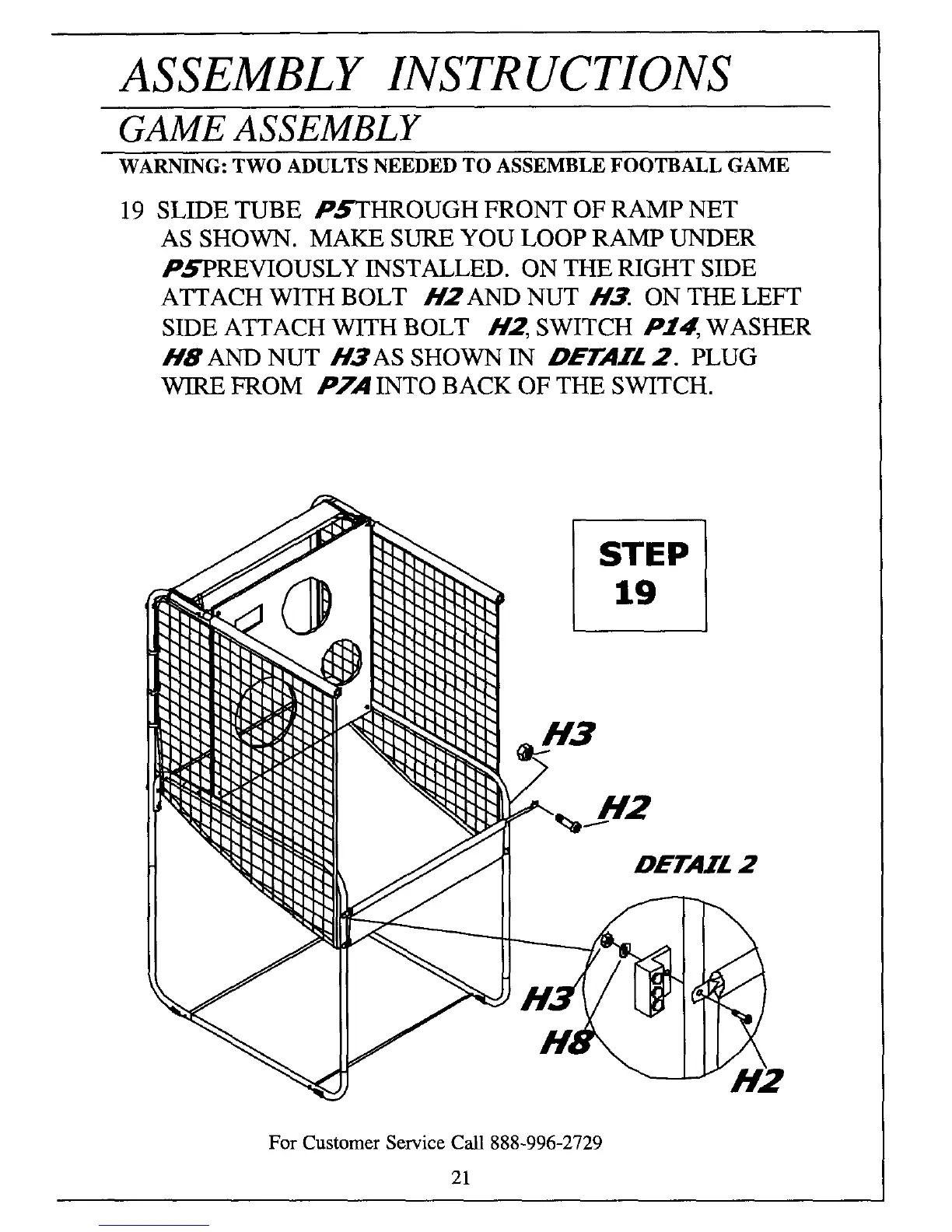

19 SLIDE TUBE Pb'THROUGH FRONT OF RAMP NET
AS SHOWN. MAKE SURE YOU LOOP RAMP UNDER
Pb'PREVIOUSLY INSTALLED. ON THE RIGHT SIDE
ATTACH WITH BOLT H2AND NUT H3. ON THE LEFT
SIDE ATTACH WITH BOLT H2, SWITCH P14, WASHER
H8 AND NUT H3AS SHOWN IN DETAIL 2. PLUG
WIRE FROM PTA INTO BACK OF THE SWITCH.
STEP
19
H3
H2
DETAIL 2
For Customer Service Call 888-996-2729
21
