ESCALADE SilverBack B5450 - Page 3

3
LEFT SIDE
RIGHT SIDE

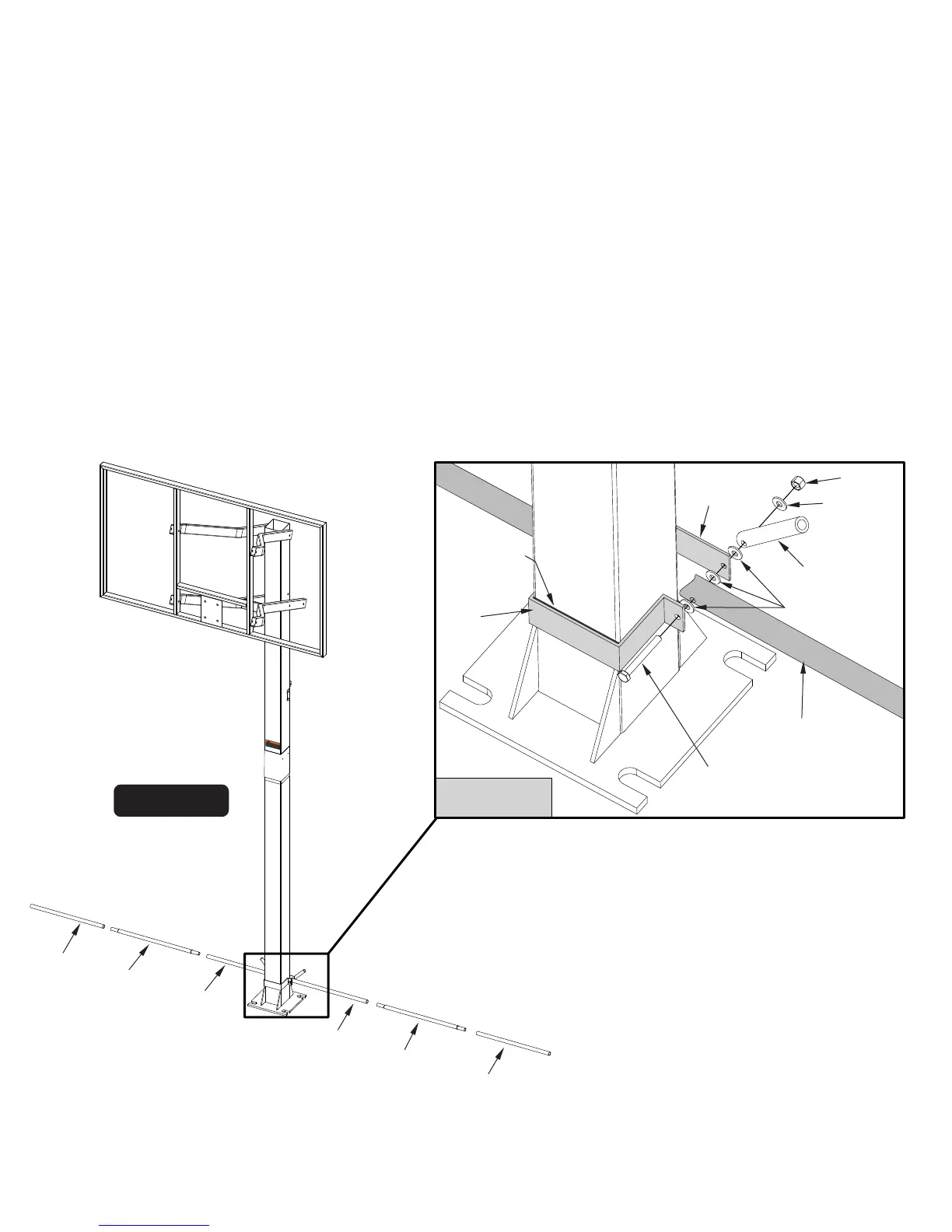

INSTALLING THE YARD GUARD
Figure 1
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
W
ARNING
!
Detail 1
11
10
Rubber part
goes on the
inside facing
the Pole
FRONT
OF POLE
NOTE: Two adults are recommended for the Yard Guard installation.
13
12
11
13
12
11
4
3
6
1. Slide Inner (#11) middle (#12) and outside (#13) poles together as shown in Figure 1.
2. Put together Yard Guard bracket as shown. Using Bolt (#1), Washer (#2), Tube (#11), another Washer
(#2) Back Bracket (#3), Washer (#2), Pivot Tube (#6), Washer (#2) and Nut (#10). Tighten Nut
securely so that the rods can pivot up and down, but front to back wobble is minimized. See Detail 1.
2
2
1
