ESCALADE SilverBack B5450 - Page 4

4
Detail 2
Figure 2
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
W
ARNING
!
8
11
FRONT
OF POLE
NOTE: Make sure
Warning Label and
artwork face FRONT.
NOTE: Make sure Warning Label and artwork on Yard Guard Nets face the FRONT of pole.

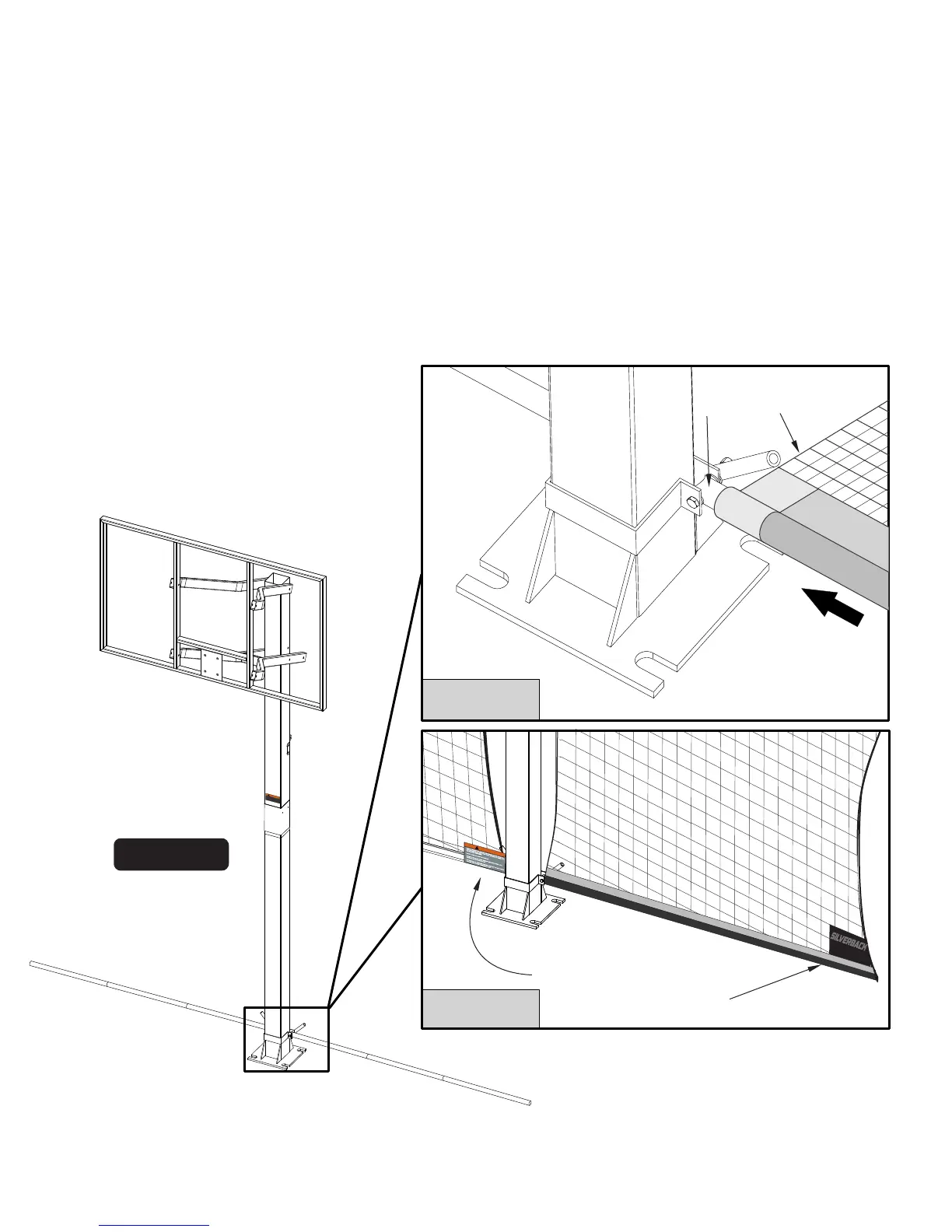

3. Slide Right Yard Guard net (#8 with Silverback Decal) onto Steel Tube (#11) as shown in Detail 2.
Repeat for left Yard Guard Net (#7 with warning label). See Detail 3.
4L-8156-00
W
A
R
NING
!
NOTE: Make sure
Warning Label and
artwork face FRONT.
Y
ard Guard
Detail 3
