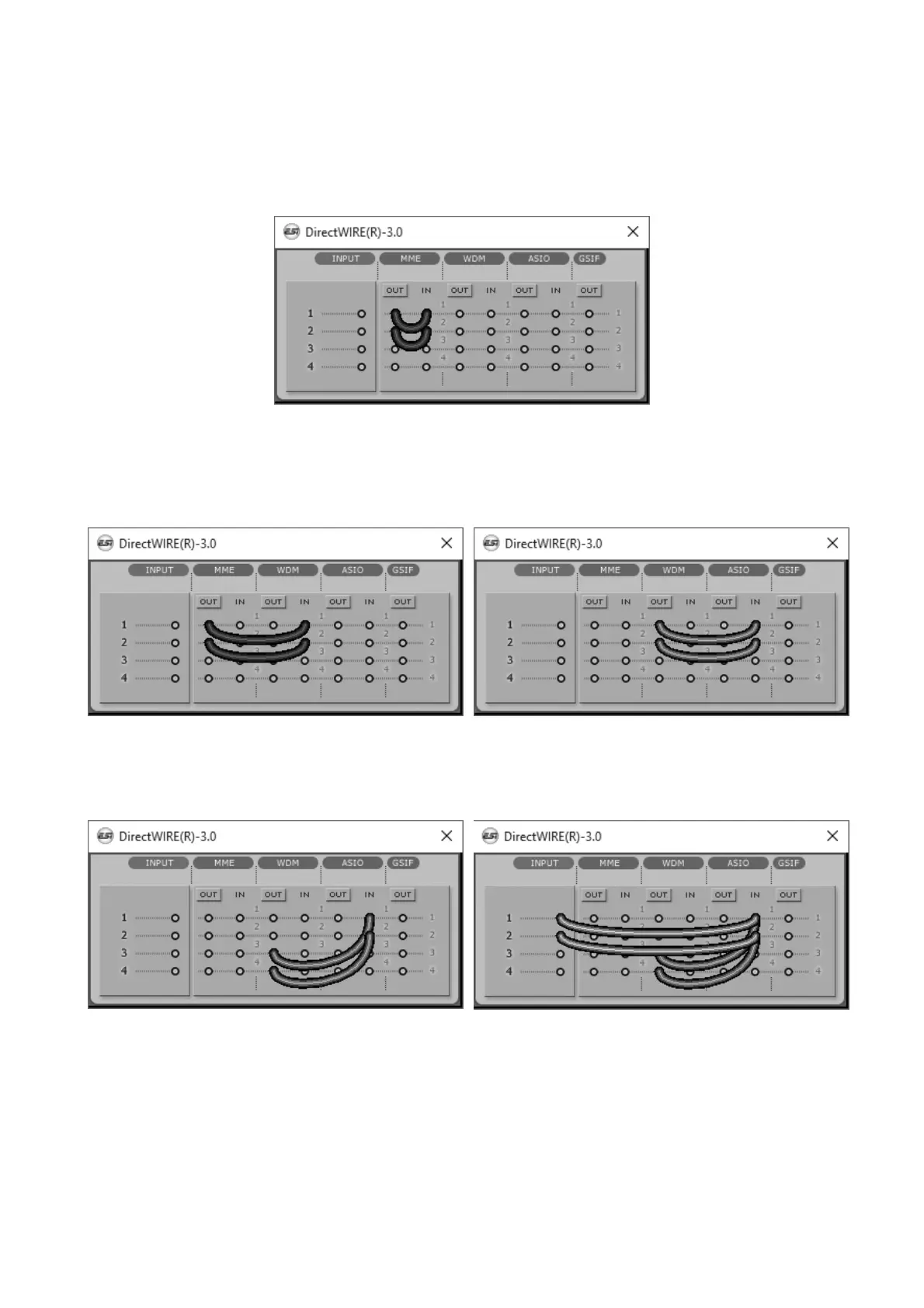

DirectWIRE Examples
Example 1. Recording from WinAmp (MME) to WaveLab (MME).
If you want to record what's played back in WinAmp, but don't want to hear the sound, you should
click the OUT button in the MME section so it'll change to OFF.
Example 2. Recording from WinAmp (MME) to
SONAR (WDM).
Example 3. Recording from SONAR (WDM) to
Cubase, Nuendo (ASIO).
Example 4. Recording of the playback from
channel 3/4 from Windows Media Player (WDM)
into channel 1/2 of Cubase, Nuendo (ASIO).
Example 5. same as example 4, but in addition
the input signal is also recorded and mixed to the
playback signal.
Default Settings: remove all connections in the DirectWIRE panel, when you do not want to record
signals internally from one application to another.
