Operator’s Manual
38200
|
Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007

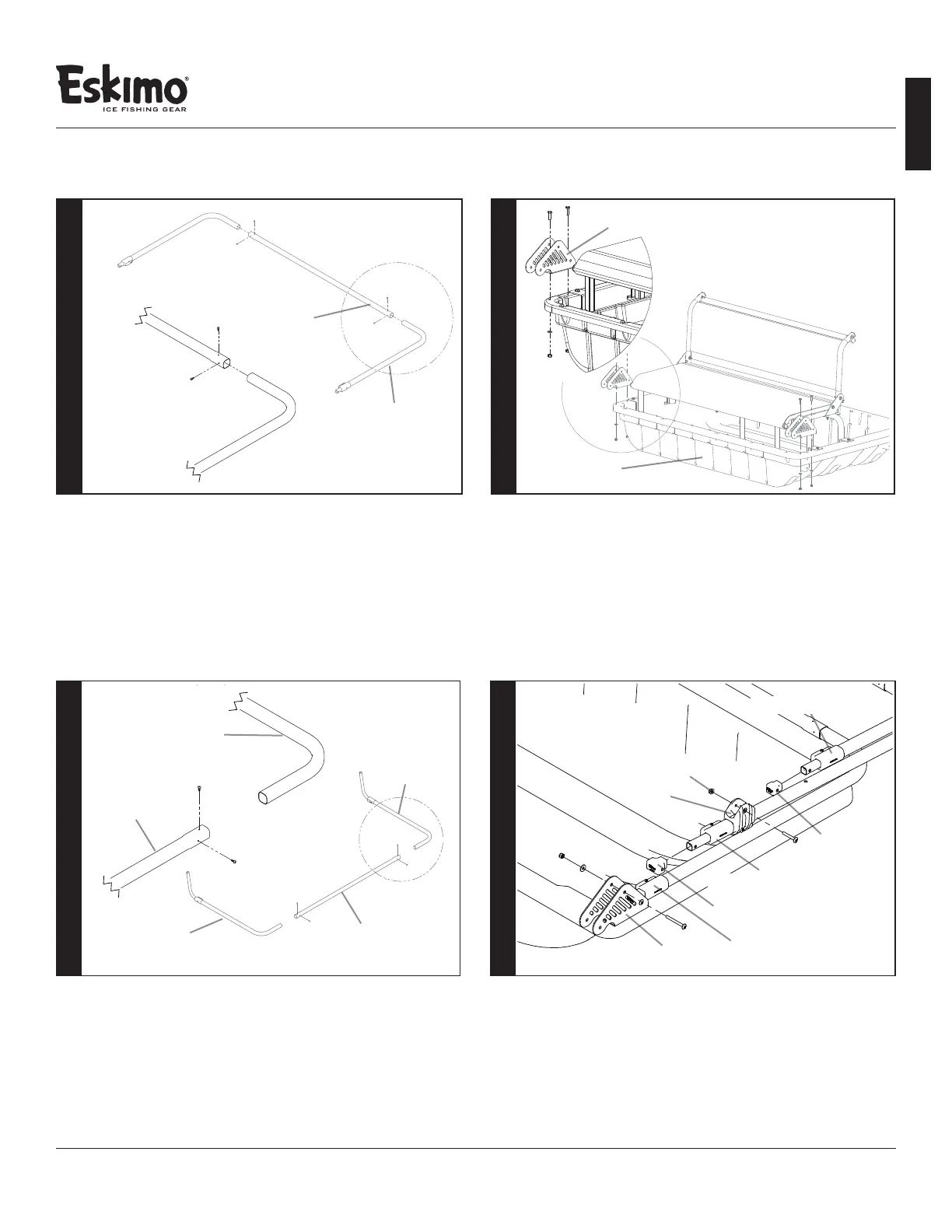

ALUMINUM FRAME ASSEMBLY
FIGURE 3
Assemble (2) #26539 assemblies to #38584 with the
included ½ IN self-drilling screws, (2) screws per side
at pre-drilled locations on #38584. Repeat this step for
(2) #36916 assemblies to #38584, and (36625/36626)
assemblies to #38584. There should be (3) total loop pole
nished assemblies when this step is complete.
NOTE: Be careful not to overtighten and strip screw holes.
#26539
#38584
SEE DETAIL
3
FIGURE 4
Assemble #33636 and #33635 to #38584 with the
included ½ IN self-drilling screws, (2) screws per side
at pre-drilled locations on 38584.
NOTE: Be careful not to overtighten and strip screw holes.
4
SEE
DETAIL
#33635
#38584
#38584
#33636
#33635
FIGURE 6
6
(A) Assemble (26539/38584) assembly to (36618) using (2) 2-½ IN Philips
drive bolts, (2) washers, and (2) nuts at the back bottom hole on #36618.
(B) Repeat above step to assemble (36625/36626/38584) assembly (using
middle top hole in #36618).
NOTE: #36642 push button should be face down.
(C) Assemble (36916/38584) to #36642 hinge on (36625/38584/36626)
pole assembly using (2) #36858, (2) 1-¾ IN Philips drive bolts, (2) washers,
and (2) ange nuts.
NOTE: Tighten hardware.
FLANGE NUT
Assemble #36618 to #38948 using (2) 1 IN bolts,
(2) washers, and (2) nuts. Repeat step for remaining
#36618 component.
NOTE: Be sure that hinges are perpendicular to the sled front,
and are parallel to each other. Tighten hardware.
5
FIGURE 5
#38948
#36618
SEE DETAIL
#36642
(36916/38584)
ASSEMBLY
#36858
(36625/38584/36626)
ASSEMBLY
#27821
#36618
(26539/38584)
ASSEMBLY
To Next Page
