6
Operator’s Manual
38400
|
Eskape™ 2600 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT

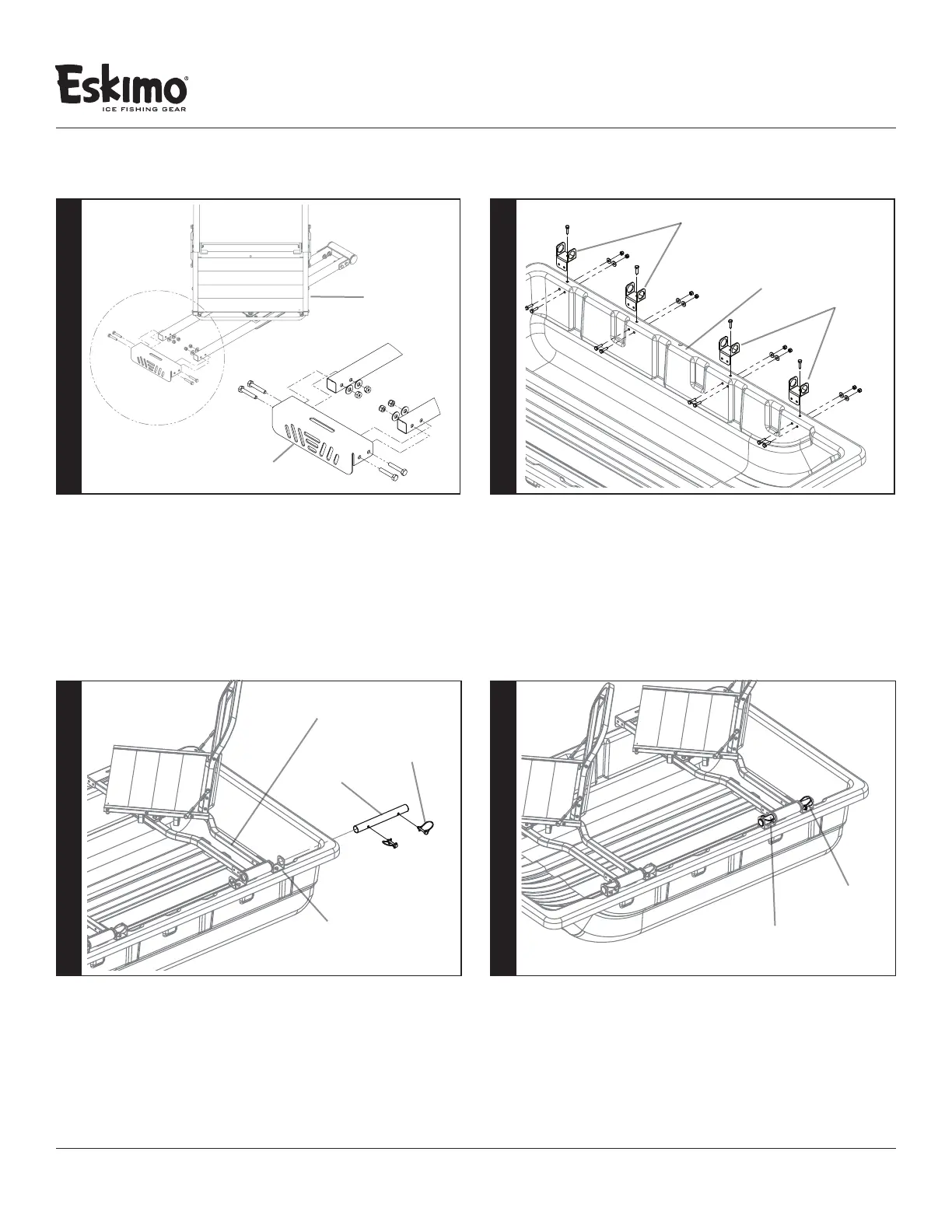

Assemble part #26537 to #33409 using (3) 1 IN bolts,
(3) washers, and (3) nuts at the locations shown in
Figure 4. Repeat this step for the remaining #26537
components.
FIGURE 5
Assemble the complete seat assembly from step 3
(26550/26535/28066/15004/28058) to the (33409/26537)
assembly using (1) #36624 and (2) #63281 ¼ IN Lock Pins
as shown in Figure 5. Repeat this step for the remaining
seat assembly and #33726 components.
#36624
#63281
FIGURE 6
See Figure 6 for completed view of Step 5.
#36624
#63281
4
FIGURE 4
#33409
#26537
#26537
FIGURE 3
#26550
(28066/26535)
ASSEMBLY
(A) Assemble #26550 onto (28066/26535) assembly using
(4) 1-½ IN bolts, (4) nuts, and (4) washers.
(B) Repeat steps 2a, 2b, and 3a for assembly of remaining
seating components as instructed above.
3
SEE DETAIL
(26550/26535/28066/15004/28058)
ASSEMBLY
(33409/26537)
ASSEMBLY
5
a
5
b
