Eskimo Eskape 2600 - SPREADER POLE AND SKIN ATTACHMENT; POLE AND SKIN ASSEMBLY

8
Operator’s Manual
38400
|
Eskape™ 2600 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT

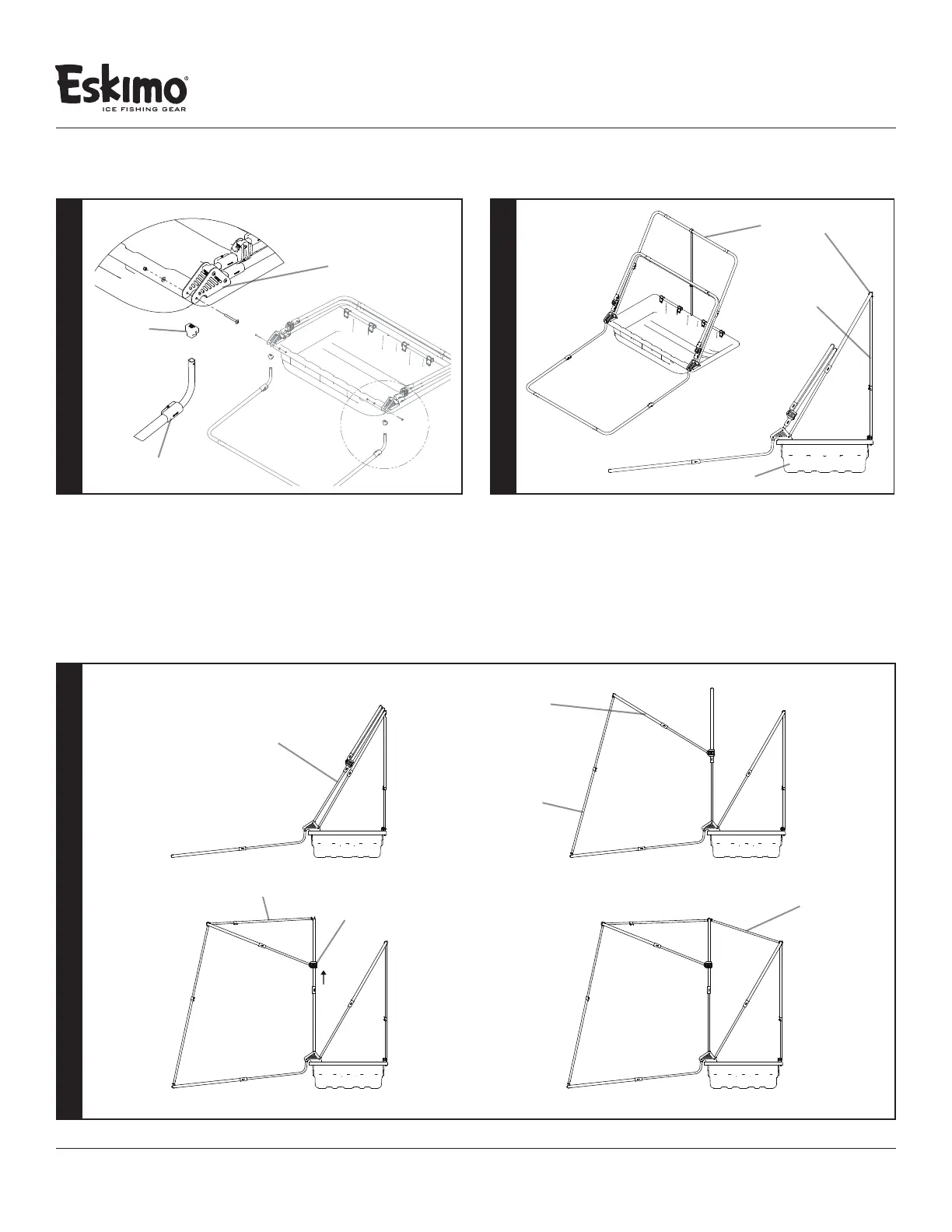

SPREADER POLE ATTACHMENT / SKIN ASSEMBLY
#27729
#36642
#36628
#26544
FIGURE 13
FIGURE 11
Assemble (33635/33416/33636) to #27821 and
#26536 using (2) 2-½ IN Philips drive bolts, (2) washers,
and (2) nuts.
10
SEE
DETAIL
FIGURE 12
(A) Attach #27730 to #33409 and (26539/33416)
as shown in Figure 12. Be sure to fully extend
(26539/33416) assembly until locked prior to
attaching #27730.
(B) Adjust height of #27730 until the (26539/33416)
assembly is tangent to the edge of #33409 as shown
in Figure 12.
11
#27730
(26539/33416)
ASSEMBLY
#33409
(33635/33416/33636)
ASSEMBLY
(36625/33416/36626)
ASSEMBLY
(36916/33416/36916)
ASSEMBLY
#26536
#27821
A
C
B
D
