Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified
electrician.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
Always use the correct type and wattage bulb. Never exceed the wattage stated.
When changing a bulb, always switch off at the mains and allow the old bulb to cool down before handling. Dispose
of used bulbs carefully and responsibly.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
This product is rated at IP44.
This product is not suitable for location in or near a marine environment.
The entire unit gets hot whilst on for a period of time.
Unlike many PIR fittings these do not come on once fist commissioned. They will only activate for the first time once
the ambient light level drops below 10 Lux
Specification
Voltage: 240V 50Hz a.c.
Lamp: 1 x Max 60W E27 (ES)
IP rating: 44
Installation
Existing fittings must be completely removed before installation of a
new product. Before removing the existing fitting, carefully note the
position of each set of wires.

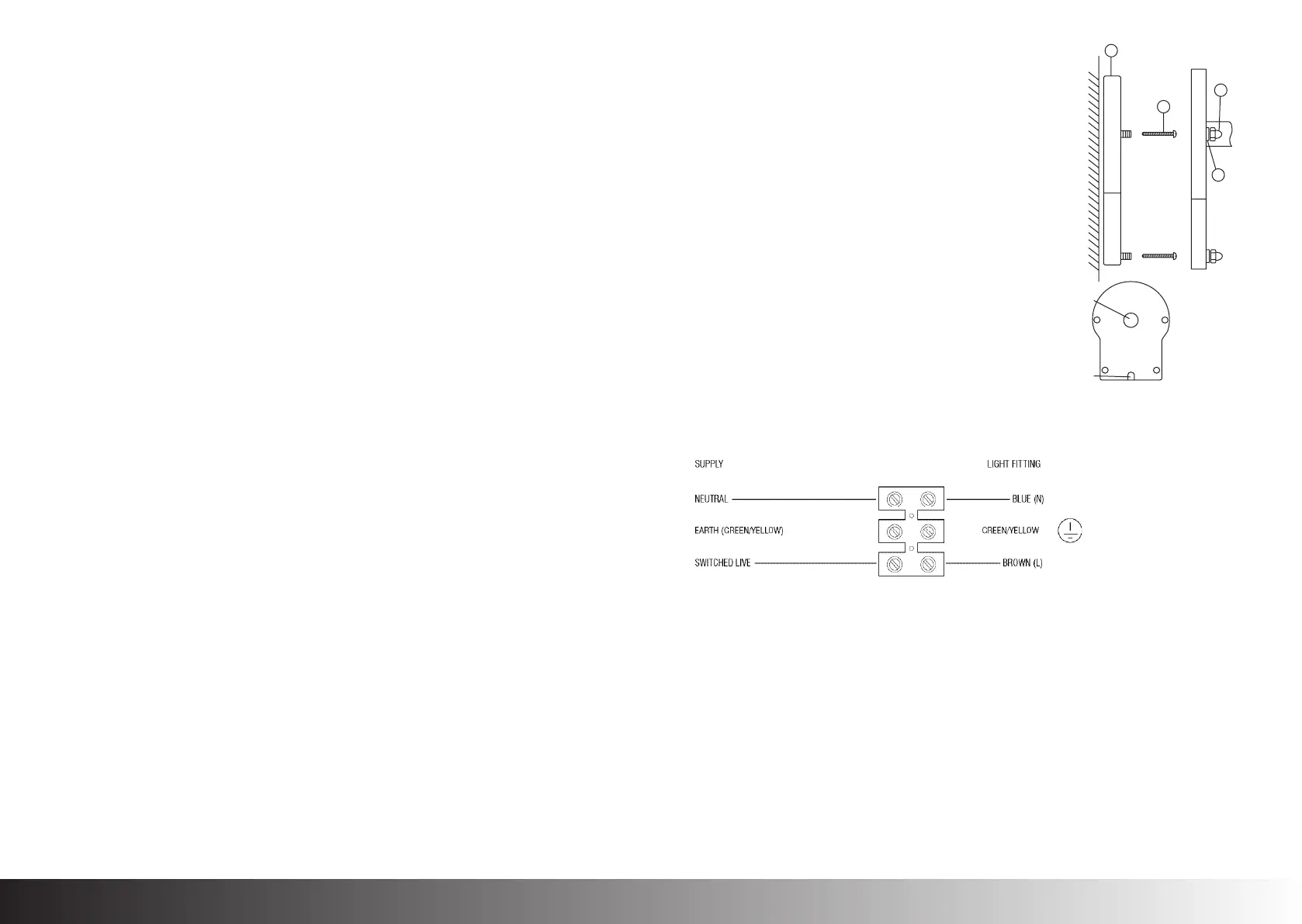

• Remove mounting box (A) from product by removing dome
nuts (C) and washers (D). Carefully pierce a small hole in the
rubber gasket in the centre of the mounting box to allow the
cable to pass through.
• Thread the cable through the hole, ensuring the drain hole is at
the base of the mounting box.
• Fix the mounting box to the wall using the screws and plugs
supplied (B). Ensure the wall is capable of holding the weight
of the product. Take care to avoid damaging any concealed
wiring and pipes. The correct fixings should be used for brick
or cavity walls.
• Seal the screw fixings to maintain the IP rating of the fitting.
Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect to the
connection block inside the product in the following way:
Wiring
Commissioning
• Ensure that the cable is not snagged and seal to maintain the IP rating of the product.
• Fit the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to
secure.
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
PIR Adjustment
• The unit must be installed in a vertical position, and fitted 1.8m above the ground.
• The PIR sensor can be adjusted, allowing the detection distance to be altered to suit the location. The detection
angle is set at 110 degrees. The duration that the lamp stays on can also be altered from 5 seconds - 5
minutes. Use a small screwdriver to adjust the ‘TIME’ and ‘SENS’ screws. When adjusting the sensitivity
(detection distance) in daylight it will be necessary to cover the sensor to simulate night time.
• You have correctly identified
the wires.
• The connections are tight.
• No loose strands have been
left out of the connection
block.
Check that...
A
B
C
D
Drain hole
Gasket
Front view of
mounting box
