Allen Key #4 (2 pcs)

(Fig.2)

Lowest position

Unscrew b • It and nut using Allen key

(Fig.3)

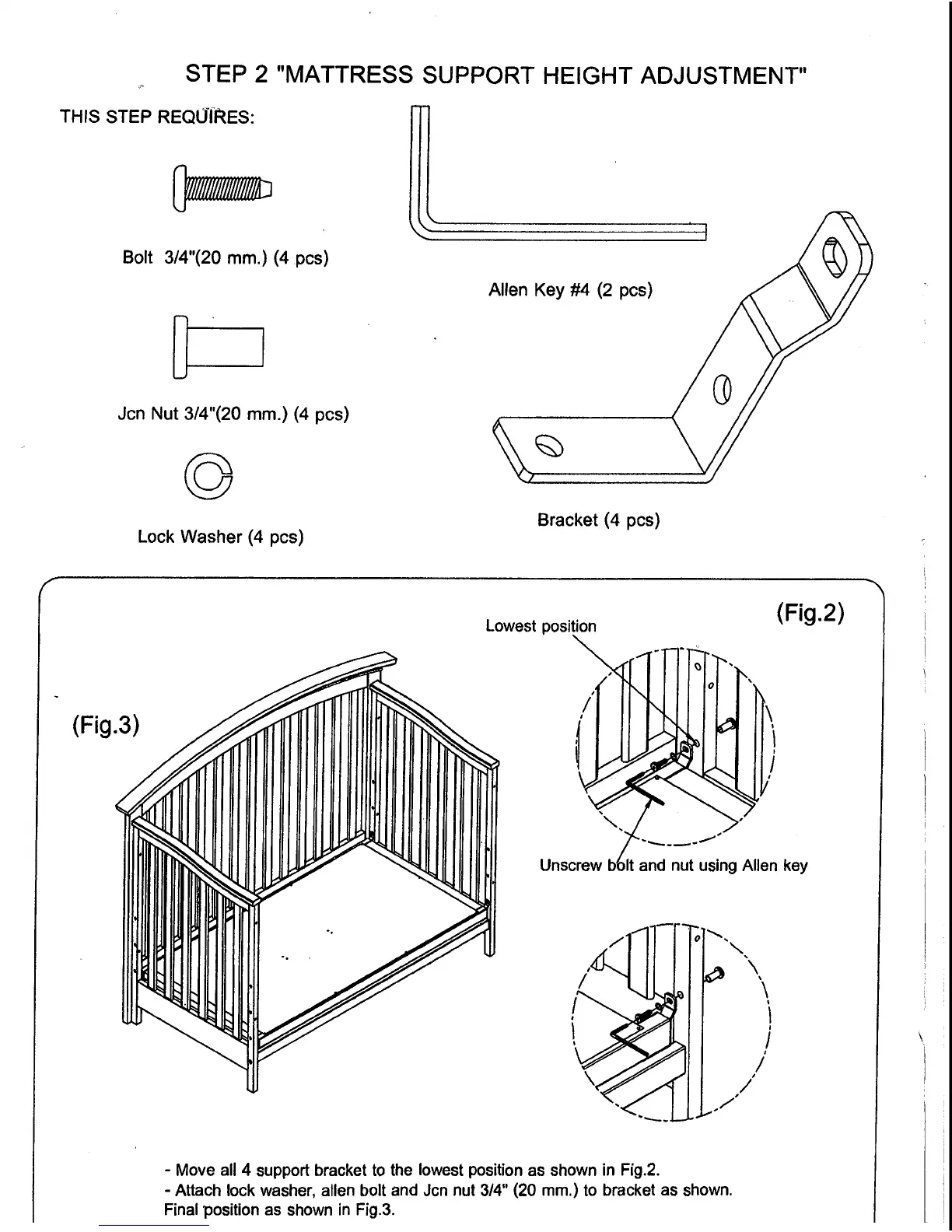

STEP 2 "MATTRESS SUPPORT HEIGHT ADJUSTMENT"

THIS

STEP REQUIRES:



/I////I////////I///.

Bolt 3/4"(20 mm.) (4 pcs)

Jcn Nut 3/4"(20 mm.) (4 pcs)

Lock Washer (4 pcs)

Bracket (4 pcs)

- Move all 4 support bracket to the lowest position as shown in Fig.2.

- Attach lock washer, allen bolt and Jcn nut 3/4" (20 mm.) to bracket as shown.

Final position as shown in Fig.3.
