Installing the Built-in Oven
1. The space where the oven will be placed needs to be at least 560 mm wide, 555 mm deep and 600 mm high.
A minimum gap of 2.5 cm between the work surface and the control panel, and a distance of 5 cm between
the work surface and top of the oven is needed, in order to be able to get to the back of the oven if necessary
and for easy access when sliding the oven out.
2. Ensure the electrical connections have been made.
3. Insert the oven into the cabinet by pushing it back into the space within the cabinet (Ensuring the electrical
cable is not trapped or touching hot parts). Open the door carefully, and insert the xing screws through the
spacers into the xing surface of the cabinet, ensure the front frame of the oven is touching the xing surface
of the cabinet and tighten the xing screws to hold the oven in place securely.

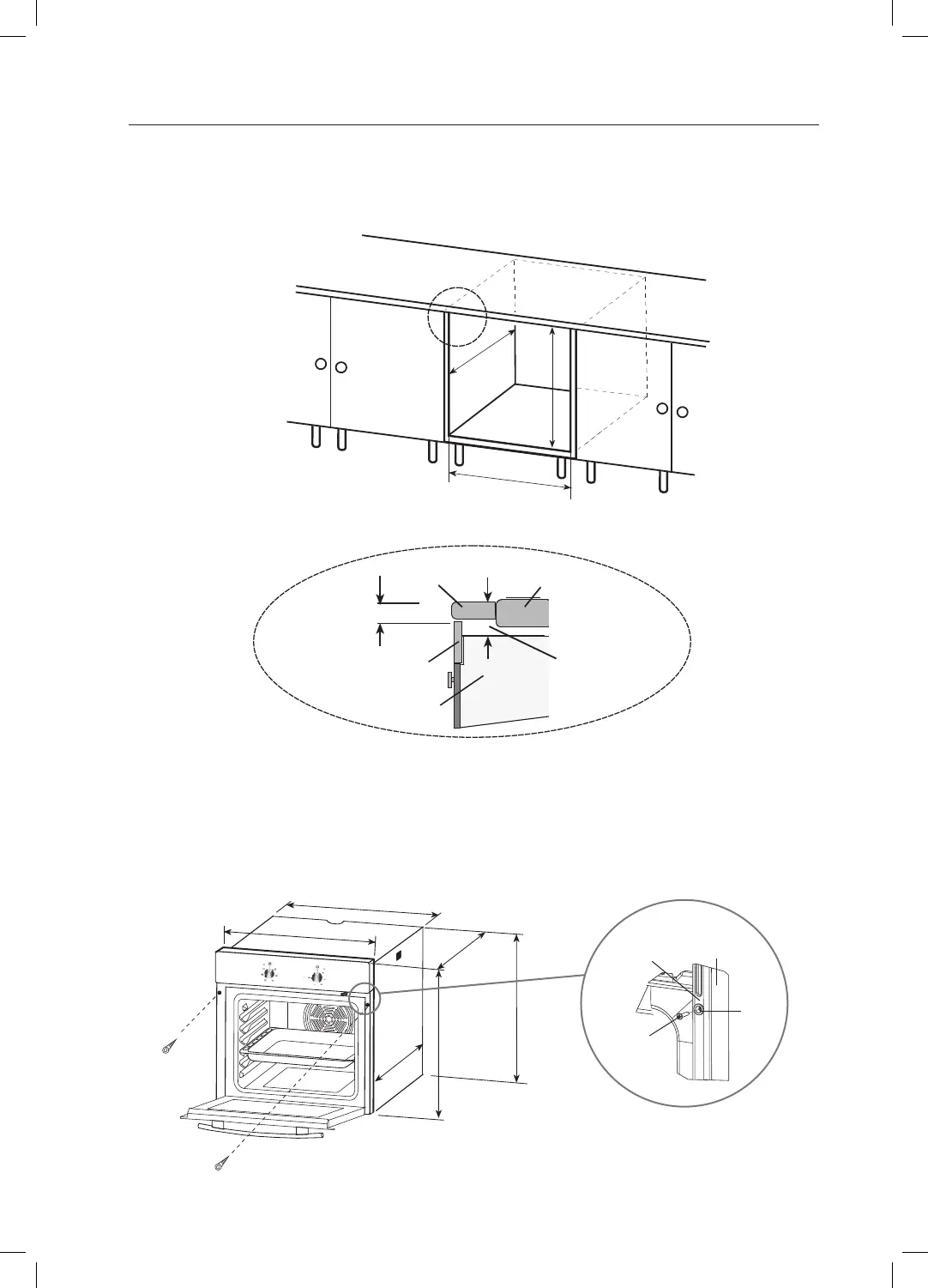

Cabinet cut - out sizes
60cm
58cm
56cm
60cm
Countertop
Built-in oven
Min.2.5cm
Control
panel
Distance between
countertop and
control panel
Built-in hob
Distance between
countertop and
top panel of built-in
oven
Min. 5cm
550mm
575mm
576mm
595mm
595mm
Mounting screws
Mounting
screw
Front
frame
Cabinet
edge
Spacer
Cabinet cut - out sizes
600mm
555mm
Min 560mm
Max 565mm
Countertop
Built-in oven
Min.2.5cm
Control
panel
Distance between
countertop and
control panel
Built-in hob
Distance between
countertop and
top panel of built-in
oven
Min. 5cm
