Essilor AKR 750 - Page 56

12-7 Replacement of the joystick ASSY

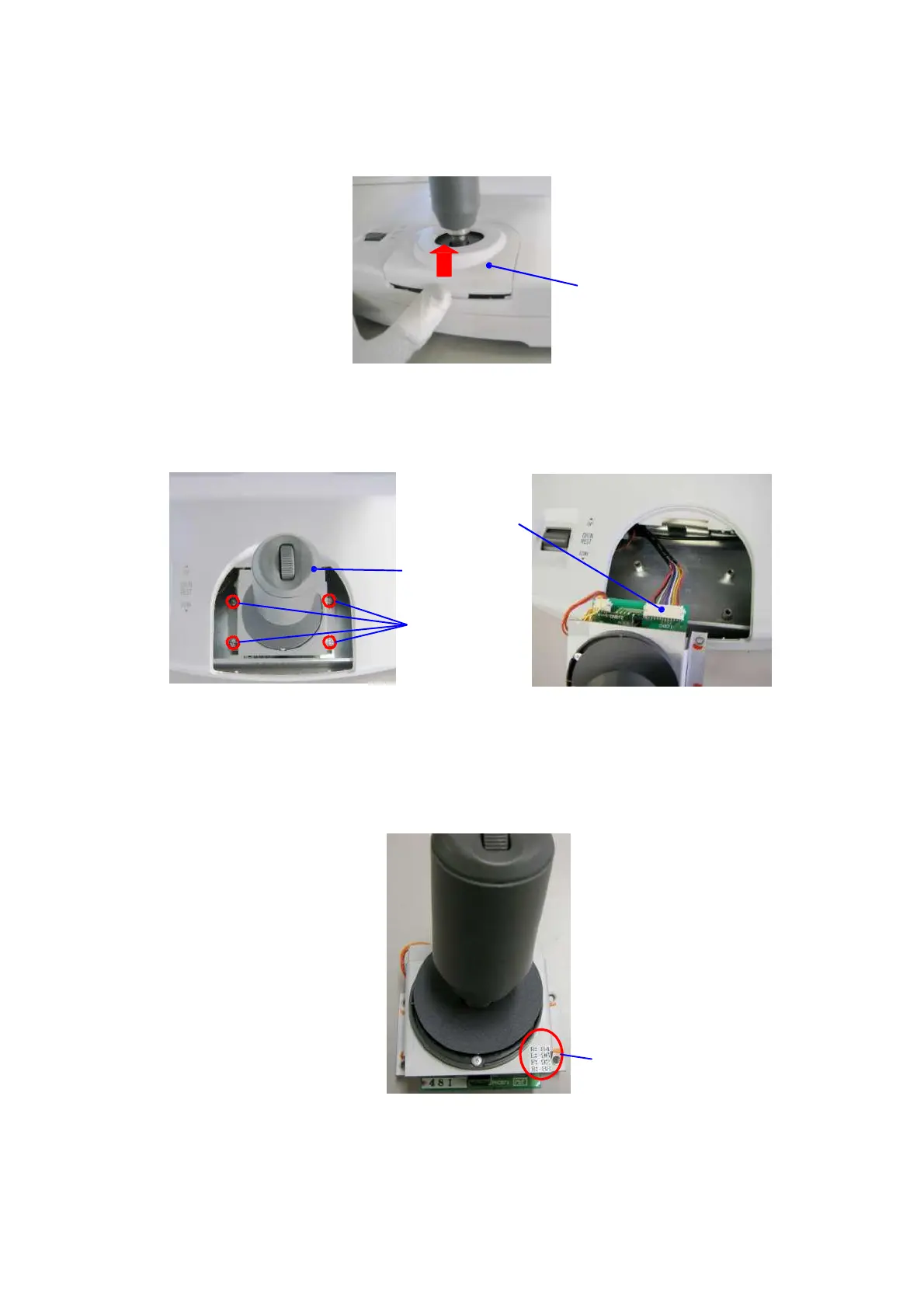

1) Press the claw under the joystick cover and remove the cover as pushing up.
Joystick cover
2) Replace it after unscrewing 4 fixing screws and removing the harnesses that are connected to.
Harness
Joystick ASSY
Fixing screws
3) Input the correction value indicated on the joystick ASSY complying with the procedure
of ‘10-2-8 Joystick Calibration’ after replacing the joystick ASSY.
Example of indication
of the correction value
55
