Installation Guide
The Emlock is mounted to the underside of the header, on the stop side
of the door. A TJ mounting kit (optional) can be used when mounting on
the hinge side of the door. (Fig. 1D)
The armature is mounted to the door. A hardware kit is provided to
compensate for misalignment and wear of the door, by allowing the
armature to pivot on its center point.

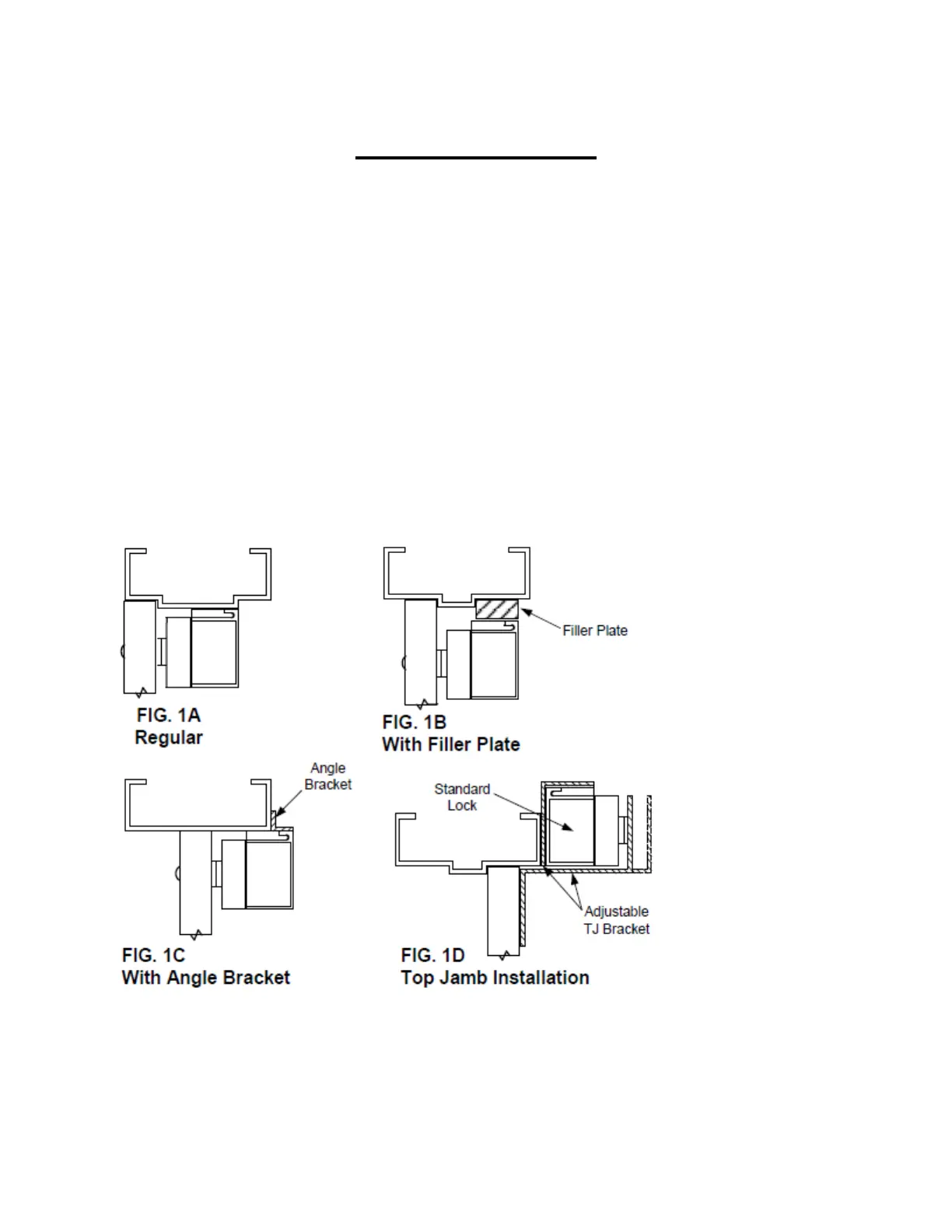

1. Inspect the frame header to determine if an angle bracket or filler
plate is required. See Figure 1A, 1B, 1C.
2. Fold template as indicated by dotted line. For single doors,
