locate template against the door and header on the lock jamb
side of the frame.

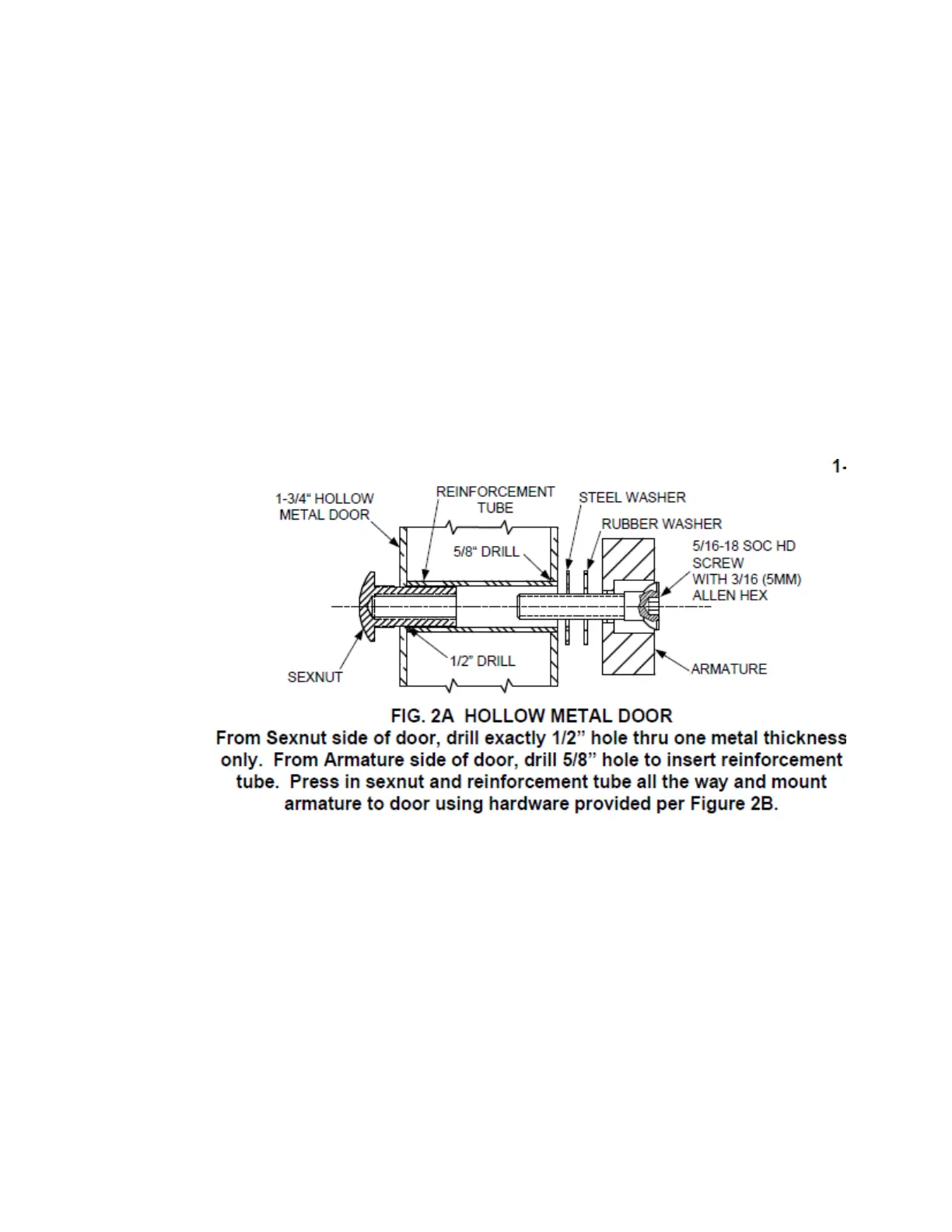

3. Mark and drill holes as indicated in template. For armature plate
hole preparation, see Figure 2A, 2B, 2C.
4. Mount armature to door. To determine proper hardware (provided),
see Figure 2A, 2B, 2C.
5. Install mounting plate to header with the interlock detail away
from the door side of the stop, with #10 Flt Hd. Screws provided.
.
6. Holding the magnet housing at each end, engage the entire
Length of the interlock detail, by pushing towards the door.
(If necessary, tap with a soft hammer to ensure proper alignment
And engagement).
Caution: The lock body must be held in place until
Secured with mounting screws. Screws provided inside the
Housing at each end. Tighten the screws and check alignment
