ESI U168 XT
6

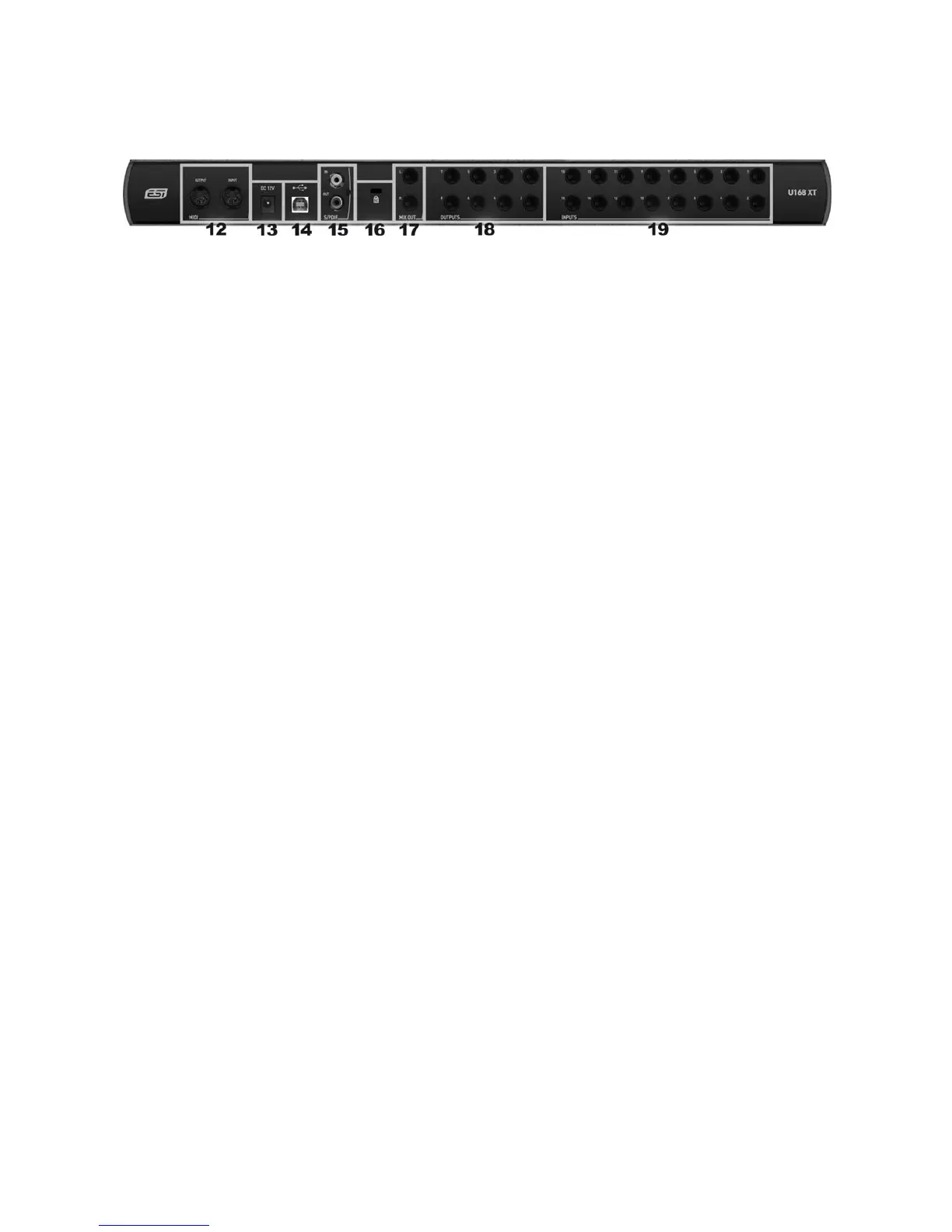

The rear panel of U168 XT has these main features:
12. MIDI input and output connectors, connects to MIDI equipment such as keyboards,
synthesizers, sound expanders and more.
13. 12V DC power connector, connects to the included DC power supply. U168 XT requires this
power supply to operate.
14. USB connection port, connects to your computer with the supplied USB cable.
15. S/PDIF digital input and output, these two RCA connectors provide the coaxial digital
connection option for S/PDIF signals. The input can be used in alternative to the analog input
channels 15/16 (switchable in the control panel by software), the output provides the playback
signal from output channel 1/2.
16. If required, this connects your unit to a standard laptop lock connector, preventing it from
being stolen.
17. mix output, provides balanced / unbalanced 1/4" TRS connectors for the stereo master mix
signal from the integrated monitoring mixer of U168 XT. This connects typically to your studio
monitors if you choose to use the integrated mixer.
18. line outputs channel 1 to 8, these balanced / unbalanced 1/4" TRS connectors provide each
independent analog output signal of U168 XT. If you do not use the integrated mixer, you
would typically connect output 1/2 to your studio monitors.
19. line inputs channel 1 to 16, these balanced / unbalanced 1/4" TRS connectors are used to input
up to 16 simultaneously available analog line signals. Input channels 5 to 16 are always
provided as line input signal, while for channels 1 to 4 you can select between the inputs on the
front panel or these inputs on the backside with the switches on the front panel of U168 XT.
