APPENDIX B
SPECIFICATIONS
Model 192C/CHP/F Antenna Specifications
Revised: 13 Apr 05 APX B- 7 EST P/N AA104

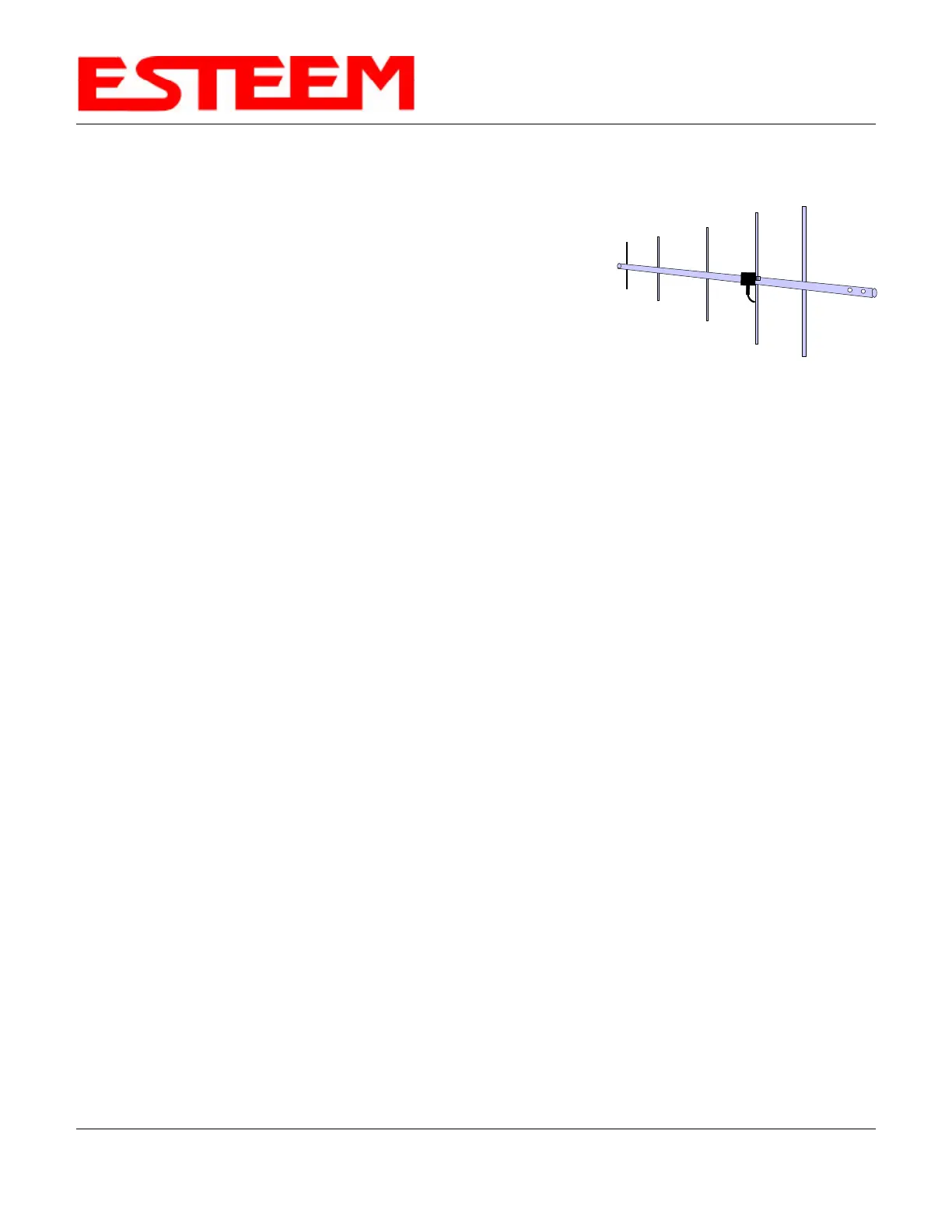

Model No: AA202C & AA202F
Antenna Type: Directional, DC grounded, 5 element yagi.
Applications: Fixed base.
Frequency: 450 to 470 MHz - AA202C
400 to 420 MHz - AA202F
Polarization: Vertical or Horizontal
Impedance: 50 ohms
Gain: 10 dB
VSWR: < 1.5
Front To Back Ratio: 20 dB
Horizontal Beamwidth: 59 degrees
Vertical Beamwidth: 53 degrees
Antenna Material: High strength aluminum with gold chromate finish.
Mounting Hardware: Heavy duty U bolts for mounting up to 2 1/8 in. pipe with right angle mount or direct panel
mount.
Antenna Connector: UHF Female (SO-239)
Maximum Power Input: 300 Watts
Antenna Envelope: 34.5 in. length by 13.25 in. width
Windload (RWV): 100 mph
Weight: 1.68 lbs.
Model AA202C/F
