Eswood CI-3B - Recycling Thermostat Adjustment; Overriding Thermostat Adjustment

ESWOOD OPERATING MANUAL CI-3B June 2011
7
SET POINT
(HOLE)
SET POINT
This ensures that the heating elements are safely covered with water.
Failure to observe the above will cause damage to the elements
that is not covered under warranty.
8. Check for leaks, then reset the thermostats as follows:
1. The recycling thermostat located on the rinse cylinder
must be set so that the arrow on the knob points to the
centre of the hole on the mounting bracket. (See Fig.1)
2. The overriding thermostat adjustment is located at the
right hand side front corner of machine, to be adjusted by
turning the shaft clockwise (with a screwdriver) so that it
aligns with the silver line on the set point. (refer figure 2.)
9. Refit the lower panel.

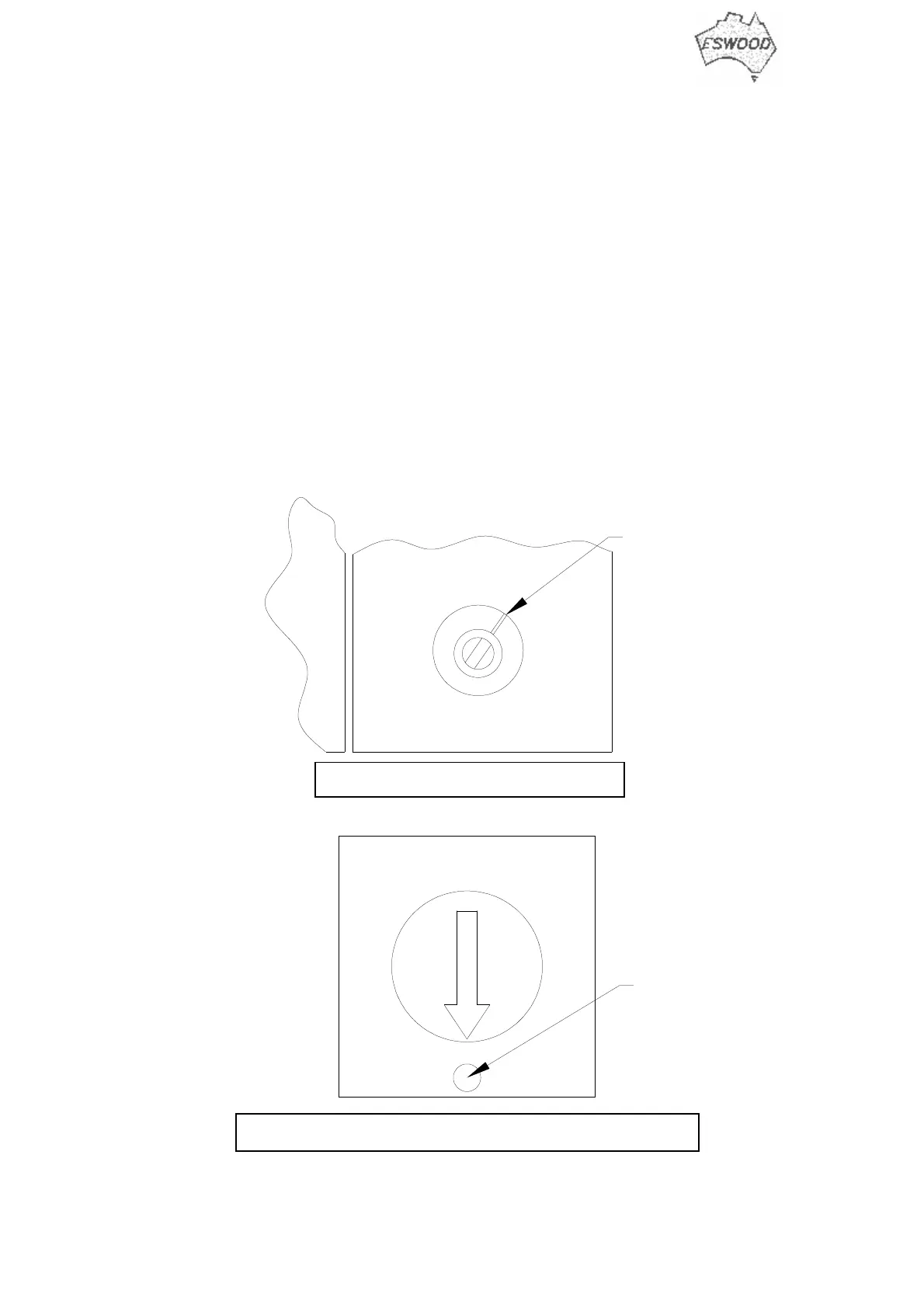

OVERIDING THERMOSTAT FIGURE 1
CYCLING THERMOSTAT ON RINSE CYLINDER FIGURE 2
