Installing the isolator
Remove the blind cover from the top of the ash box.

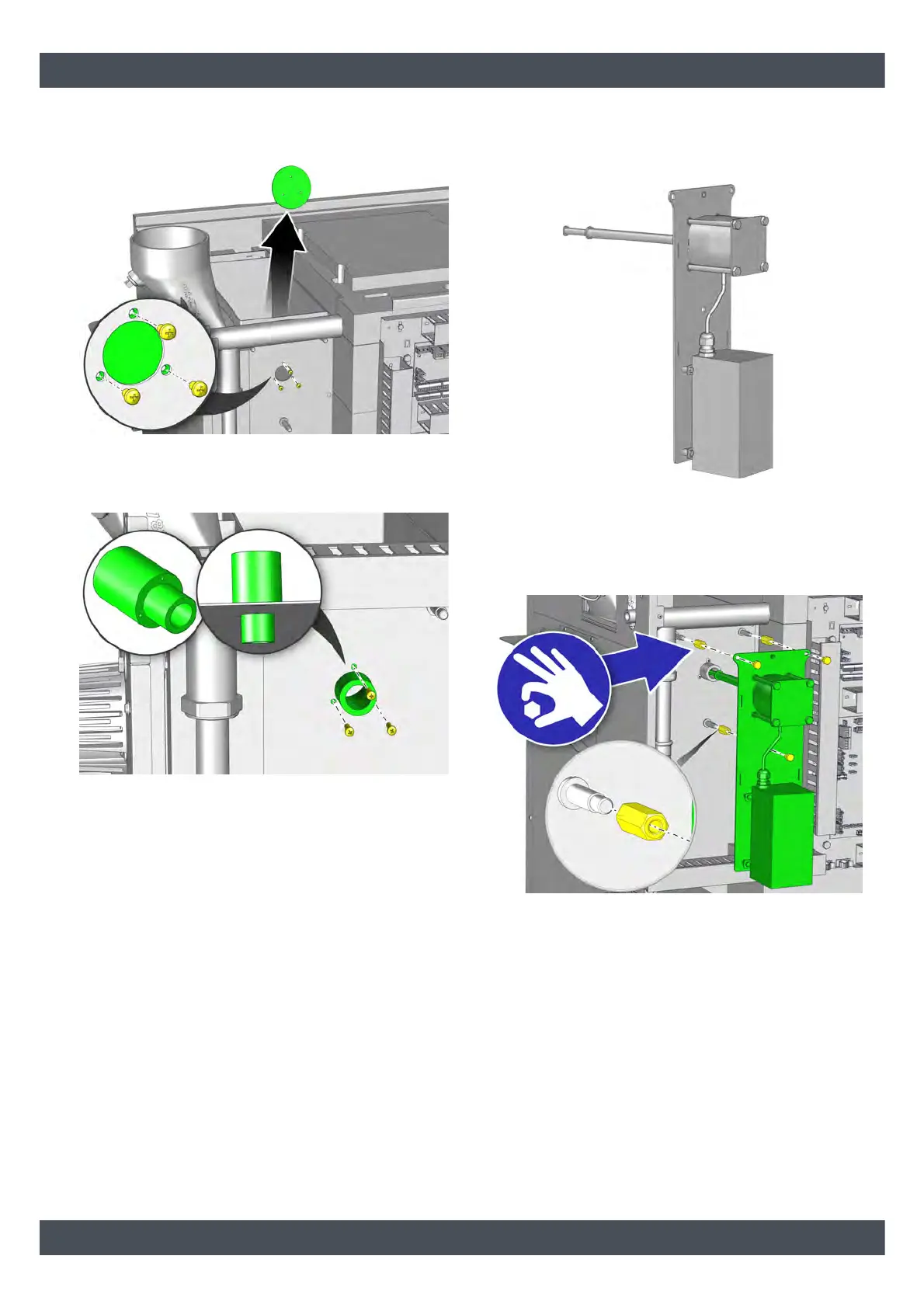

Fig. 2-14: Blind cover
Insert the isolator from the inside and fasten with the
screws.
Fig. 2-15: Isolator
Mounting the high voltage unit
Mount the support with the high voltage unit on the
boiler.
Fig. 2-16: High voltage unit
When threading in, ensure that the insulator is not
damaged. Fasten the support to the boiler using the
long nuts and screws. Only hand tighten the nuts and
screws.
Fig. 2-17: Long nut
