Installation
Mounting the discharge electrode
Carefully insert the discharge electrode into the flue
duct so that it is not bent.

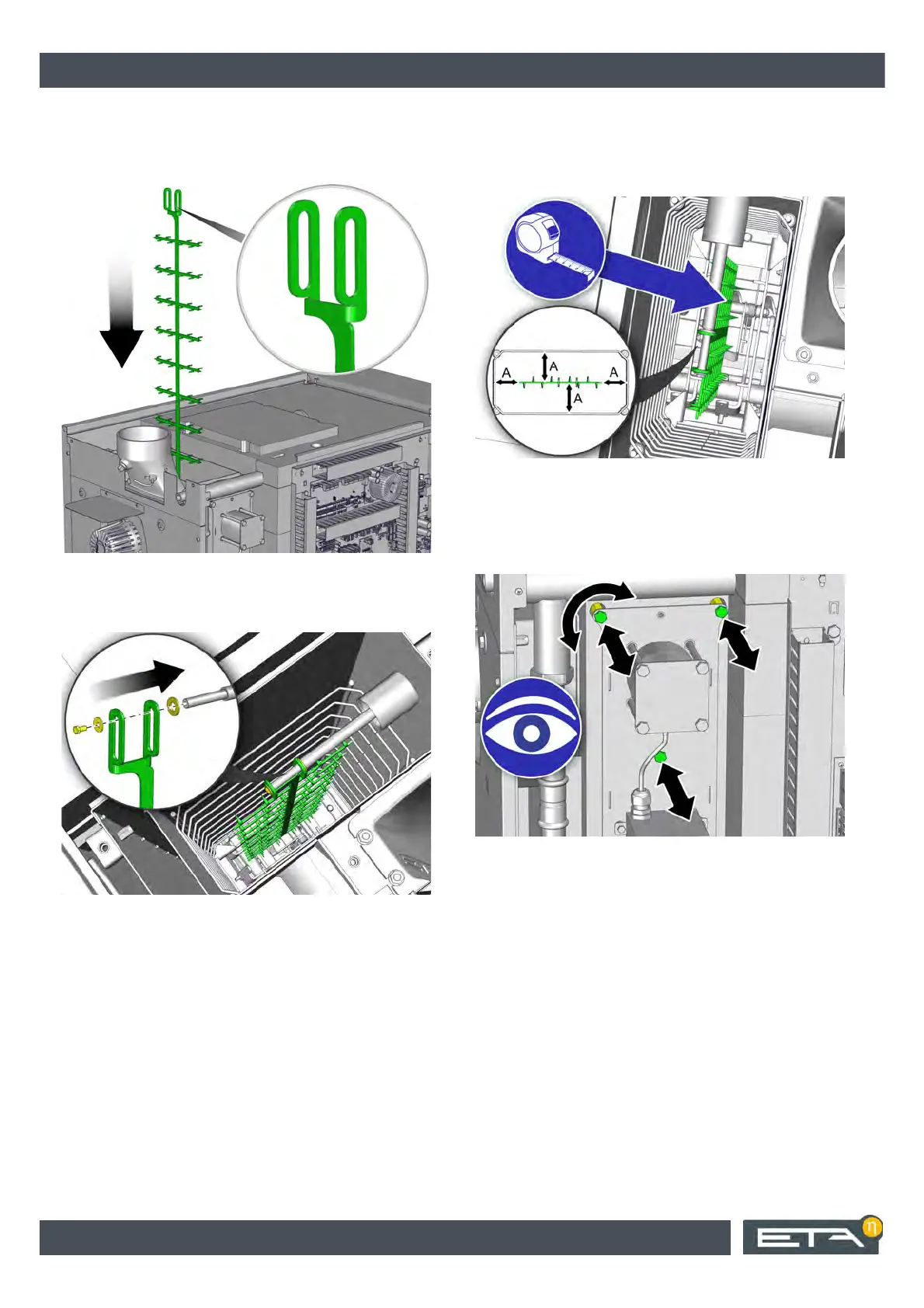

Fig. 2-18: Discharge electrode
Secure the discharge electrode with a washer and
screw.
Fig. 2-19: Washer and screw
The electrode must be in the centre of the precipitator,
so that the flue gas can be optimally cleaned.
Therefore, check the clearance of the electrodes to the
inner walls.
Fig. 2-20: Electrode
With the long nuts on the support of the high-voltage
unit, the alignment of the electrode can be adapted as
required. Once the alignment is correct, tighten the
screws.
Fig. 2-21: Adjusting the orientation with the long nuts
