Etec EKEPC3 - Single Phase 32 A Wiring Diagram

5
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile

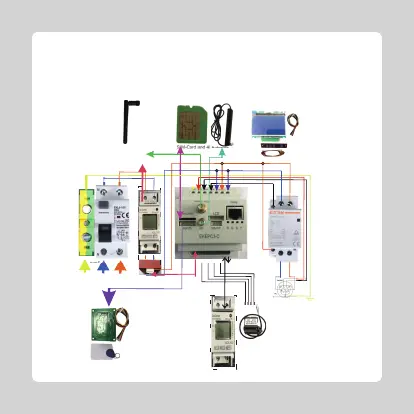

Wiringdiagramofsinglephase32A
6mm
2
6mm
2
6mm
2
6mm
2
6mm
2
1.5mm
2
1.5mm
2
6mm
2
220V 32A
RFID--Lines--Card
LCD--Lines
LED--Lines
X4
DLB With Meter
Lock
Wi fiWith Antenna
PE
SIM-Card and 4GAntenna
PE
RCMU
Connect Meter Rs485
Rs485
Rs485
Modbus9600,n,8,1
Address:01H
Modbus9600,n,8,1
Address:02H
B
A
Note: figure a does not need to
access the system when the billing
function, over-voltage protection
function,and over-current protection
function are not enabled. Figure B
can be disconnected from the system
when the DLB function is not enabled.
Rs485
Power Input
