Etherma LAVA - Installation Instructions for Electricians; Electricians Important Notes; Wall Mounting Procedure Details; Minimum Installation Distances

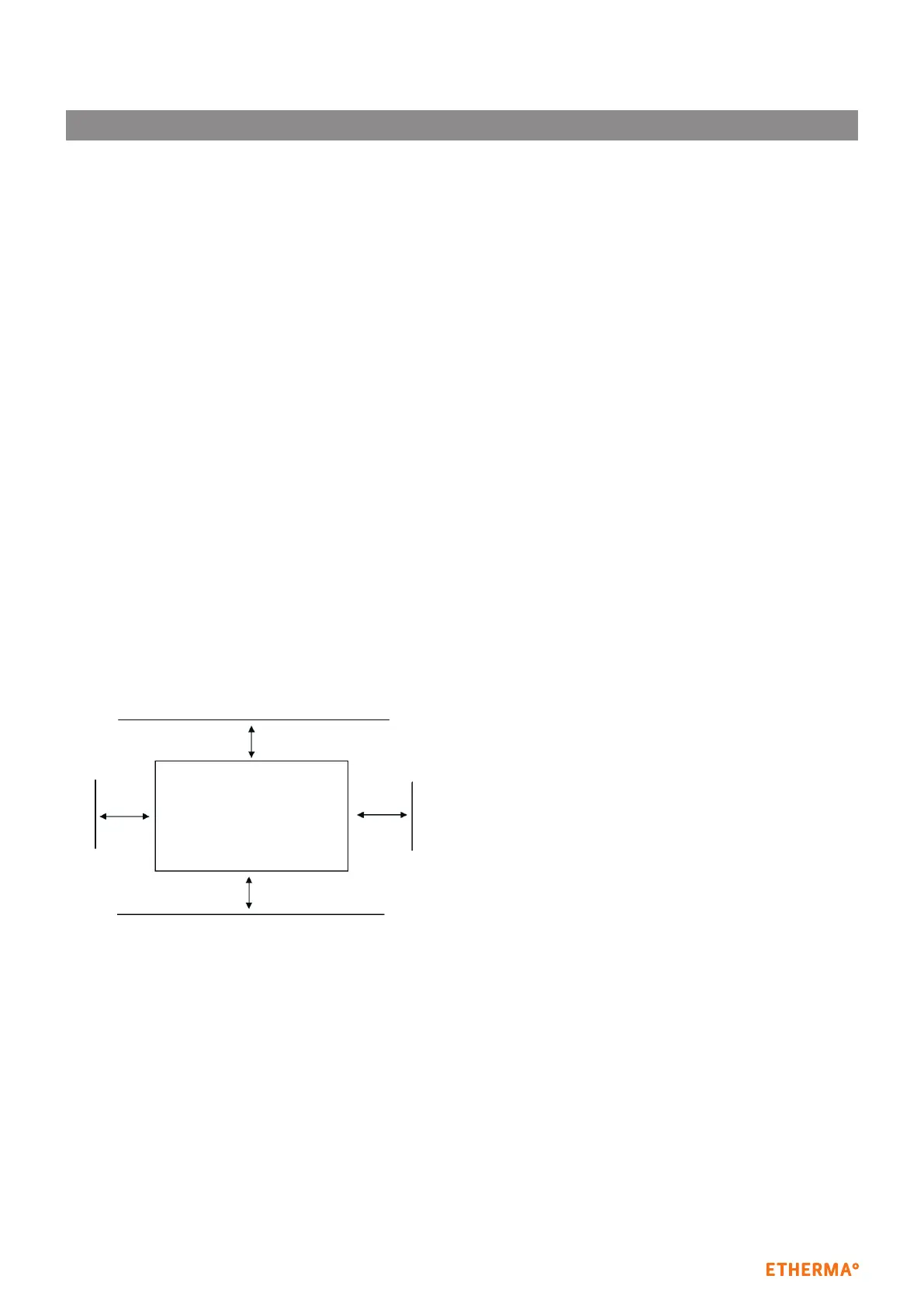

Graphic: Minimum mounting distances
CAUTION:
Any kind of load on the surface, whether from persons or ob-
jects leaning against it or from other forces, must be avoided.
INSTALLATION AND USAGE INSTRUCTION FOR THE ELECTRICIAN
35 mm
35 mm
35 mm
35 mm
Important Notes:
ETHERMA’s LAVA
®
design infrared heater fullll the relevant
safety regulations.
› Installation and commissioning, repair and service work
must be carried out by a licensed professional or a qualied
person in compliance with all security regulations. First this
person must check if the electrical installation complies with
the applicable standards in the house. The responsibility of
the manufacturer is limited to the supply of the device.
› Please note the country-specic security rules.
› Local protection measures have to be observed.
› The devices are designed for wall mounting (vertical or ho-
rizontal) with the appropriate accessories (see included de-
livery).
› Wall mounting of the design infrared heater corresponds
IP 24 protection.
› When installing the unit in a bathroom note the areas of pro-
tection to DIN VDE 0100 Part 701.
› Specied minimum distances must be respected.
Installation and minimum distances:
LAVA
®
design infrared heaters can be mounted horizontally or
vertically on the wall. They are positioned so that ammable
items can not be ignited. Mind the minimum distances, particu-
larly to ammable objects like curtains, upholstered furniture,
and so on are correct. Please make sure, that the glass heating
device can radiate free into space.
Assembly of the heating device:
Please check before installing the power cable to the radiator,
and the glass plate. There shouldn’t be any damage.
Wall mounting:
1. Perform wall-holes – please note the predetermined hole-
pattern (see p. 6 ff.).
2. Mount the mounting bracket (see delivery) on the wall Note:
screws and anchors (not included) must match the building
material of the wall.
3. Position cable clamp and place LAVA
®
infrared heater on the
wall and tighten the screws completely.
4. To protect the glass radiator against unintentional take down,
etc. the protection-plate (included in delivery) should be afxed
to one of the 4 mounting brackets.
5
INSTALLATION AND USAGE INSTRUCTION | LAVA
®
DESIGN INFRARED HEATER
