Etherma LAVA - Page 6

ATTENTION: Mind minimum distances! Use required mounting holes!

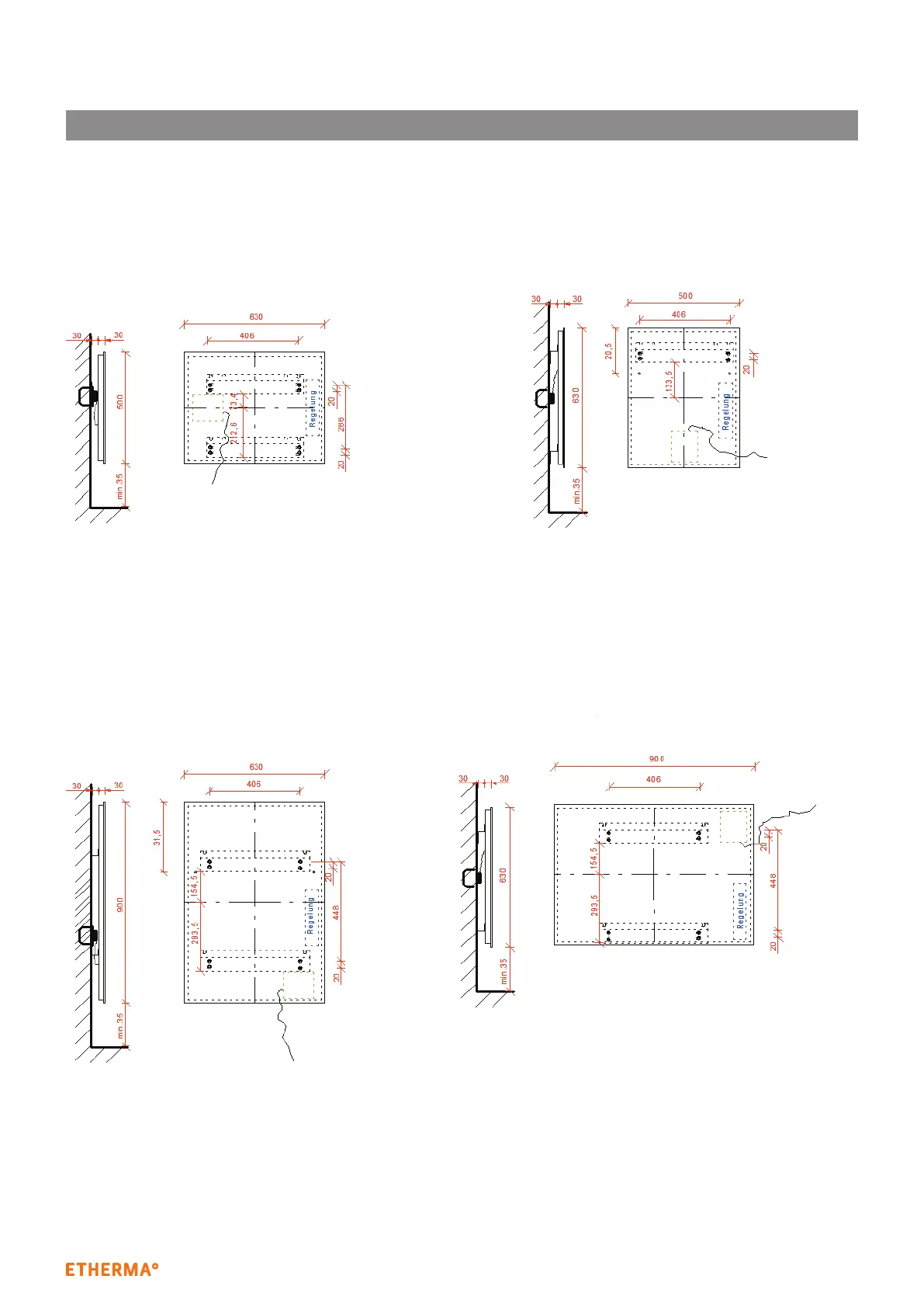

HOLE SPACING FOR DRILLING – WALL MOUNTING
LAVA
®
BASIC | GLAS | CERAMIC | Design Your LAVA
®
| IMAGE 250
LAVA
®
BASIC | GLAS | CERAMIC | Design Your LAVA
®
| IMAGE 500
vertical
front view
vertical
front view
horizontal
front view
horizontal
front view
cable with plug
cable with plug
cable with plug
cable with plug
6
INSTALLATION AND USAGE INSTRUCTION | LAVA
®
DESIGN INFRARED HEATER
