Delivery ceiling mounting:
LAVA
®
design infrared heater
› 1 x hardware ceiling mounting:
- 4 x ceiling mounting bracket
- 4 x screw M3 x 6
- 4 x LAVA Secure – glass safety hook
- 4 x hex bolt M8 x 20
(optional might already preinstalled on the device)
- 1 x cable holder
After xing do not tighten completely!
DELIVERY | PACKAGING CEILING MOUNTING
The LAVA
®
design infrared heater has to be xed only with the
supplied mounting hardware for ceilings, which are included.
Screws and anchors (not included) must correspond with the
building material of the ceiling (masonry, concrete, plaster-
board, etc.). The ceiling must have a at surface.
Ceiling installation:
1. Drill the holes into the ceiling – please observe the prescri-
bed distances between holes (see p.10 ff).
2. Mount the assembly rails on the ceiling. CAUTION: screws
and dowels (not included in the scope of delivery) must corres-
pond to the construction material of the ceiling.
3. Attach safety hooks and distance washers to the 4 assembly
screws on the body.
4. Attach the LAVA
®
design infrared heater to the ceiling. Some
safety hooks for ceiling installation are already tted at the fac-
tory – between the glass front and the body – to provide further
mechanical security to the glass front. Not valid for LAVA
®
BASIC-DM.
5. Finally tighten the installation screws.
6. Only devices in the series LAVA
®
BASIC-DM and LAVA
®
GLAS-DM may be installed on the ceiling.
For ceiling mounting there are own glass-safety hooks – LAVA
®
Secure – already factory-installed, which also protect the glass
radiator. Ceiling assembly must be separately ordered
LAVA
®
Secure
LAVA
®
Ceiling Holder

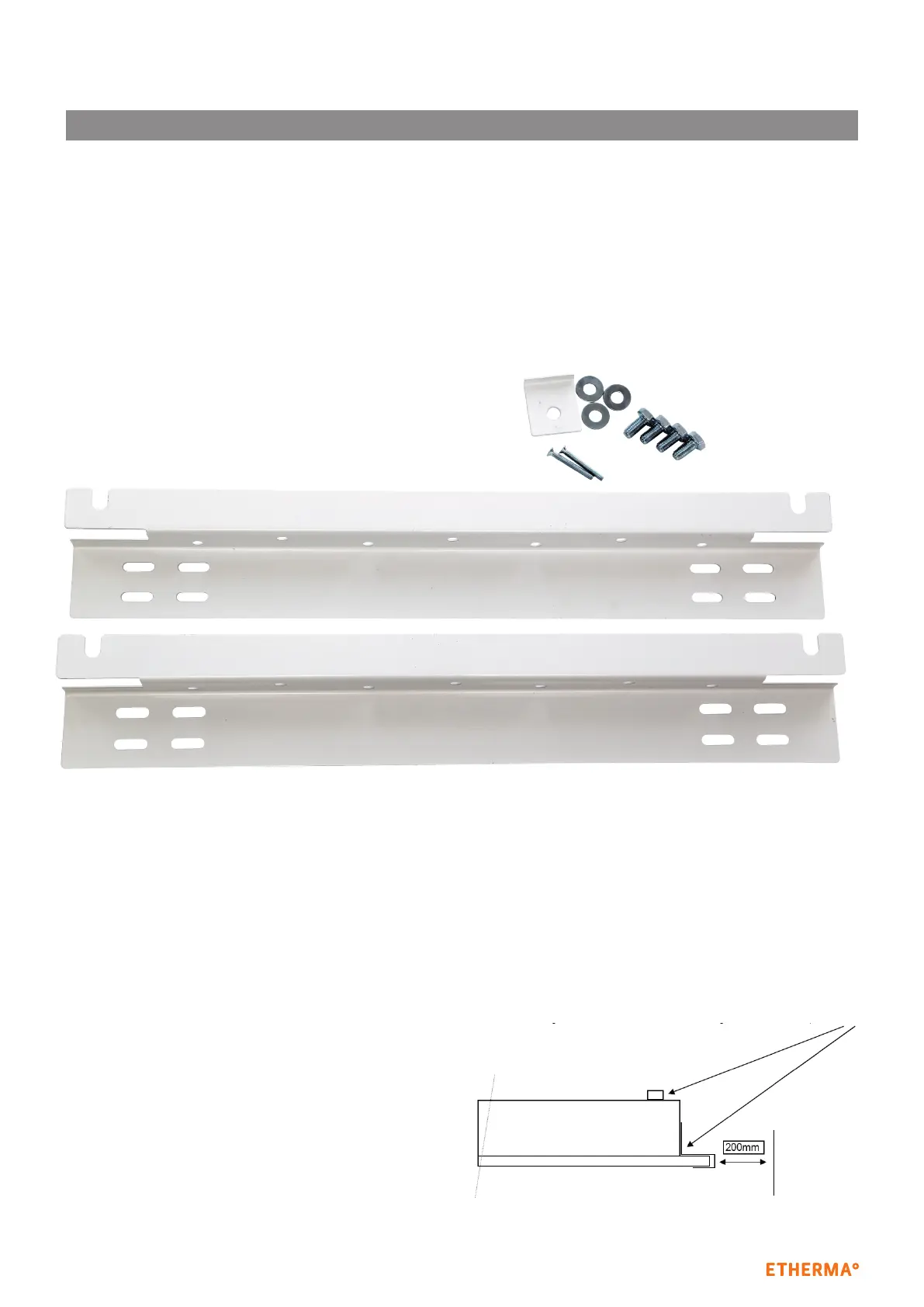

Graphic: Ceiling assembly - LAVA
®
design infrared heater
9
INSTALLATION AND USAGE INSTRUCTION | LAVA
®
DESIGN INFRARED HEATER
