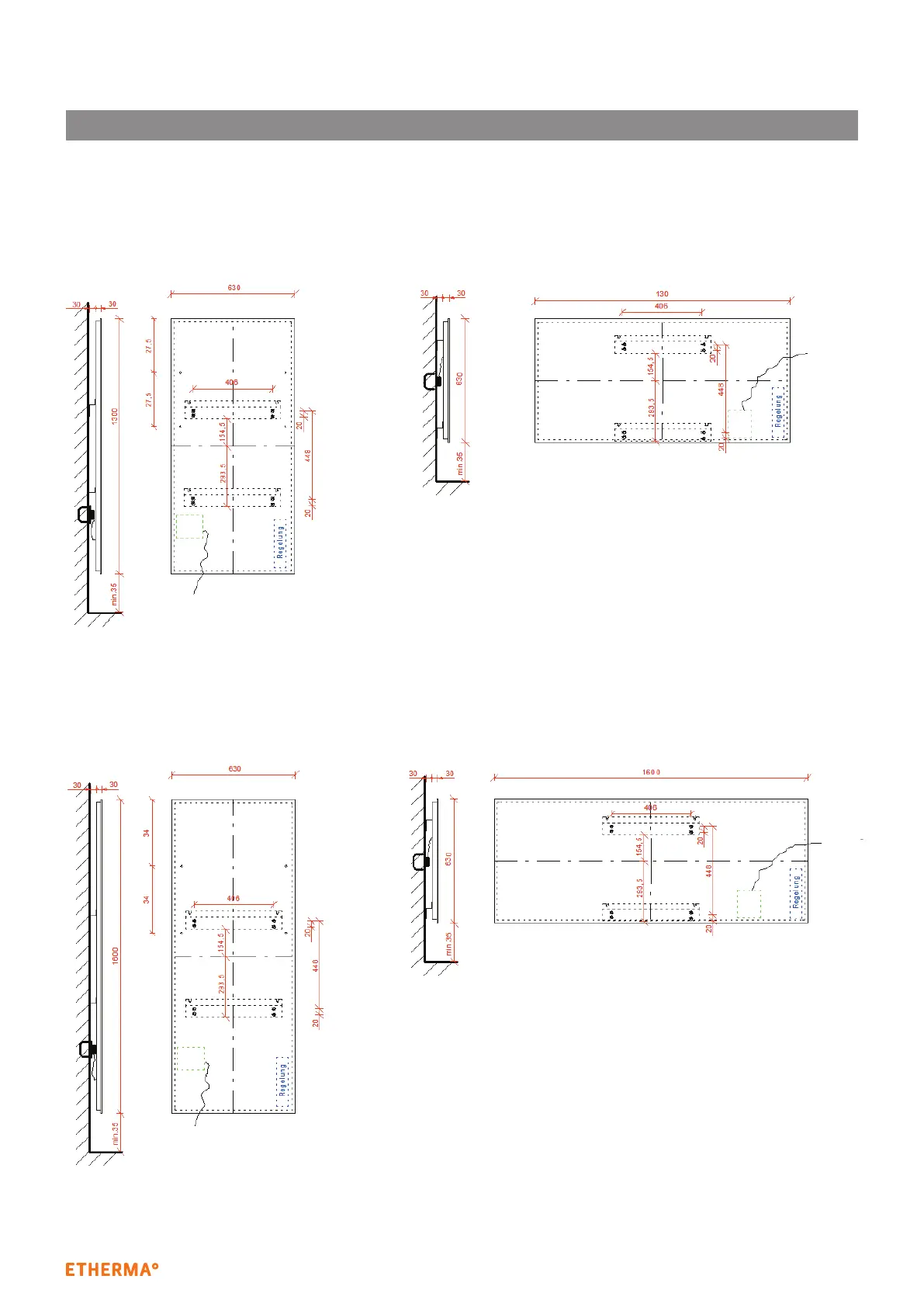

HOLE SPACING FOR DRILLING – WALL MOUNTING
LAVA
®
BASIC | GLAS | CERAMIC | Design Your LAVA
®
| IMAGE 750
LAVA
®
BASIC | GLAS | CERAMIC | Design Your LAVA
®
| IMAGE 1000
ATTENTION: Mind minimum distances! Use required mounting holes!
vertical
front view
vertical
front view
cable with plug
cable with plug
horizontal
front view
horizontal
front view
cable with plug
cable with plug
