Ⅵ. Electrical Parameters
1. Performance index
Working Voltage: 3×220-240VAC/50Hz （or 240VAC/60Hz）
Maximum Working current: 3 ×16A/220-240V（or 48A/240VAC）
Dielectric Strength: 1250V / 1 minute, no punch through
Insulation Resistance: 》200MΩ
Waterproof Level: IPX5
Electric Shock Protection Level: Class 1
2. Maximum output load index
Heater： (4KW+3KW)/220-240VAC
Surfing pump： 10A/220-240VAC×3
Circulation pump： 5A/220-240VAC
Blower： 5A/220-240VAC
Replenishing valve: 5W/12VDC
Drainage valve(or pump): 5A/220-240VAC
AUX: 5A/220-240VAC
LED Light： 12W/12VAC or 12W/12VDC
Ozone： 8W/12VAC
Ⅶ. Installation Sketch
A1
A0
B1
B3
A2
A3
B4
B5
VCC
B2
WOUT
P1L
240V
BLOWER
AUX
PUMP1
PUMP2
PUMP3
1A
6A
HEAT1
CNHV
ACL1
ACN
ACL2
L2
HEAT2
ACL2
ACL2 ACL2
ACL2
VCC
AUX
P3
HT
HT2
BL
WOUT
P2
P1
P1L
HT68F13
SUB-KEY
CNHV
KEY_DIS2
BTT
3A
2A
A
HT66F40
SENSOR
OZONE
B
WIN
LIGHT-DC
3V
12VAC
LIGHT
WATER
KEY_DIS1
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ACL3

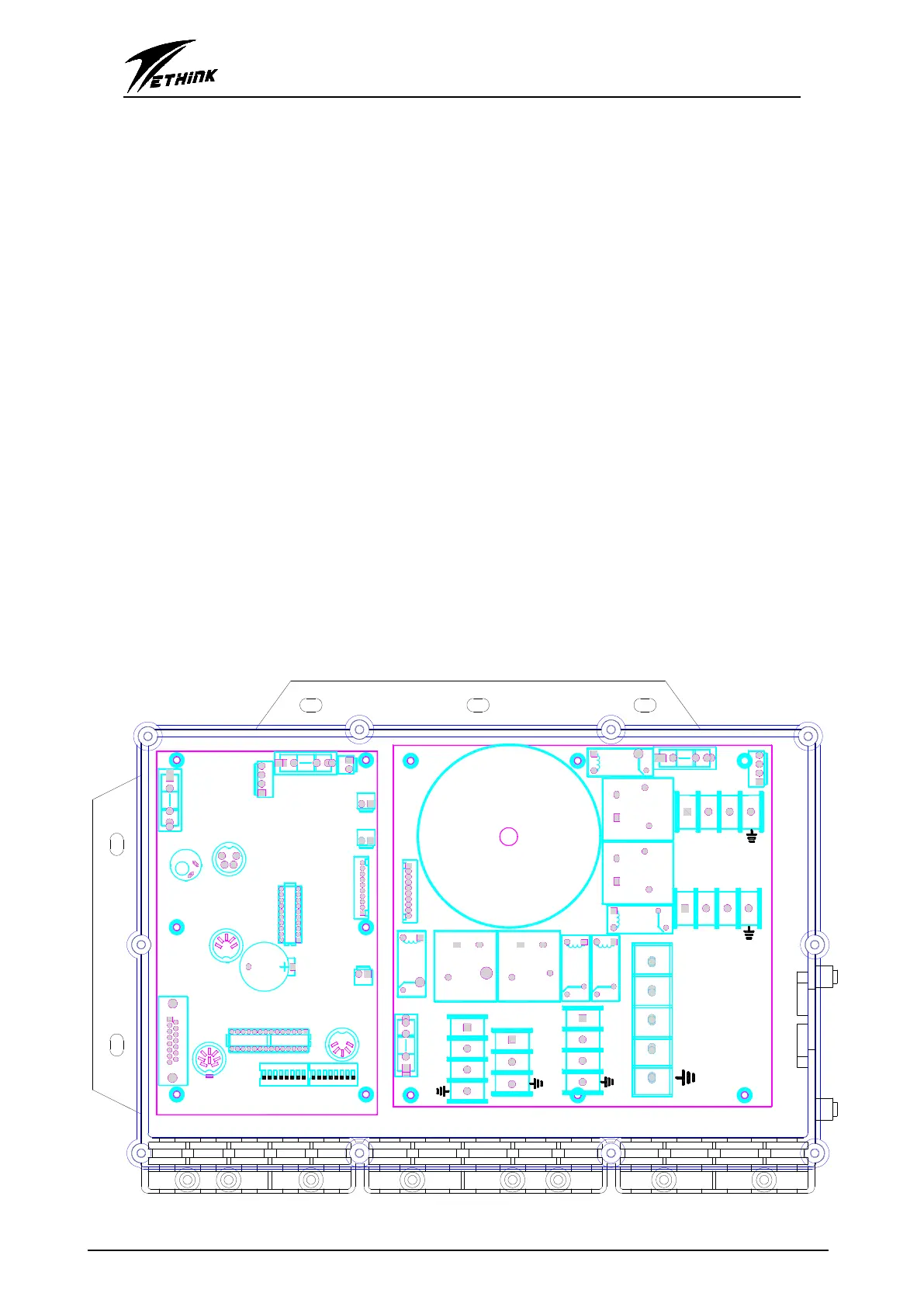

Fig. 12：Installation map for Europe version
