The class"D" amplifier is a SINGLE CHANNEL dedicated subwoofer amplifier.
Unlike other amplifiers, the Class "D" operates as a single channel and cannot be
bridged. Don't be fooled by the outputs. Two outputs are used strictly for convenience
and are paralleled internally onthe amplif ier. This means if both outputs are used with
one driver each, the amplifier sees the same load as if the same drivers are connected
to only one output terminal.
See diagram below.
- In both diagrams the amplfier sees a 2 Ohm load
- Minus can be connected directly to the battery

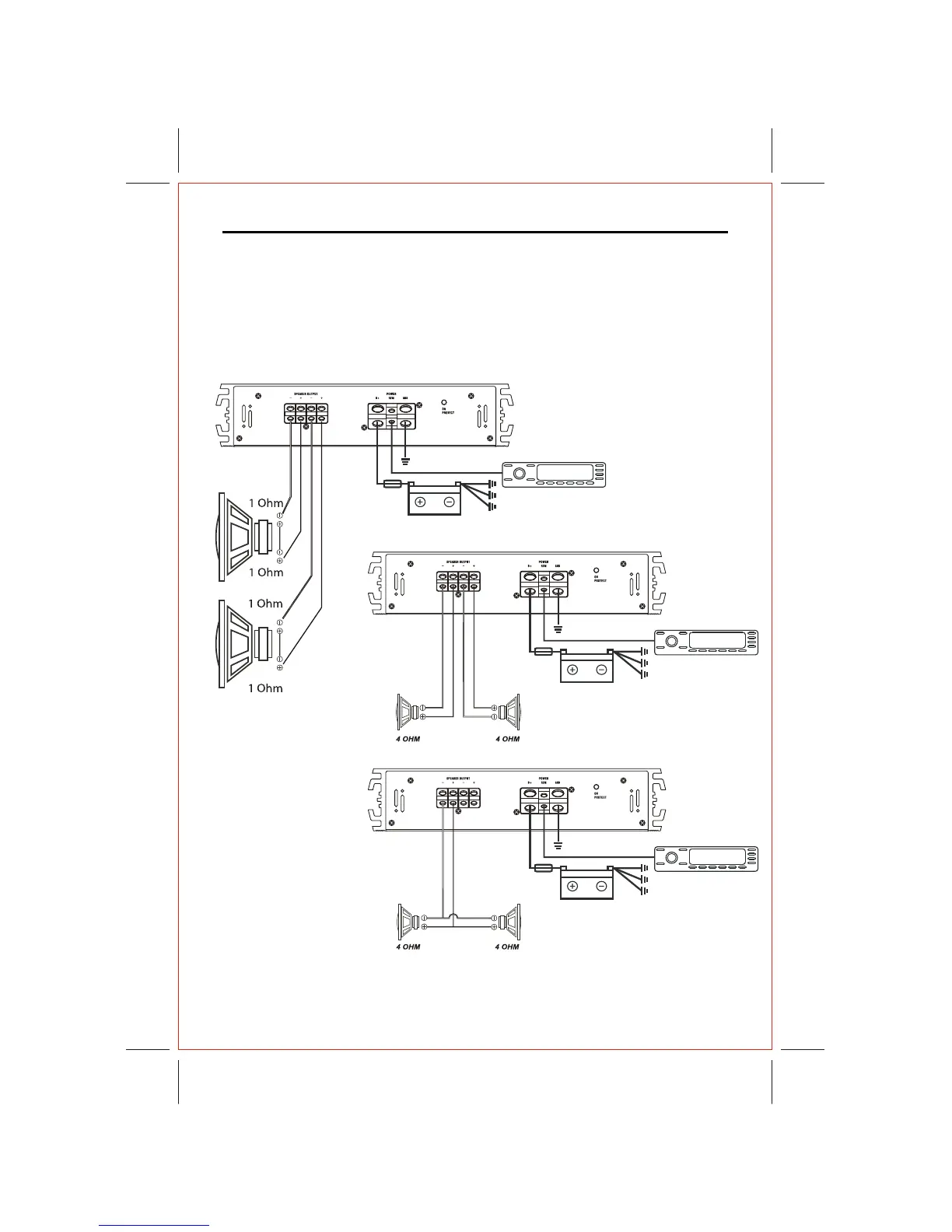

SPEAKER WIRING & ELECTRICAL CONNECTION (FA 3000)
battery
fuse
Remote
battery
Remote
fuse
battery
Remote
fuse
