ETS-Lindgren Model 3116 - VSWR and Forward Power Data

Typical Data MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN
6 © EMC TEST SYSTEMS, L.P. – MARCH 2002
REV E – PN 399040
15 20 25 30 35 40
1.0
2.5
4.0
5.5
7.0
8.5
10.0
VSWR
Frequency (GHz)

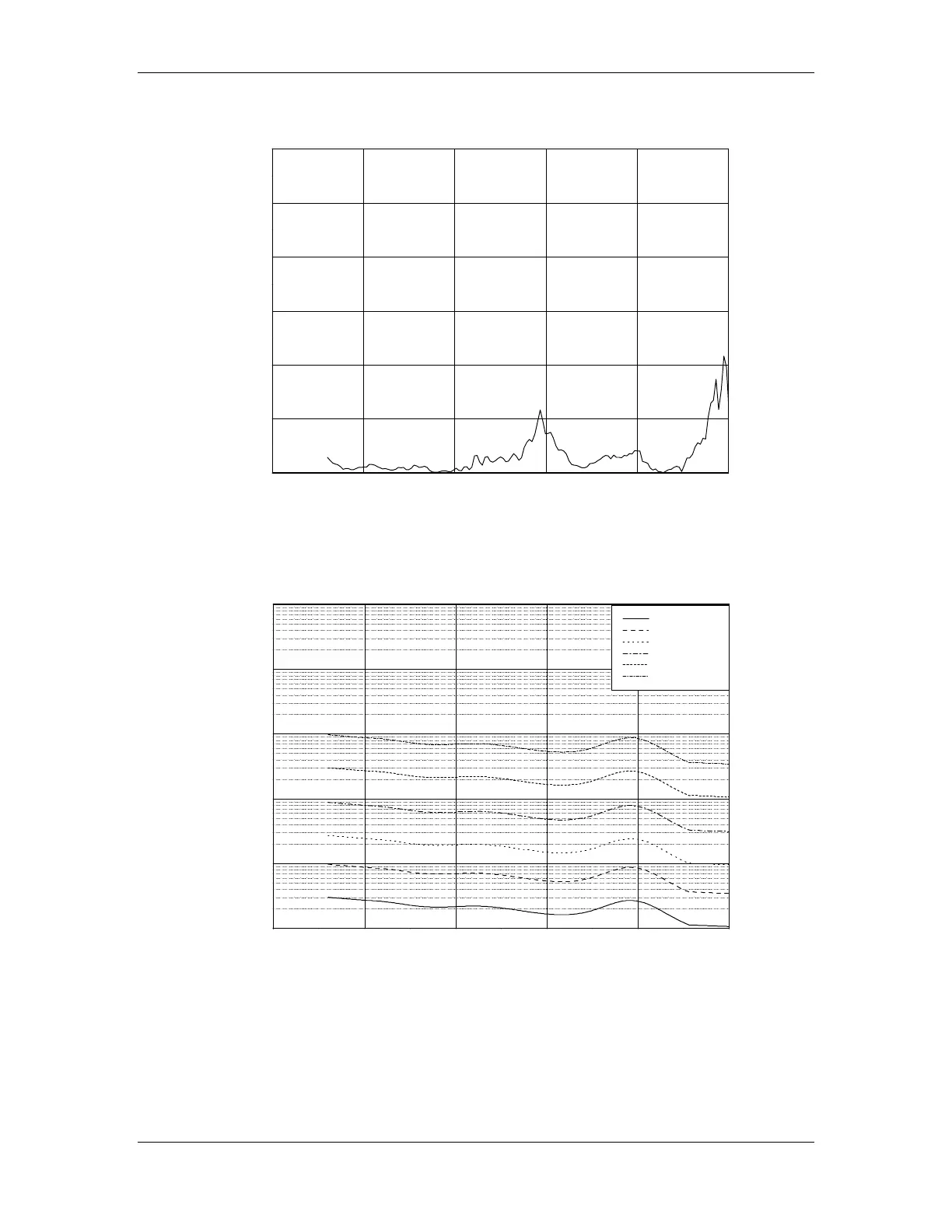

Model 3116 VSWR
15 20 25 30 35 40
1E-3
0.01
0.1
1
10
100
1 V/m CW
1 V/m 80%AM
3 V/m CW
3 V/m 80%AM
10 V/m CW
10 V/m 80%AM
Forward Power (W)
Frequency (GHz)
Model 3116 Forward Power at 1 meter 1V/m to 10 V/m
Maximum Continuous Power for the Model 3116 is 50 Watts
The Maximum Peak Power Rating for this model is 70 Watts
