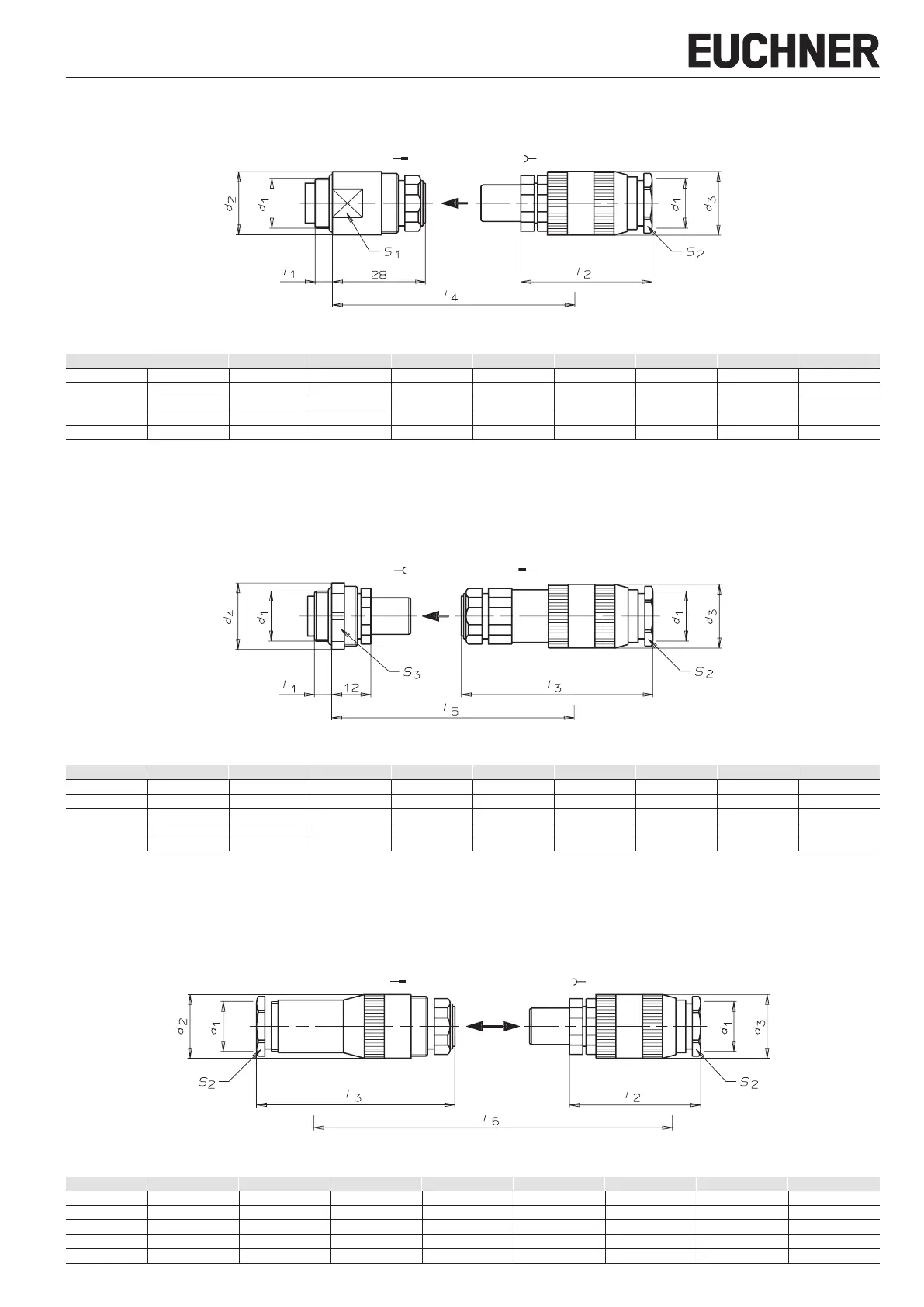

Assembly Instructions
Plug Connectors
Round design, metal encapsulated
Series SD+BS / SD.K+BS.K
Number of pins: 4 / 7 / 8 / 12 / 19
Dimensions
Number of pins d1 Ød2 Ød3 l1 l2 l4 s1 s2 Cable Ø
4 PG9 19 19.5 5 44 72 AF17 AF16 6-8
7 PG11 23 23.5 5 46 74 AF21 AF19 8-10
8 PG13.5 25 25.5 5 52 80 AF22 AF22 10-12
12 PG16 29 29.5 5 54 82 AF27 AF24 12-14
19 PG21 36 38.5 7 68 96 AF32 AF32 14-18
Inserted
Additional space required for insertion min. 15mm
Male socketSD..
Female plugBS..
Round design, metal encapsulated
Series BD+SS / BD.K+SS.K
Number of pins: 4 / 7 / 8 / 12 / 19
Dimensions
Number of pins d1 Ød3 Ød4 l1 l3 l5 s2 s3 Cable Ø
4 PG 9 19.5 20 5 62 74 AF16 AF19 6-8
7 PG 11 23.5 24 5 64 76 AF19 AF22 8-10
8 PG 13.5 25.5 26.5 5 64 76 AF22 AF24 10-12
12 PG 16 29.5 33 5 72 84 AF24 AF30 12-14
19 PG 21 38.5 40 7 84 96 AF32 AF36 14-18
Inserted
Additional space required for insertion min. 15mm
Female socketBD..
Male plugSS..
Round design, coupling, metal encapsulated
Series KD+BS / KD.K+BS.K
Number of pins: 4 / 7 / 8 / 12 / 19
Dimensions
Number of pins d1 Ød2 Ød3 l2 l3 l6 s2 Cable Ø
4 PG 9 19 19.5 44 62 106 AF16 6-8
7 PG 11 23 23.5 46 64 110 AF19 8-10
8 PG 13.5 25 25.5 52 64 116 AF22 10-12
12 PG 16 29 29.5 54 72 126 AF24 12-14
19 PG 21 36 38.5 68 84 152 AF32 14-18
Inserted
Additional space required for insertion min. 15mm
Coupling socketKD..
Female plugBS..
