EUCHNER BS4 - Page 8

8
Assembly Instructions
Plug Connectors
Version without earth conductor (operating voltage max. 50V, round coding lug)

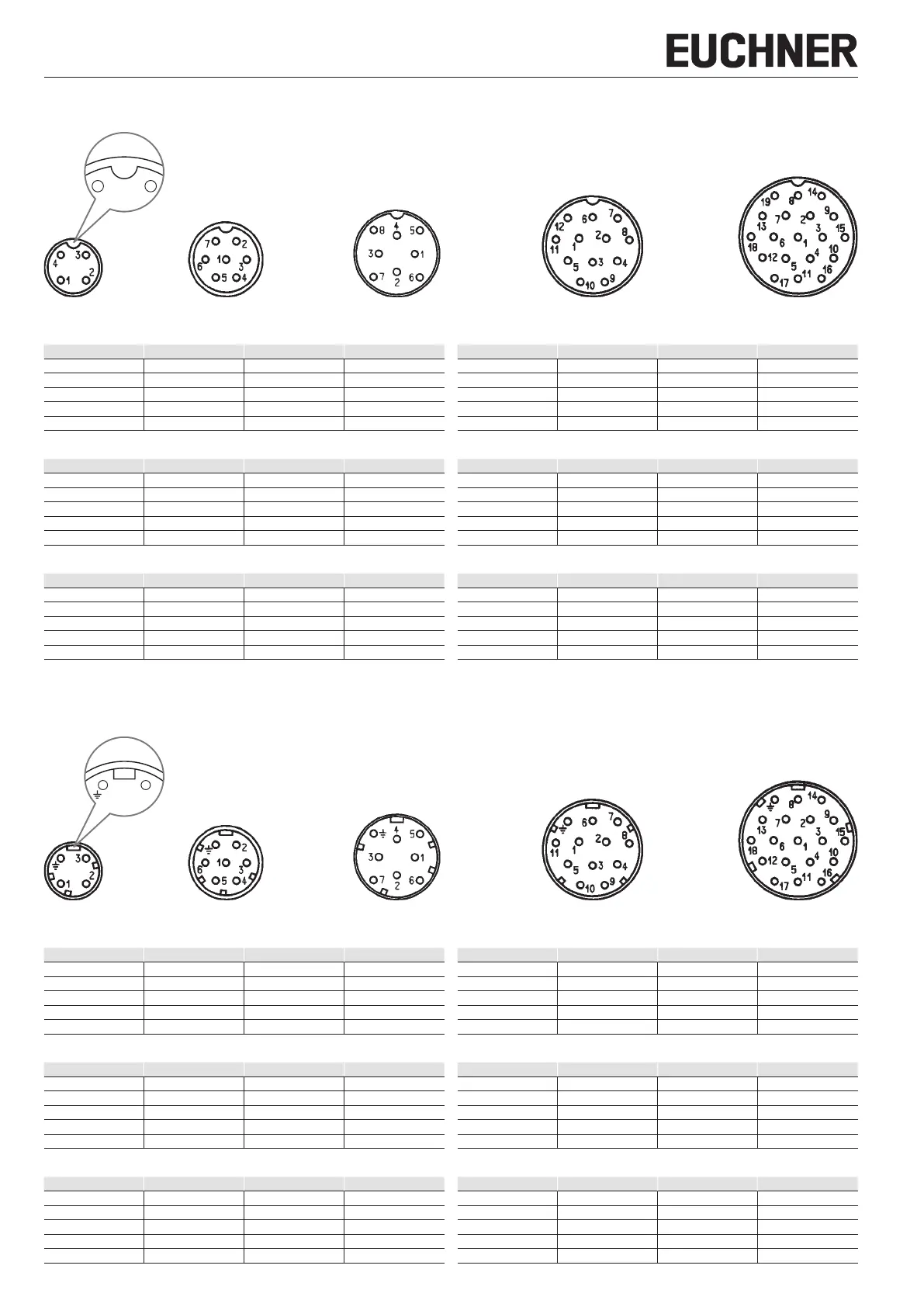

View of contacts on connection side, BS.K / BD.K
Ordering table
Male socket
Number of pins Type Order no. Weight [kg]
4 SD4K 002771 0.03
7 SD7K 002774 0.04
8 SD8K 002777 0.05
12 SD12K 026995 0.08
19 SD19K 002783 0.1
Female socket
Number of pins Type Order no. Weight [kg]
4 BD4K 002801 0.02
7 BD7K 002804 0.03
8 BD8K 002807 0.03
12 BD12K 002810 0.04
19 BD19K 002813 0.08
Coupling socket
Number of pins Type Order no. Weight [kg]
4 KD4K 002826 0.04
7 KD7K 002828 0.07
8 KD8K 002830 0.08
12 KD12K 002832 0.1
19 KD19K 002834 0.2
Female plug
Number of pins Type Order no. Weight [kg]
4 BS4K 002772 0.04
7 BS7K 002775 0.07
8 BS8K 002778 0.08
12 BS12K 002781 0.1
19 BS19K 002784 0.2
Male plug
Number of pins Type Order no. Weight [kg]
4 SS4K 002802 0.04
7 SS7K 002805 0.07
8 SS8K 002808 0.08
12 SS12K 002811 0.1
19 SS19K 002814 0.2
Female plug
Number of pins Type Order no. Weight [kg]
4 BS4K 002772 0.04
7 BS7K 002775 0.07
8 BS8K 002778 0.08
12 BS12K 002781 0.1
19 BS19K 002784 0.2
Version with leading earth conductor (operating voltage max. 250V, square coding lug)
View of contacts on connection side, BS / BD
Ordering table
Male socket
Number of pins Type Order no. Weight [kg]
4 SD4 002756 0.03
7 SD7 002759 0.04
8 SD8 002765 0.05
12 SD12 002762 0.08
19 SD19 002768 0.1
Female socket
Number of pins Type Order no. Weight [kg]
4 BD4 002786 0.02
7 BD7 002789 0.03
8 BD8 002792 0.03
12 BD12 002795 0.04
19 BD19 002798 0.08
Coupling socket
Number of pins Type Order no. Weight [kg]
4 KD4 002816 0.04
7 KD7 002818 0.07
8 KD8 002820 0.08
12 KD12 002822 0.1
19 KD19 002824 0.2
Female plug
Number of pins Type Order no. Weight [kg]
4 BS4 002757 0.04
7 BS7 002760 0.07
8 BS8 002766 0.08
12 BS12 002763 0.1
19 BS19 002769 0.2
Male plug
Number of pins Type Order no. Weight [kg]
4 SS4 002787 0.04
7 SS7 002790 0.07
8 SS8 002793 0.08
12 SS12 002796 0.1
19 SS19 002799 0.2
Female plug
Number of pins Type Order no. Weight [kg]
4 BS4 002757 0.04
7 BS7 002760 0.07
8 BS8 002766 0.08
12 BS12 002763 0.1
19 BS19 002769 0.2
