Tow-bar mounted bicycle transport
Art no. 11510 JAKE, Art no. 11524 JAKE WHITE, Art no. 11525 JAKE BLACK
Maximum loading capacity of bike carrier JAKE: 60 Kg
• Suitable for almost all kinds of towbars
• With EG-BE (European operating licence)
• No MOT demonstration necessary
• No entry in documents necessary
• Comfortable loading and unloading
• Admitted for empty runs
• For transport of 2 bicycles of all kinds
• Secure fastening at bicycle frame
• No problems with low passages, garages and parking garages
• Saves gasoline due to low aerodynamic resistance
Not suitable for aluminium towbars.
D- value minimum 5,0 KN
Dear customer, the stamped pages are the European Operating Licence.
When using the carrier it is vital to carry along this EG Operating Licence!
Towbar conditions
Not suitable for aluminium towbars
The bike carrier can be mounted on all kinds of towbars under the following conditions:
Check if towbar is suitable. The towbar must have a type approval.
The ball and the knee-joint bar have to be forged in one piece. The material of the knee-joint bar must have a quality
of minimum St 52-3.
Note:
Normally casting material of knee-joint bars is St 52-3. For example GGG 40 is not suitable. (Valid from GGG 52
only). At the moment following knee-join bars are manufactured of GGG 40:
Suitable for vehicle types
The rear carrier is of steel and powder coated, the cavities are also coated, which prevents oxidation of the metal. In
case of any damage of the coatings (scratches, dents) make sure that the protection is repaired.
All screw threads should be treated with oil or grease to ensure a permanent smooth running
Assembly instructions
The bicycle rack can be mounted easily and is then ready for use.
Screw the U-bracket in the provided sockets of the supporting frame using the M8 x 60 carriage bolts, washers and
the M8 knurled nuts. Insert the carriage bolts from outside to inside. See picture 1.

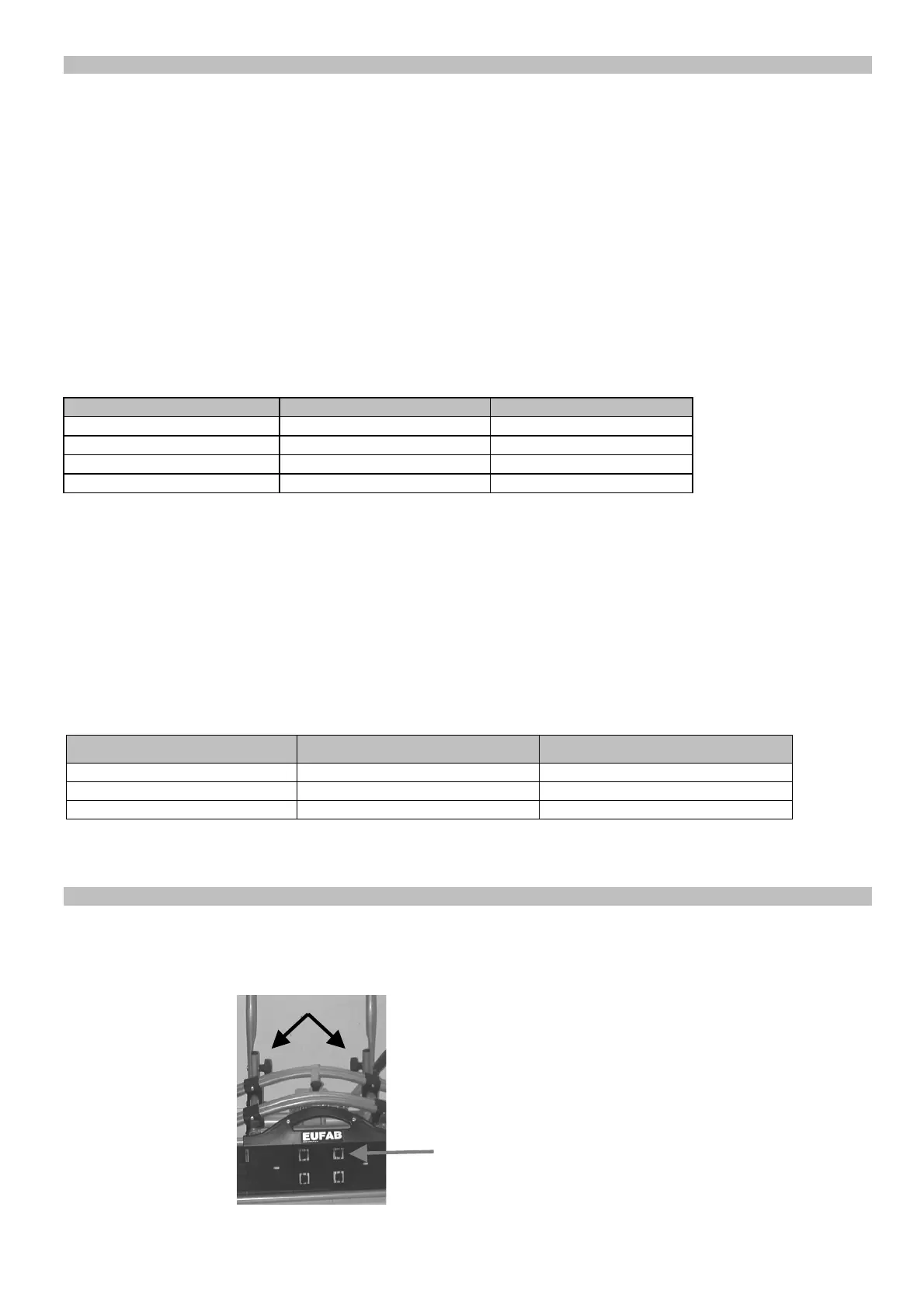

Picture 1
Mounting slots for number plate
