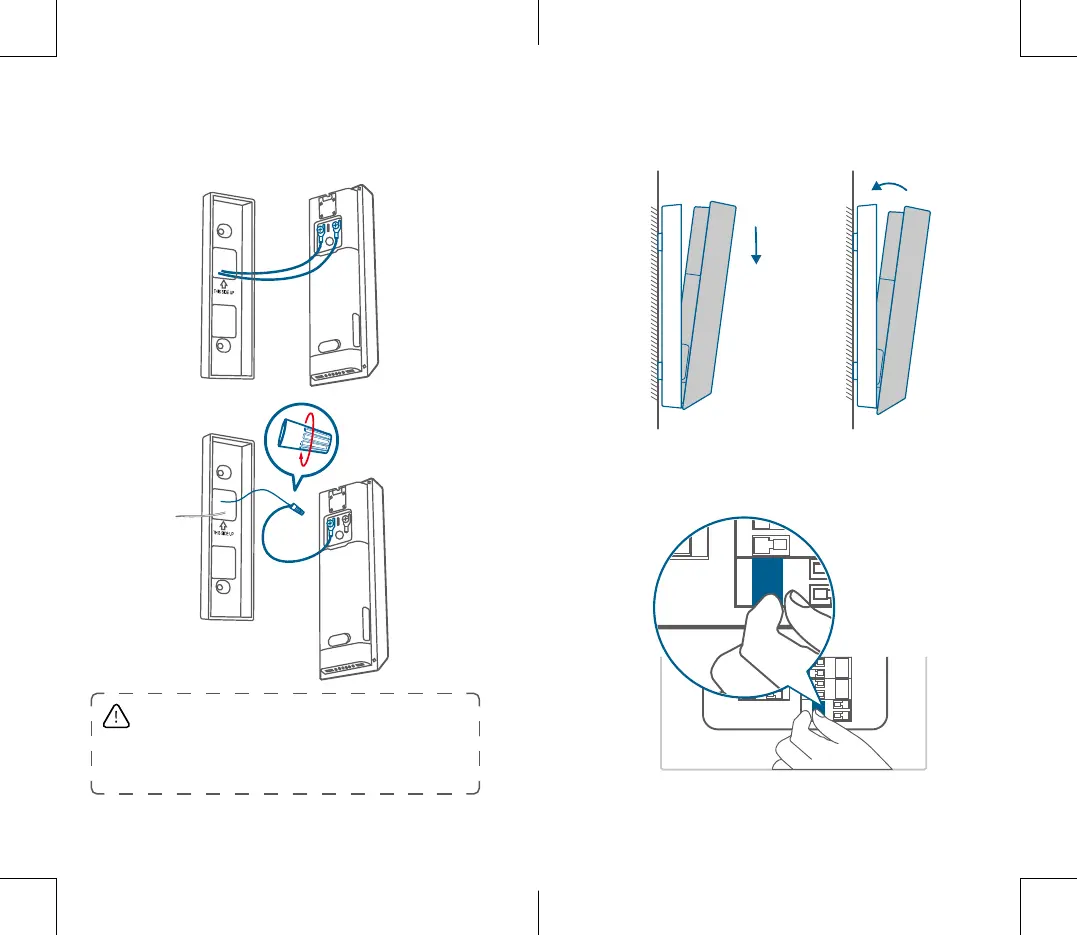

Connect the Wires to the Doorbell
Connect the wires to the terminals on the back of the
doorbell, then tighten the terminal screws. Wire can be
connected to any terminal.
SYNC
SYNC
To prevent short-circuiting, make sure the wires are not
touching each other after connecting them to the terminals.
If the wires are too short, use the extension wires and wire
nuts to make them longer. Use electrical wiring tape instead
if there is no more space on the wall for wire nuts.
Install the Doorbell
Align the doorbell with the bottom of the mounting bracket,
then press the top of the doorbell into place until it clicks.
Restore Power
Switch the main circuit breaker back to ON. You're all set!
OFF
To Next Page
