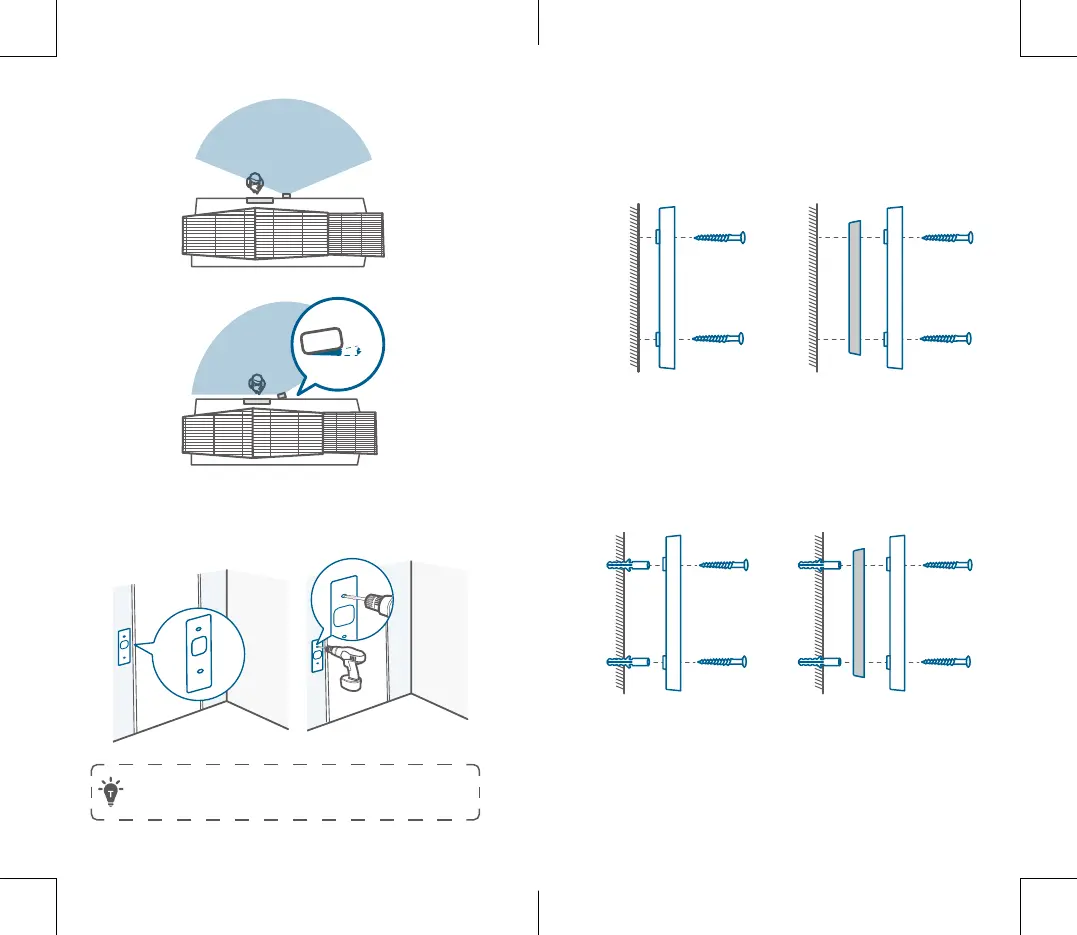

Mount the Bracket
Use the provided screws to secure the mounting bracket on
the wall.
Without 15º
Mounting Wedge
Mounting
Bracket
Mounting
Bracket
Wooden Wall
Mounting
Bracket
Mounting
Bracket
Mounting
Wedge
Mounting
Wedge
With 15°
Mounting Wedge
Hard Wall
Without 15º
Mounting Wedge
With 15°
Mounting Wedge
1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")
2. Place the screw hole positioning card against the wall
to mark the location. If mounting on a hard wall (brick,
concrete, or stucco), use a 15/64" (5.95mm) drill bit to drill 2
holes through the screw hole positioning card.
What you need: Phillips-Head Screwdriver; Power Drill
(15/64" Drill Bit)
