Eumig MINI 3 SERVOFOCUS - LENS FOCUSING; Adjustment; Adjustment Data; Caution

MINI 3 servofocus PMA

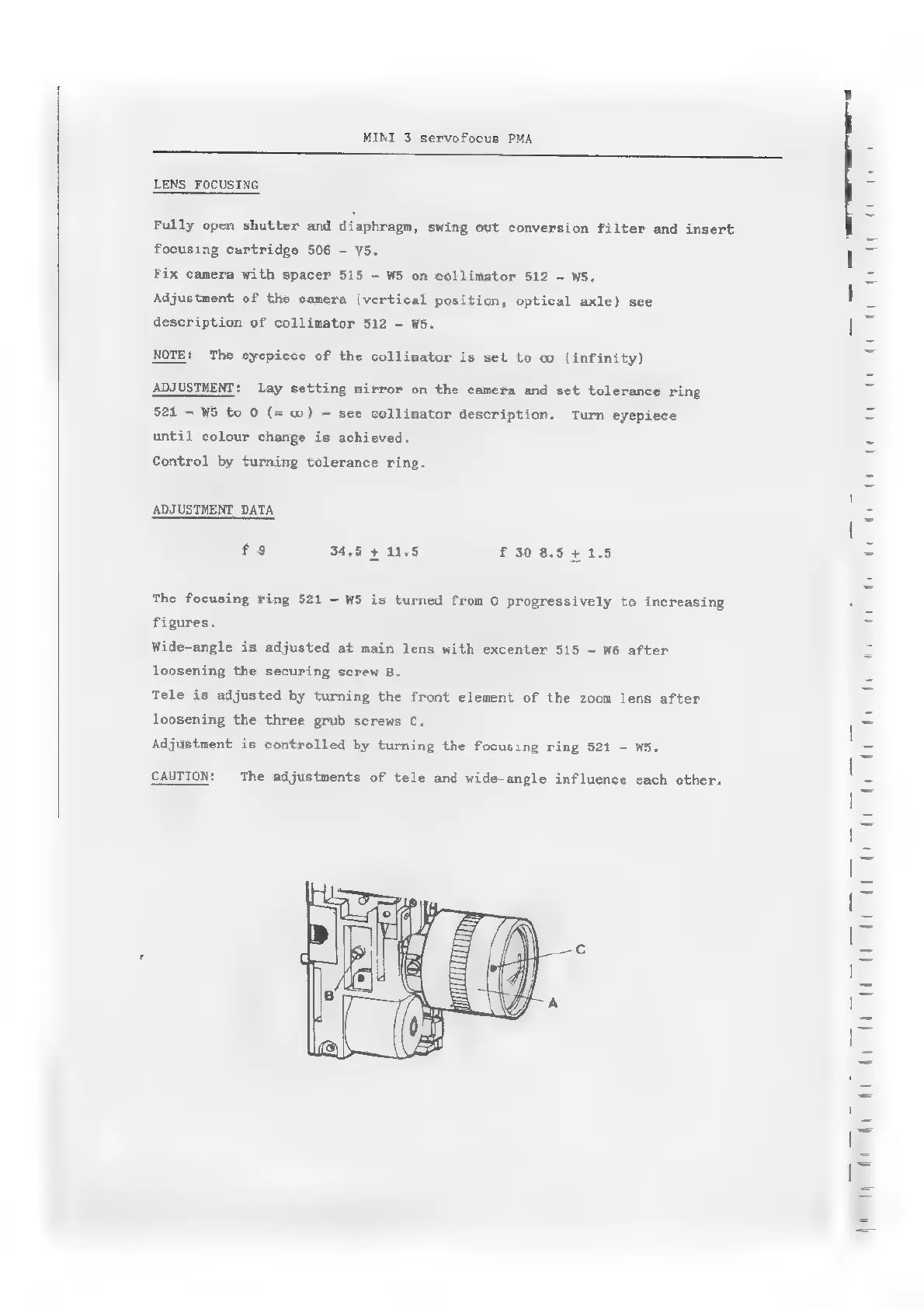

LENS FOCUSING
Fully
open
shutter
and
diaphragm,
swing
out
conversion
filter
and
insert
focusing
curtridge
506
-
V5.
Fix
camera
with
spacer
515
-
W5
on
collimator
512
-
W5.
Adjustment
of
the
camera
(vertical
position,
optical
axle)
see
description
of
collimator
512
-
ws.
NOTE:
The
eyepiece
of
the
collimator
is
set
to
oo
(infinity)
ADJUSTMENT:
Lay
setting
mirror
on
the
camera
and
set
tolerance
ring
521
-
W5
to
0
(=
w)
~
see
collimator
description.
Turn
eyepiece
until
colour
change
is
achieved.
Control by turning tolerance ring.
ADJUSTMENT DATA
f9 34.5 + 11.5 f 30 8.5 + 1.5
The
focusing
ring
521
-
WS
is
turned
from
O
progressively
to
increasing
figures.
Wide-angle
is
adjusted
at
main
lens
with
excenter
515
-
w6
after
loosening
the
securing
screw
B-
Tele
is
adjusted
by
turning
the
front
element
of
the
zoom
lens
after
loosening
the
three
grub
screws
C.
Adjustment
is
controlled
by
turning
the
focusing
ring
521
-
WS.
CAUTION:
The
adjustments
of
tele
and
wide-angle
influence
cach
other.
{
