Eumig MINI 3 SERVOFOCUS - MECHANISM PLATE 522 2200;7; Adjustments; Assembly

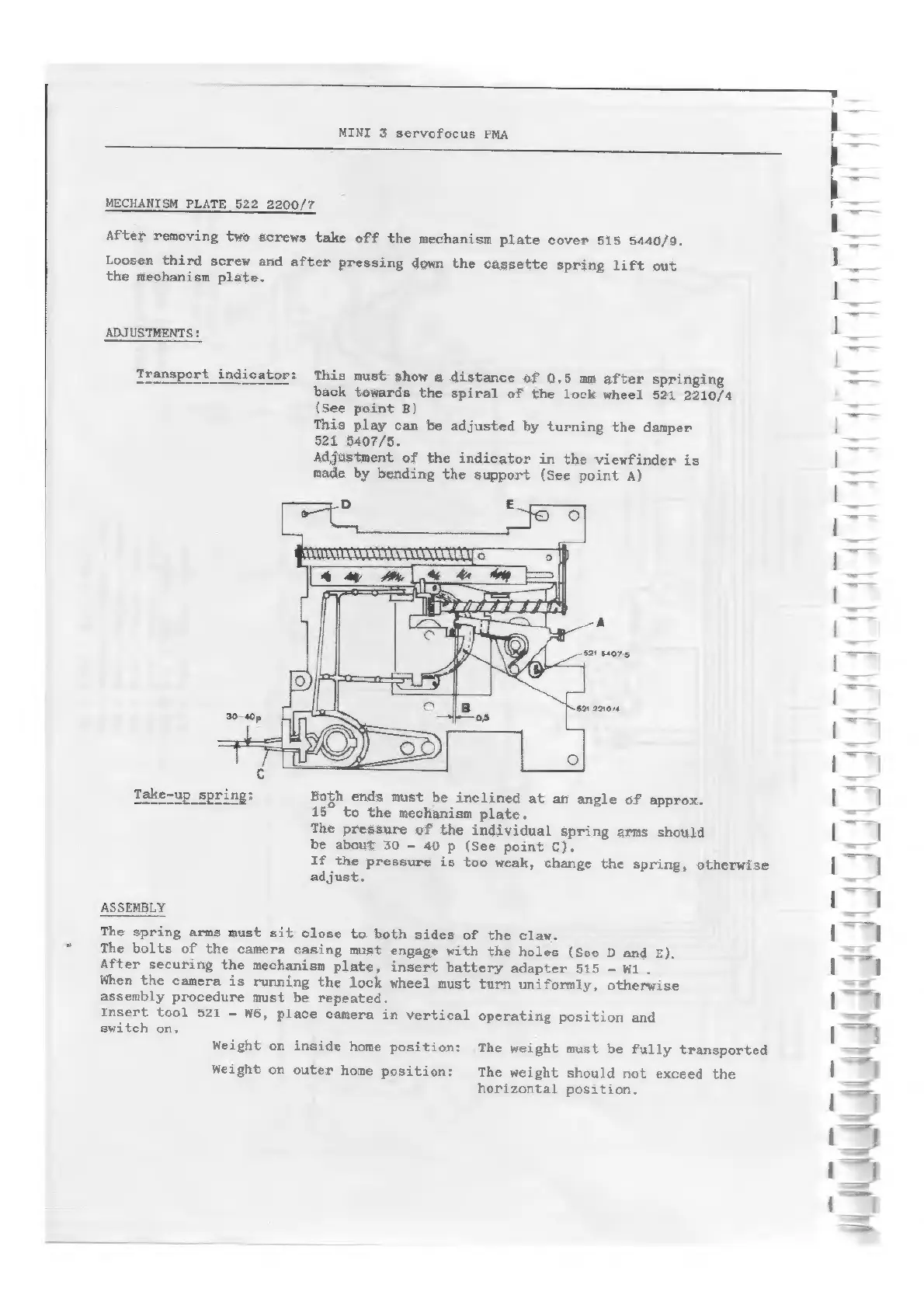

MINI 3 servofocus PMA
MECHANISM PLATE 522 2200/7
After
removing
two
screws
take
off
the
mechanism
plate
cover
515
5440/9.
Loosen
third
screw
and
after
pressing
down
the
cassette
spring
lift
out
the
mechanism
plate.
ADJUSTMENTS:
Transport
indicator:
This
must
show
a
distance
of
0.5
mm
after
springing
back
towards
the
spiral
of
the
lock
wheel
521
2210/4
(See
point
B)
This
play
can
be
adjusted
by
turning
the
damper
521
9407/5.
Adjustment
of
the
indicator
in
the
viewfinder
is
made
by
bending
the
support
(See
point
A)
--
521 S40715,
621 2210/4
Take-up
spring:
Both
ends
must
be
inclined
at
an
angle
of
approx.
15°
to
the
mechanism
plate.
The
pressure
of
the
individual
spring
arms
should
be
about
30
=
40
p
(See
point
C).
If
the
pressure
is
too
weak,
change
the
spring,
otherwise
adjust.
ASSEMBLY
The
spring
arms
must
sit
close
to
both
sides
of
the
claw.
The
bolts
of
the
camera
casing
must
engage
with
the
holes
(See
D
and
E).
After
securing
the
mechanism
plate,
insert
battery
adapter
515
-
Wi.
When
the
camera
is
running
the
lock
wheel
must
turn
uniformly,
otherwise
assembly
procedure
must
be
repeated.
Insert
tool
521
-
W6,
place
camera
in
vertical
operating
position
and
switch
on,
Weight
on
inside
home
position:
The
weight
must
be
fully
transported
Weight
on
outer
home
position:
The
weight
should
not
exceed
the
horizontal
position.
