Alarm Cancel Switch: Cancels the audible hardware fault alarm.
LED Status Indicators: Indicates the status of the power supply, cooling fans,
temperature, and file system activity. Healthy status is indicated with a green light,
faults are indicated with a red light.
USB Ports: Connect a USB storage device to update software
Connections

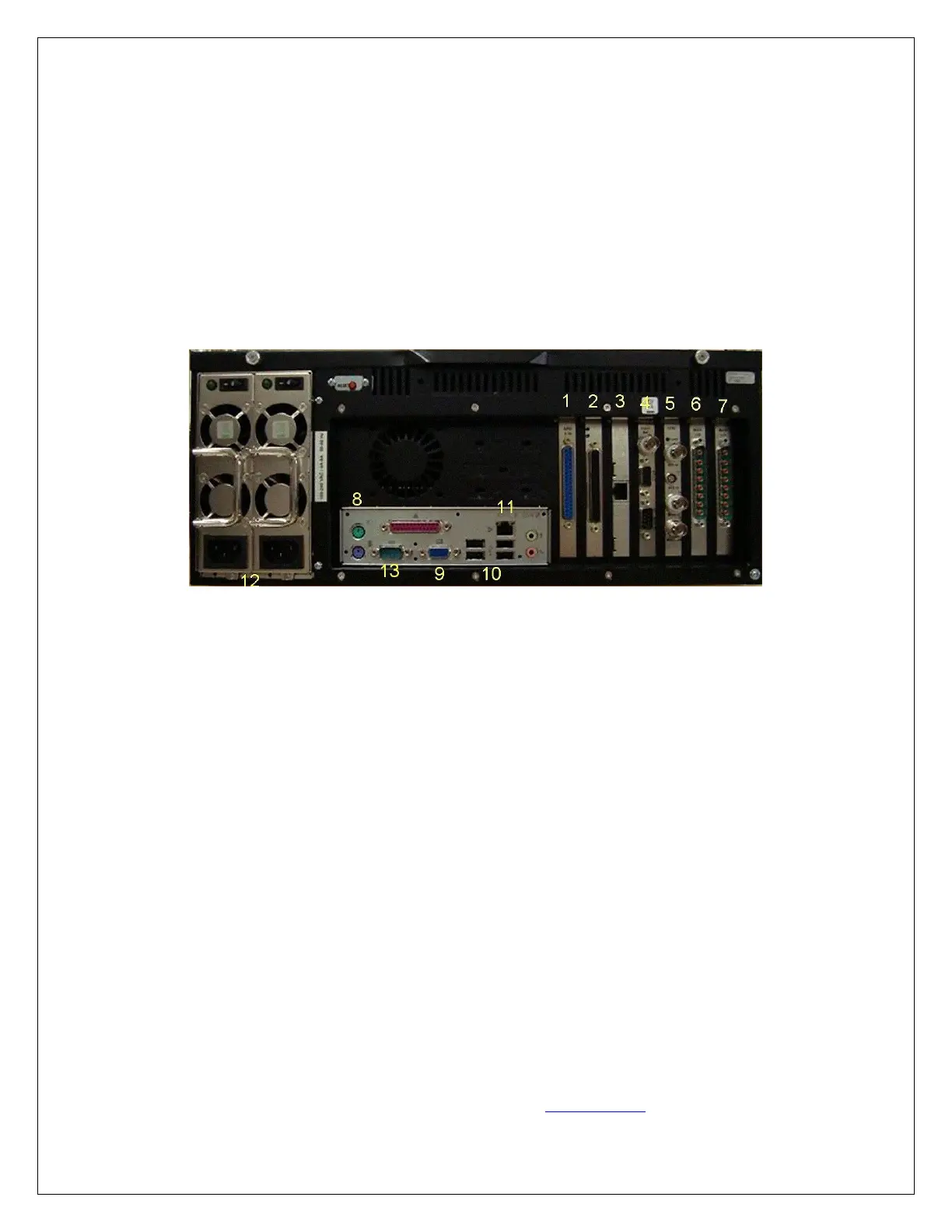

Rear Panel
1. TCC Main Port (DC-62): Connect TCC breakout cable (provided) to this port. This
cable breaks out to four DA-15 connectors that provide control hookup for the MC524
Monitor Interface and three ML530 Mic/Line Interfaces.
2. GPIO Port 1 (DC-37): GP Inputs and Outputs 1 to 16.
3. LAN Port 2 (Auxilary RJ45): Hybrid Network.
4. TT002 (75-ohm BNC, DE-9 female, DE-9 male): BNC port is for Bi/Tri-Level Video
input; DE-9 female is for RS422 (Sony 9-pin); DE-9 male is for Midi Machine Control
and Time Code I/O (via breakout cable).
5. Sync Card, AES and Word Clock
6. Optional DSP card, 4 MADI I/O
7. Optional Second DSP card 4 MADI I/O
8. Keyboard (PS/2): Main keyboard connection. Mouse (PS/2): Main trackball connection.
9. VGA Connector (DA-15): Main video monitor connection.
10. USB Ports: Connect the USB MIDI Interface to one of these ports. Connect a USB
memory device to one of these ports for file backup, application installations or updates.
11. LAN Port 1 (Onboard RJ45): Connect to S5 Network Switch via RJ45 (provided).
12. Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two auto
ranging switching supplies accept voltages between 100–240 VAC, 50–60 Hz.
13. Serial Port 1 (DE-9): Com1; currently not used. (Com2 is wired internally to the SNMP
board’s Com port.)
